Jura — The building of a boat, 1978

December 12, 1977 · Plates 01–04

Dear Bent;

LetterVictoria, B.C. · December 12, 1977

Bent Jesperson,

10001 Fifth St.,

Sidney, B.C.

Dear Bent;

Upon your request I have compiled the following list which should contain all phases that are required to construct the boat to a stage which should allow us to launch and complete the remaining work in the water at a later date.

I have arranged this list numerically simply because there are no specifications per se for the boat, and the "construction drawing" is for strip planking and unsuitable for us, as you know.

I based the construction list largely on your suggestions and on our previous discussions. The numbering also allows me to elaborate on a separate sheet the way I would lika a particular detail done.

If there is more expedient and better way to achieve the same result, or if there are any omissions, please fill in the gaps as needed.

Of course the numbering doesn't dictate in any way the construction sequence.

Merry Christmas

Kaspar Schibli

KS/pms

Enclosure

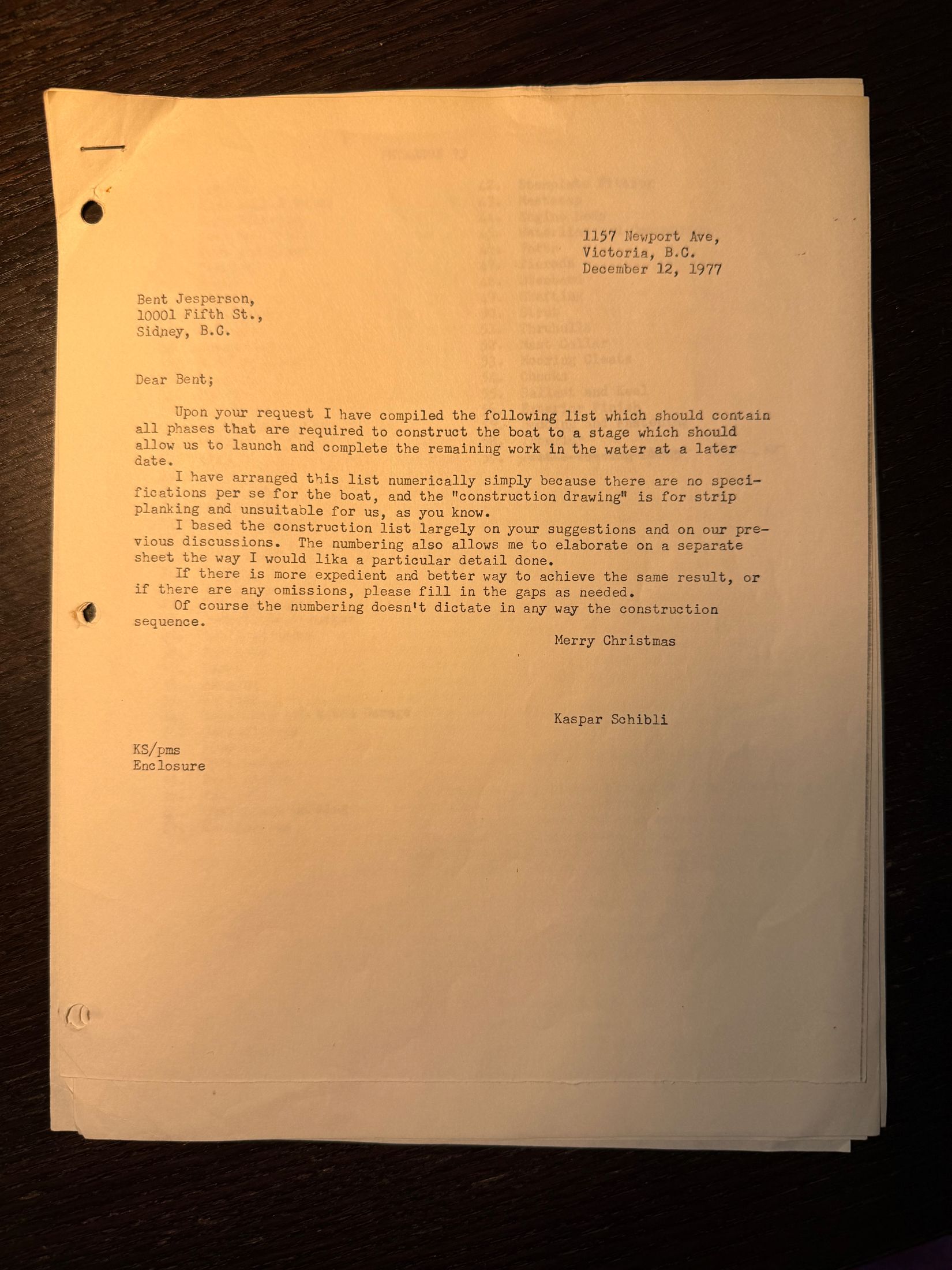

The typed letter of December 12, 1977, from Kaspar Schibli to Bent Jesperson — Plate 01

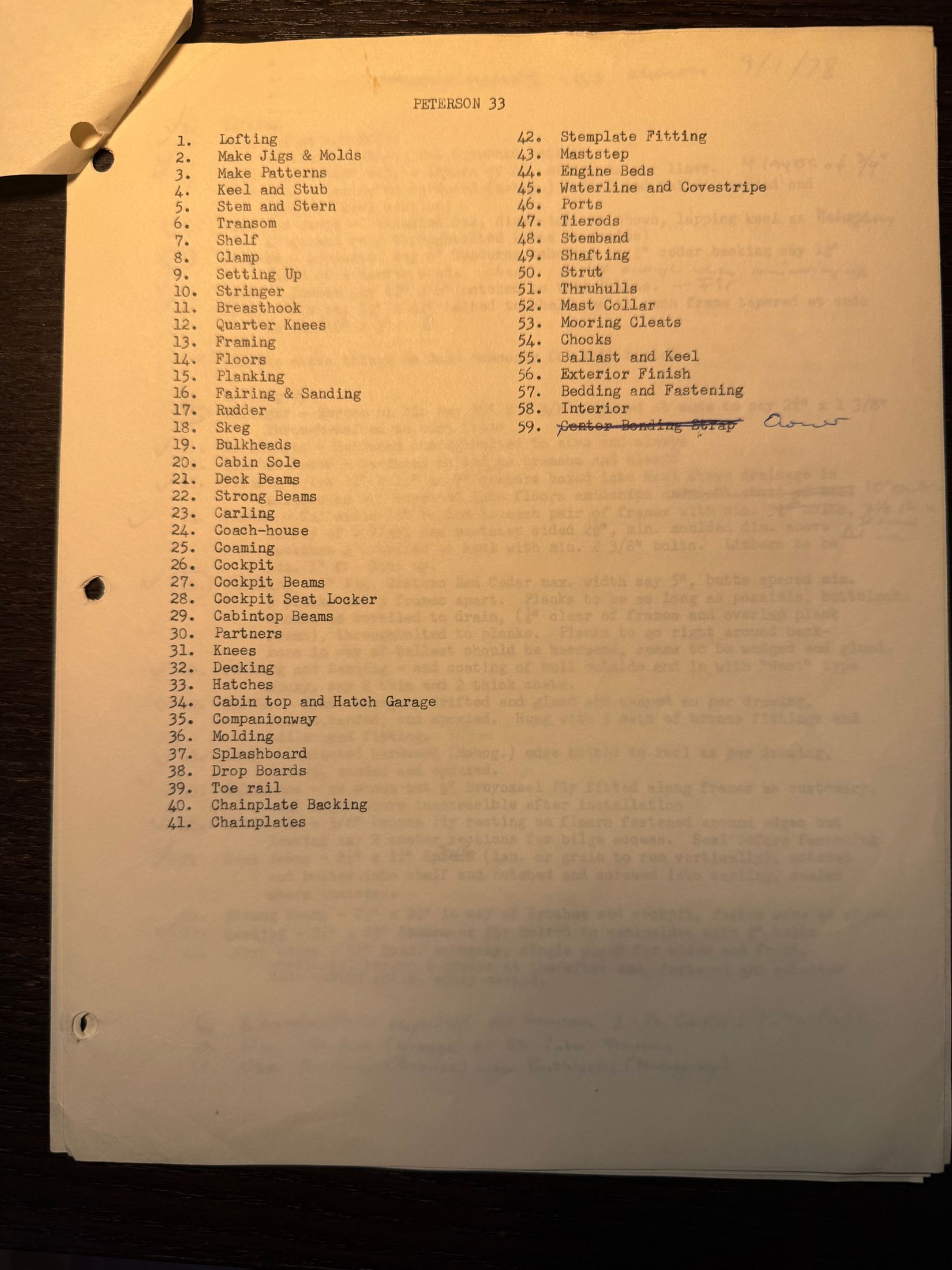

EnclosurePETERSON 33

1. Lofting

2. Make Jigs & Molds

3. Make Patterns

4. Keel and Stub

5. Stem and Stern

6. Transom

7. Shelf

8. Clamp

9. Setting Up

10. Stringer

11. Breasthook

12. Quarter Knees

13. Framing

14. Floors

15. Planking

16. Fairing & Sanding

17. Rudder

18. Skeg

19. Bulkheads

20. Cabin Sole

21. Deck Beams

22. Strong Beams

23. Carling

24. Coach-house

25. Coaming

26. Cockpit

27. Cockpit Beams

28. Cockpit Seat Locker

29. Cabintop Beams

30. Partners

31. Knees

32. Decking

33. Hatches

34. Cabin top and Hatch Garage

35. Companionway

36. Molding

37. Splashboard

38. Drop Boards

39. Toe rail

40. Chainplate Backing

41. Chainplates

42. Stemplate Fitting

43. Maststep

44. Engine Beds

45. Waterline and Covestripe

46. Ports

47. Tierods

48. Stemband

49. Shafting

50. Strut

51. Thruhulls

52. Mast Collar

53. Mooring Cleats

54. Chocks

55. Ballast and Keel

56. Exterior Finish

57. Bedding and Fastening

58. Interior

59. ~~Center Bonding Strap~~

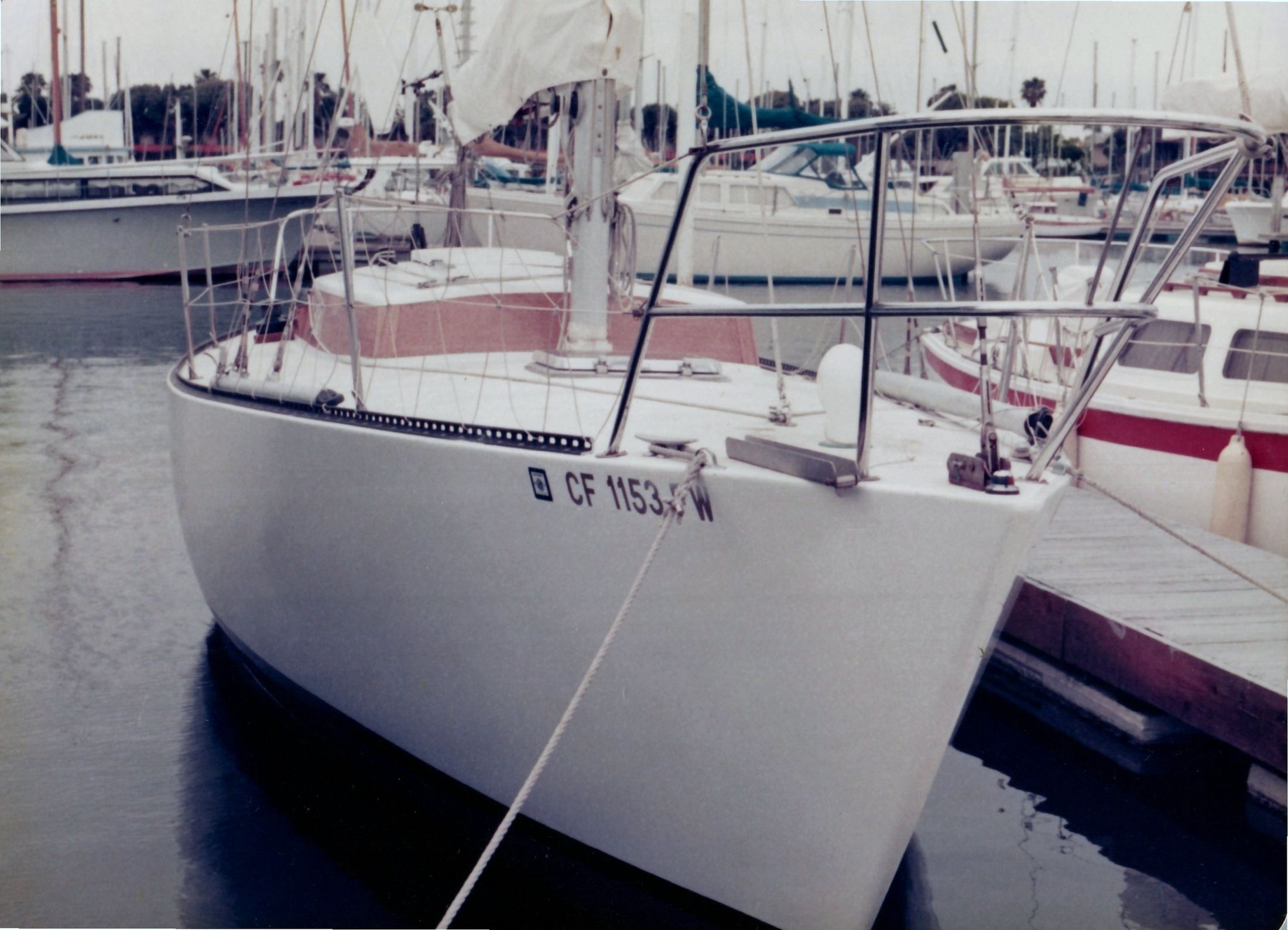

A Peterson 33 at a marina dock, bow on — Plate 03

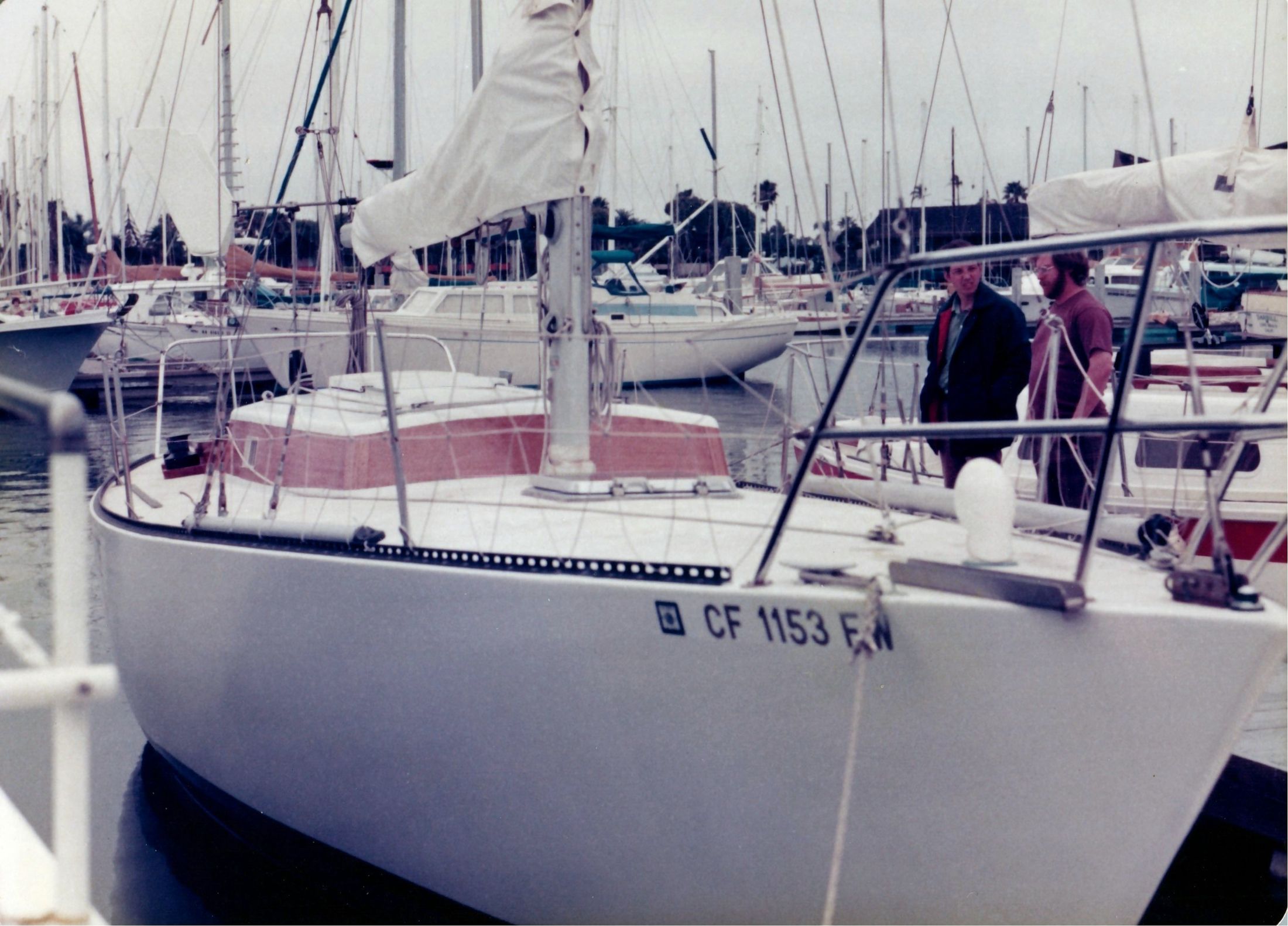

The same Peterson 33 from the dock, two men looking on from the foredeck — Plate 04

Items 1–9 · Plates 05–11

Lofting, jigs and molds

SpecificationAmendments as shown 9/1/78

✓ 1. Lofting

✓ 2. Making Jigs and Molds

✓ 3. Keel (Ballast) pattern and Stemband pattern

✓ 4. Keel - Laminated oak, 3 layers of 1", siding as per lines. in pencil: 4 layers of 3/4"

Stub Keel - Laminated hardwood (mahog.) bolted and faired, sanded and epoxied (keel section)

✓ 5. Stem and Stern - Laminated Oak, dimensions as shown, lapping keel as shown and well throughbolted (nuts on inside) in pencil: Mahogany

6. Transom - Laminated say ½" Honduras mahogany on ½" cedar backing say 1½" sided of a harder wood. in pencil: check if stiff enough when laminating up

✓ 7. Shelf - Spruce say 1¼" x 6" notched to take frames. in pencil: – Fir

✓ 8. Clamp - Fir say 1½" x 4¼" bolted to shelf and to each frame tapered at ends to say 1½" x 3".

✓ Can the above things be done commonly for both boats?

9. Setting Up

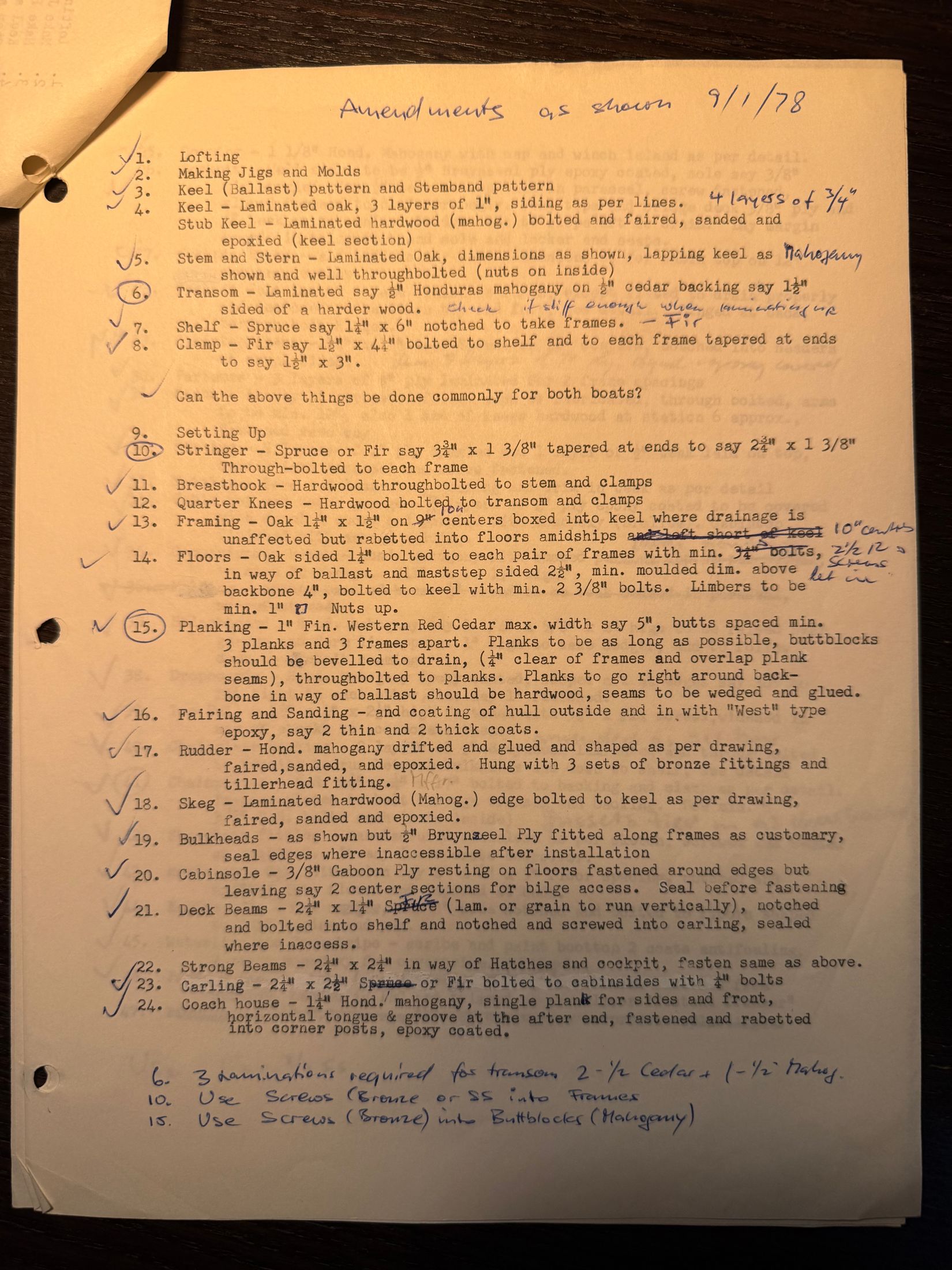

Specification page 1 with pencil check marks and the note Amendments as shown 9/1/78 — Plate 05

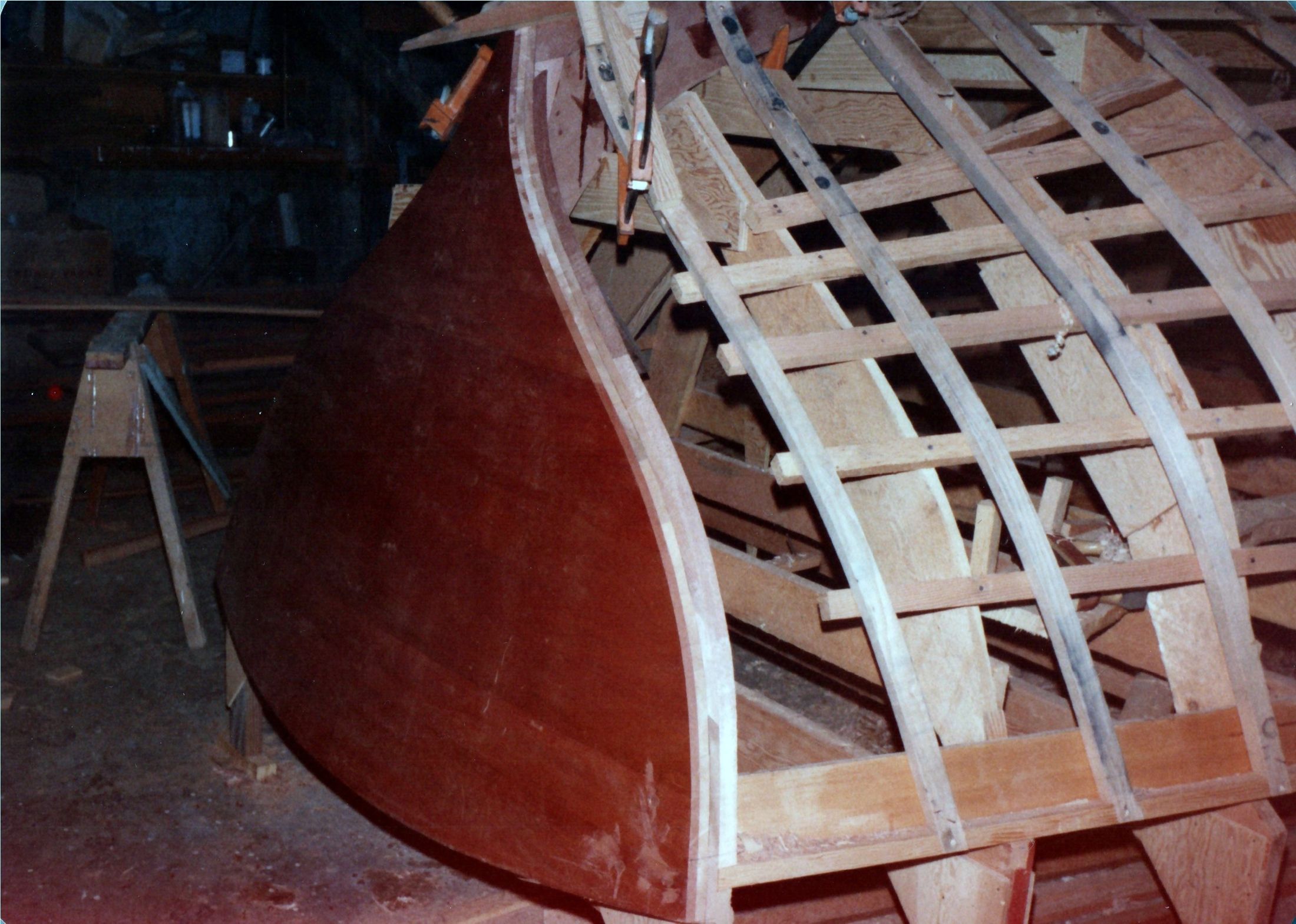

A dark red plywood pattern standing on the shop floor beside the molds — Plate 06

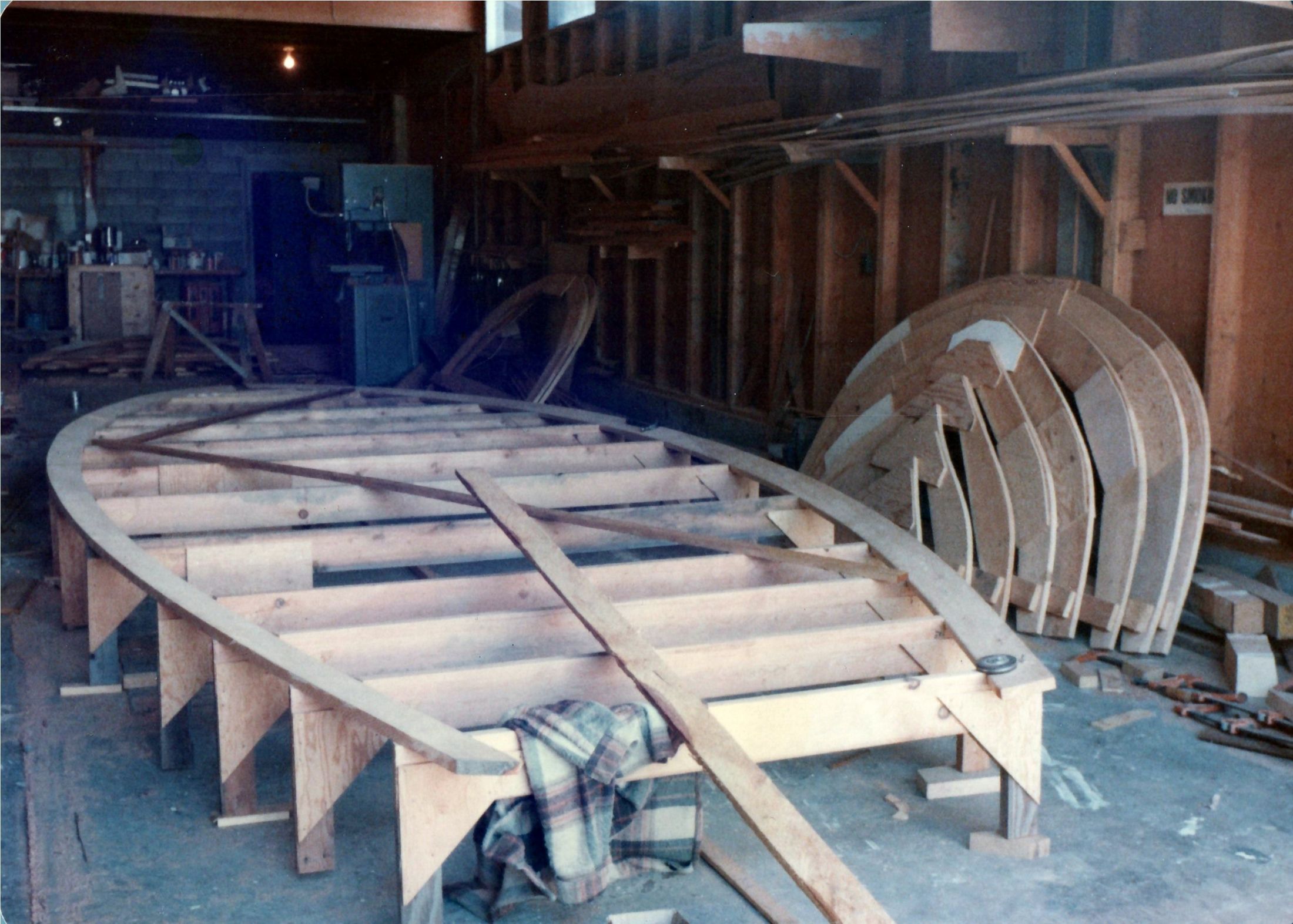

The strongback with the station molds set up along it, upside down — Plate 07

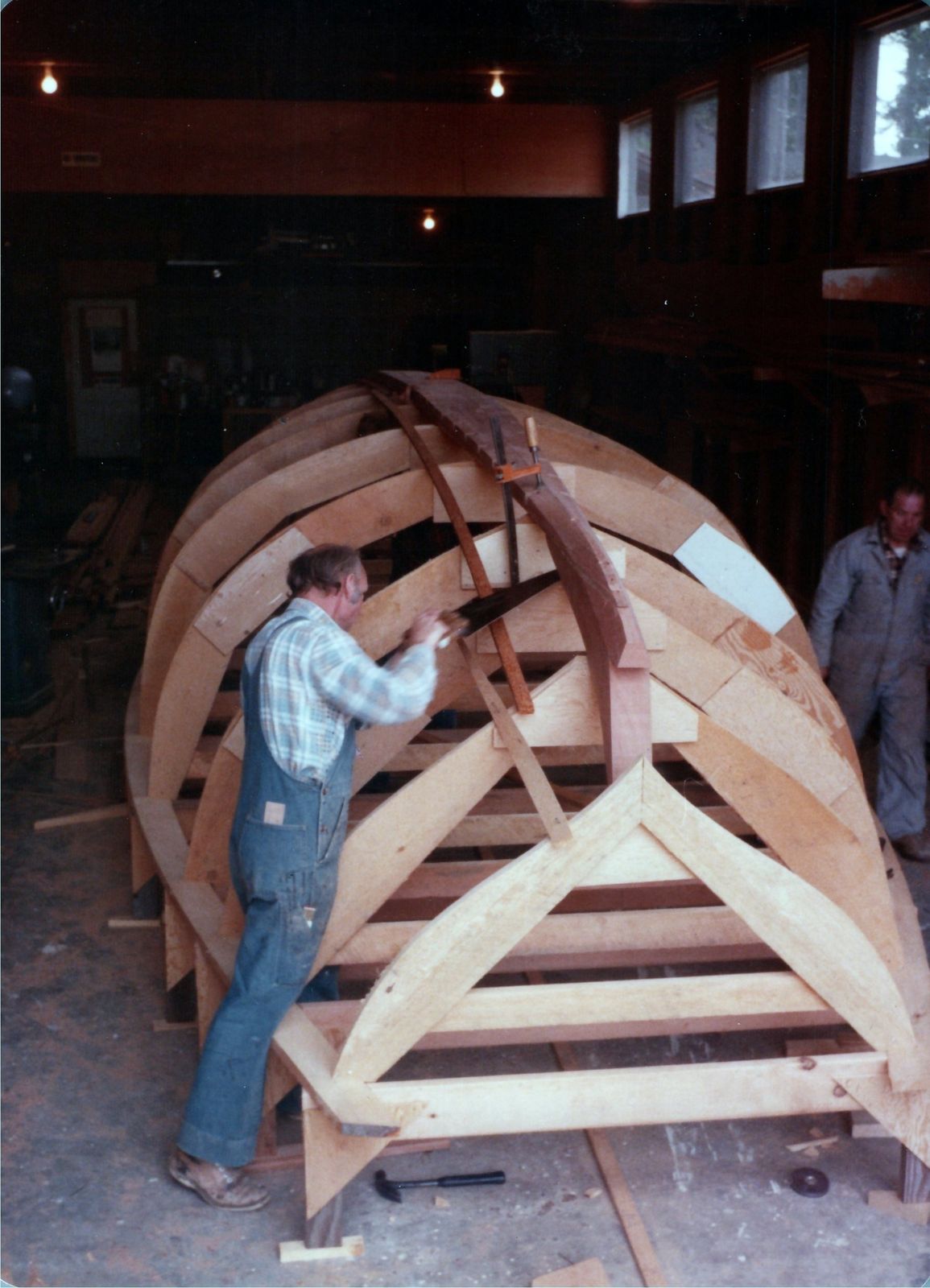

A man fitting a mold at the forward end of the jig — Plate 08

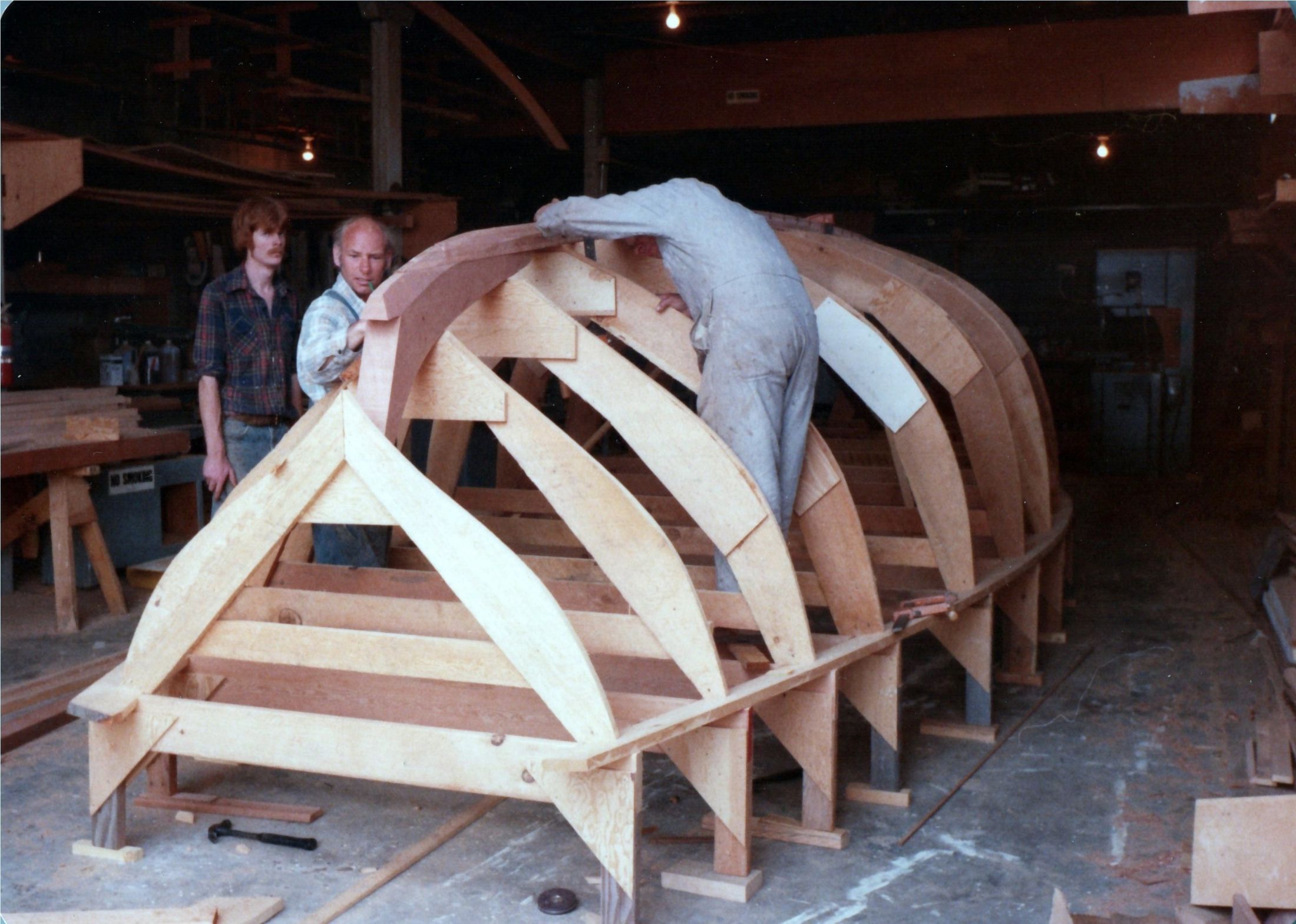

Three men at the molds, one leaning over the top of the jig — Plate 09

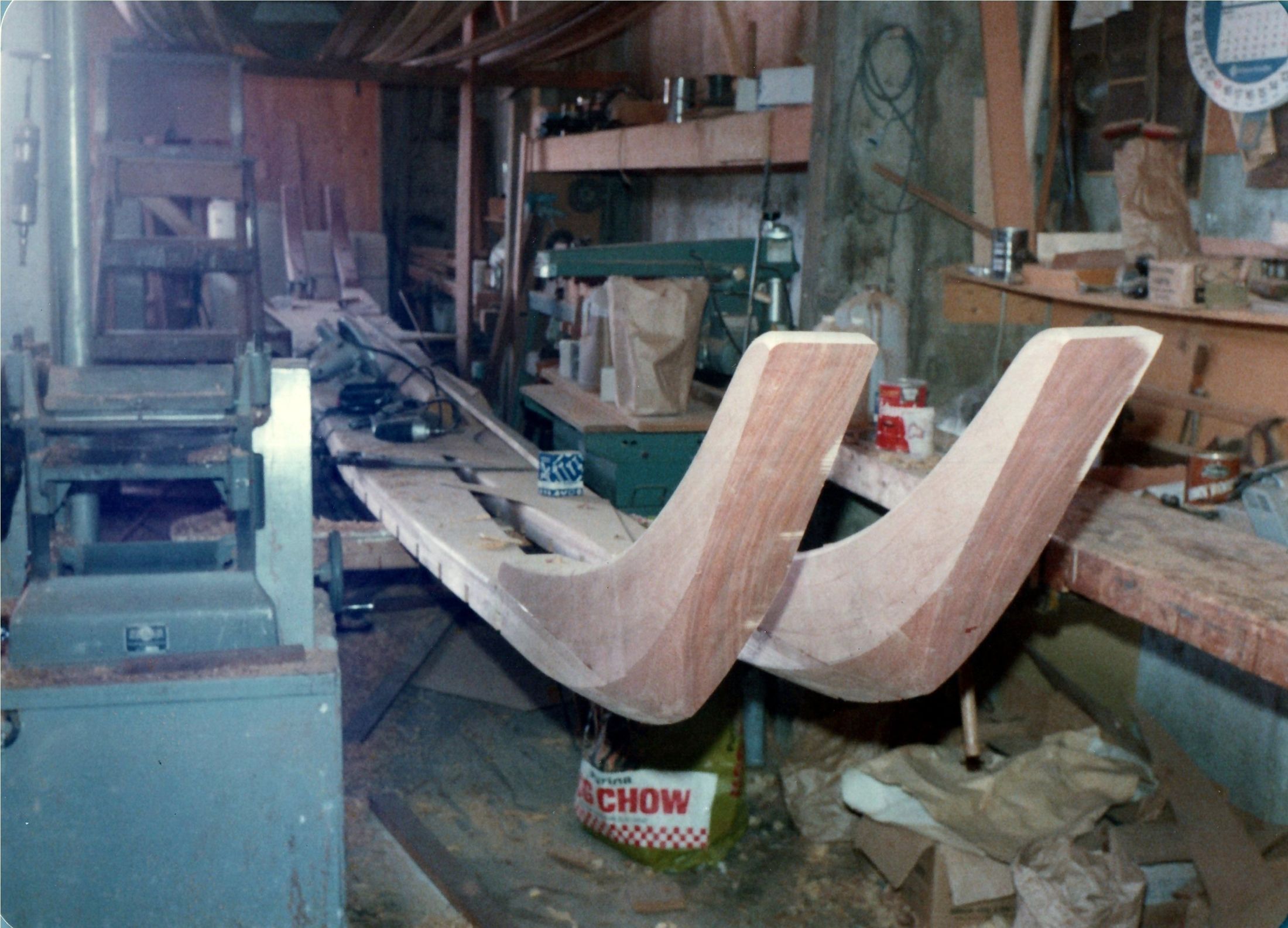

Laminated curved timbers on the bench, the bandsaw behind — Plate 10

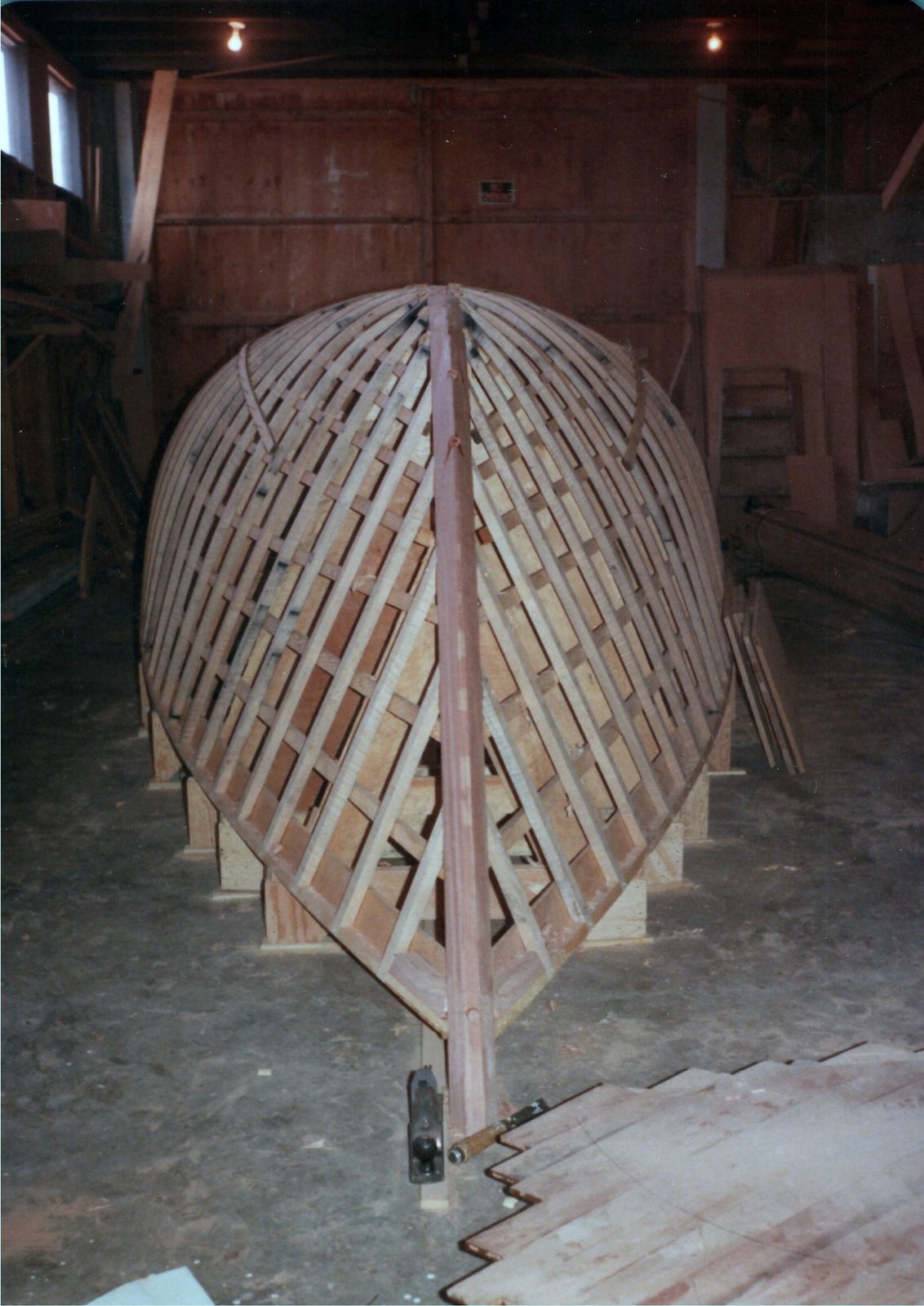

The molds from the bow, the shop lamps above — Plate 11

Items 10–14 · Plates 12–16

Stringers, framing, floors

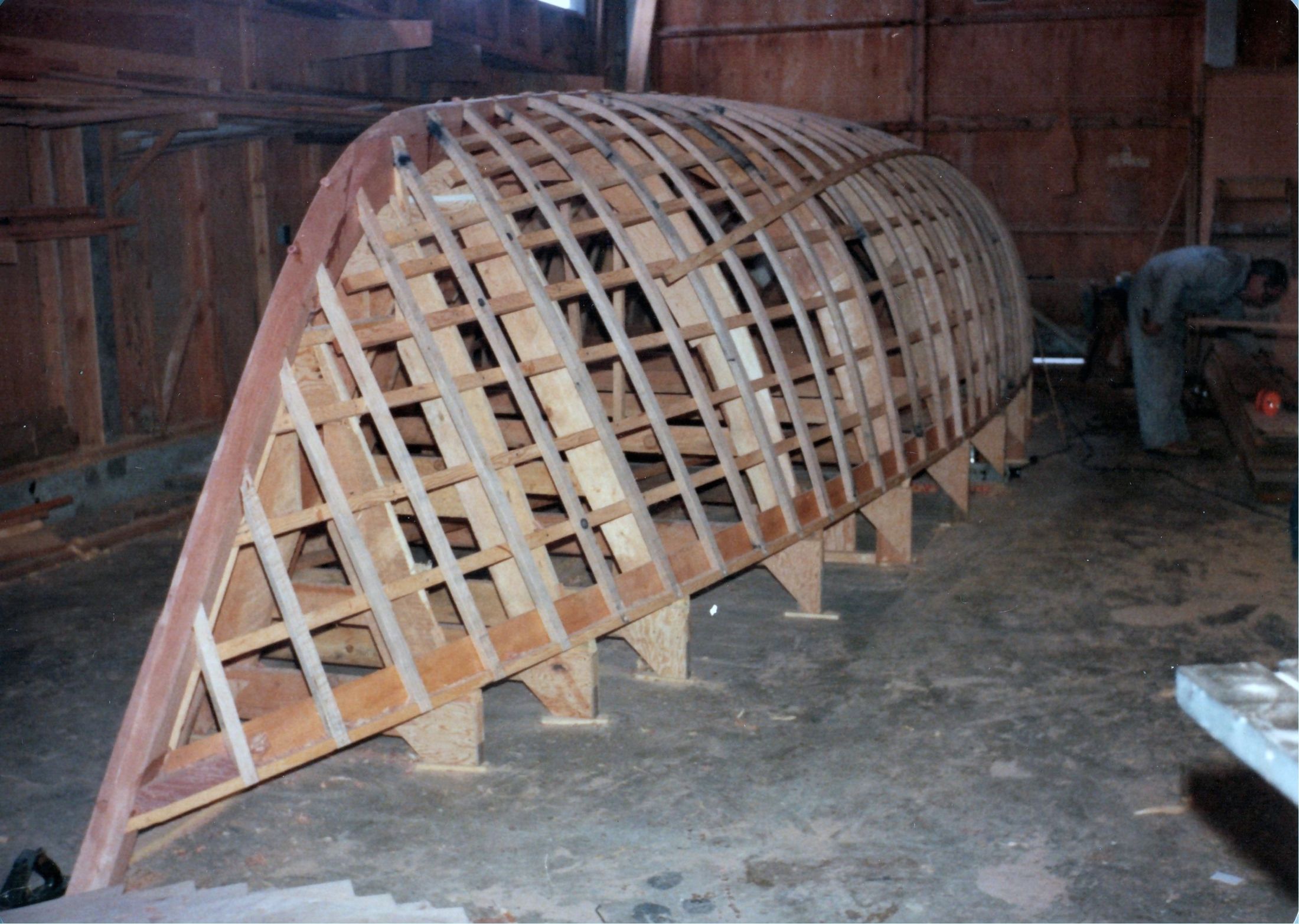

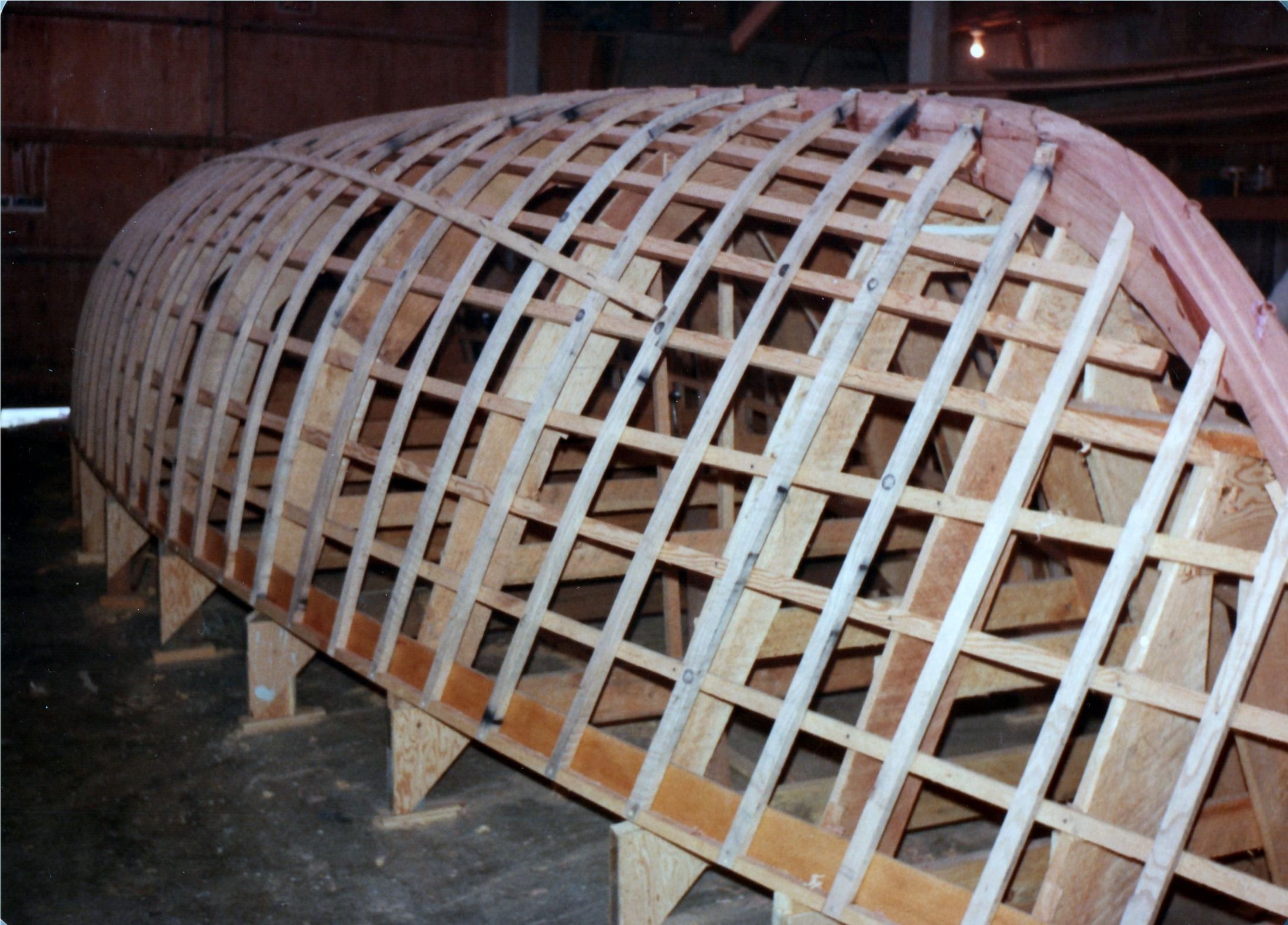

The framed hull upside down, stringers running the length of the molds — Plate 12

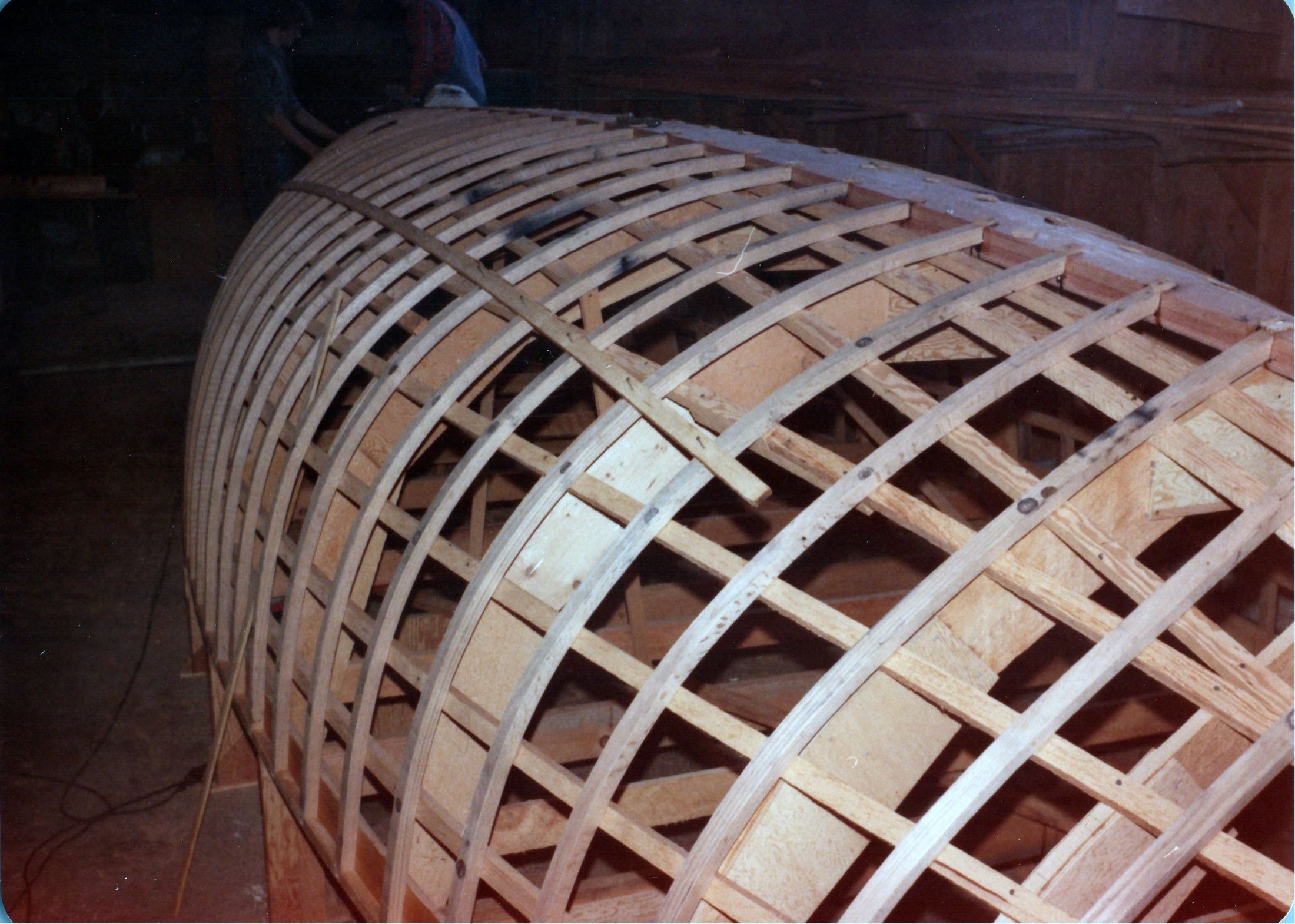

The framed hull from the stern, the transom at the top — Plate 13

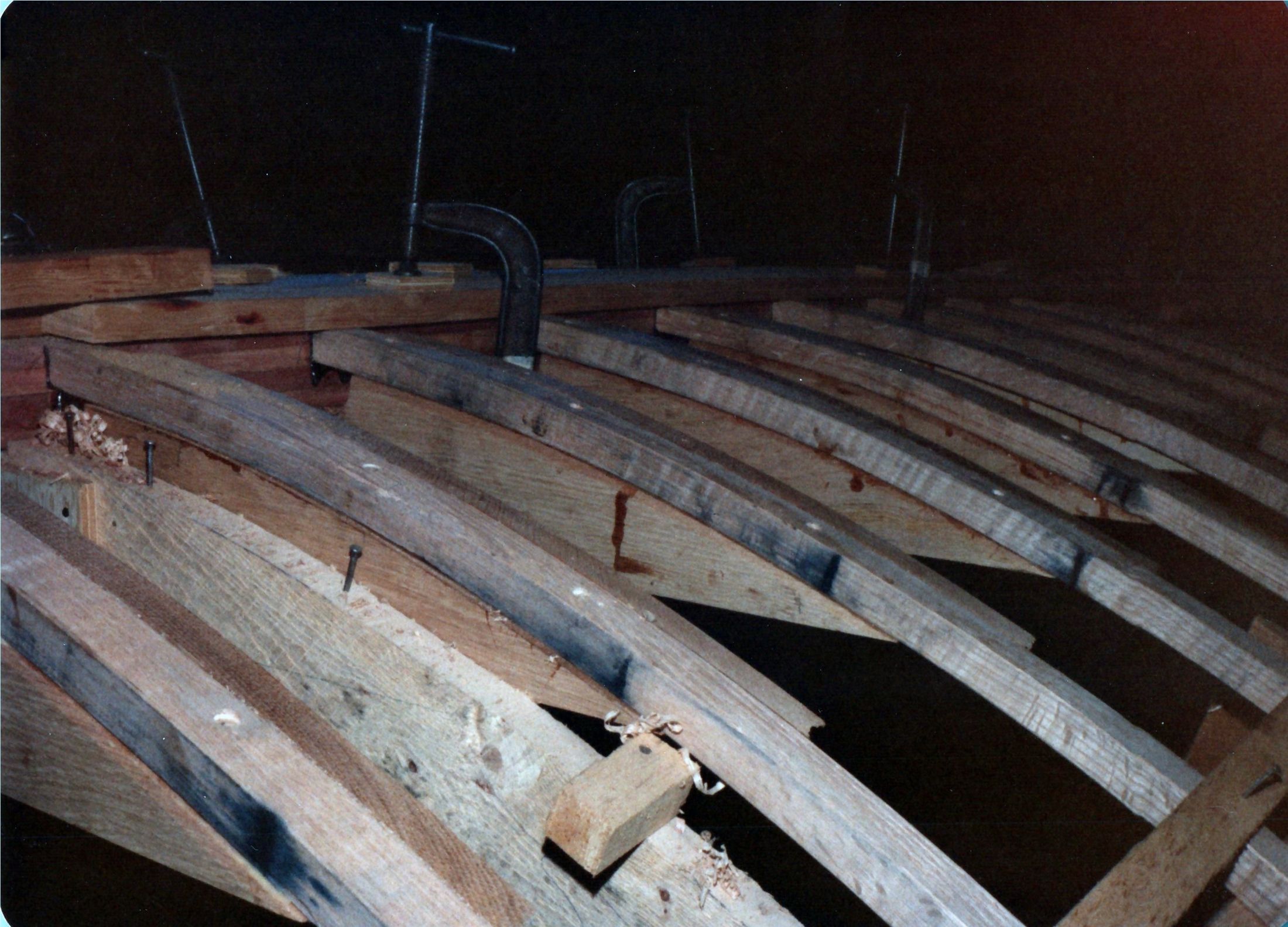

Close view of the stringers and frames across the turn of the bilge — Plate 14

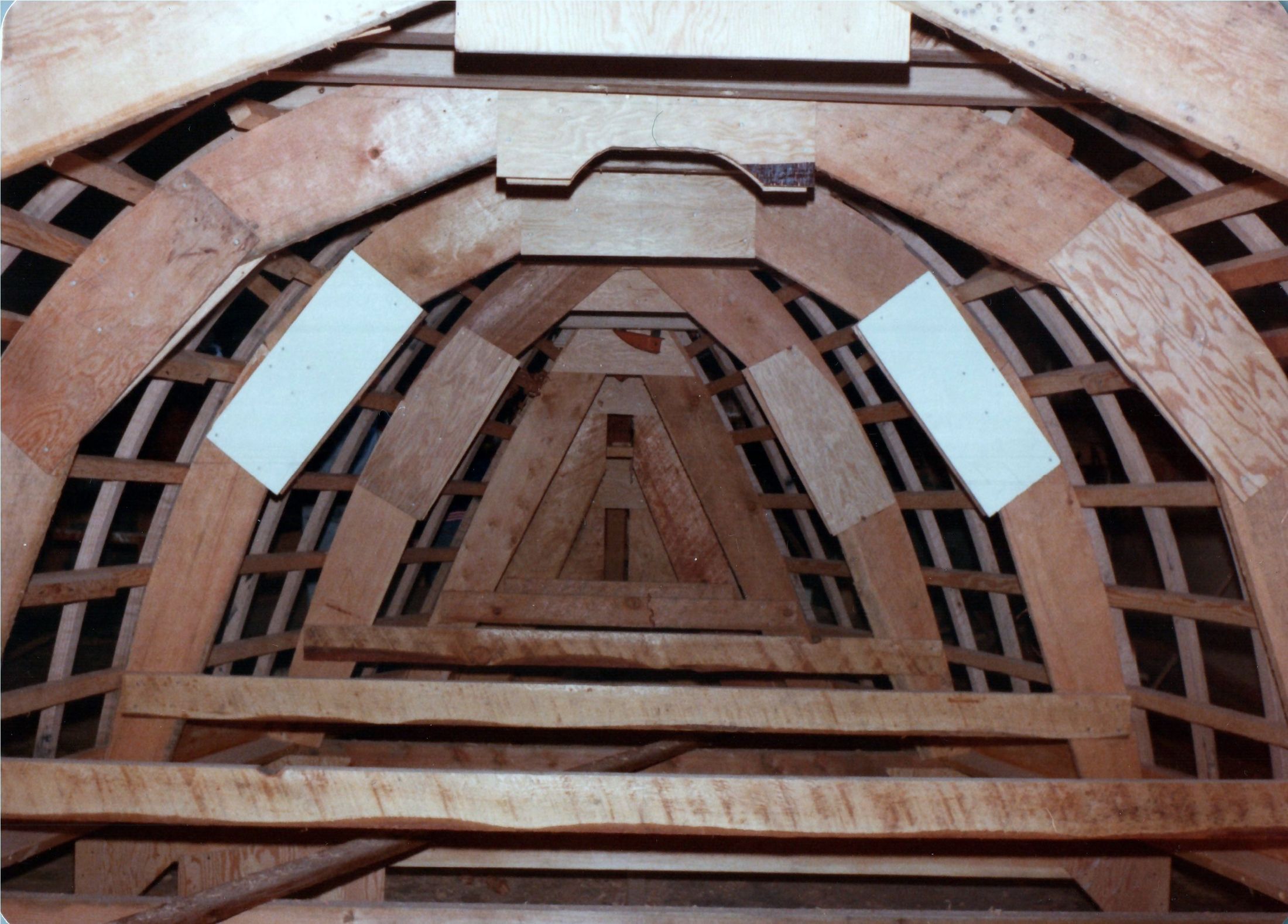

Inside the frames at the stem, two pale plywood gussets — Plate 15

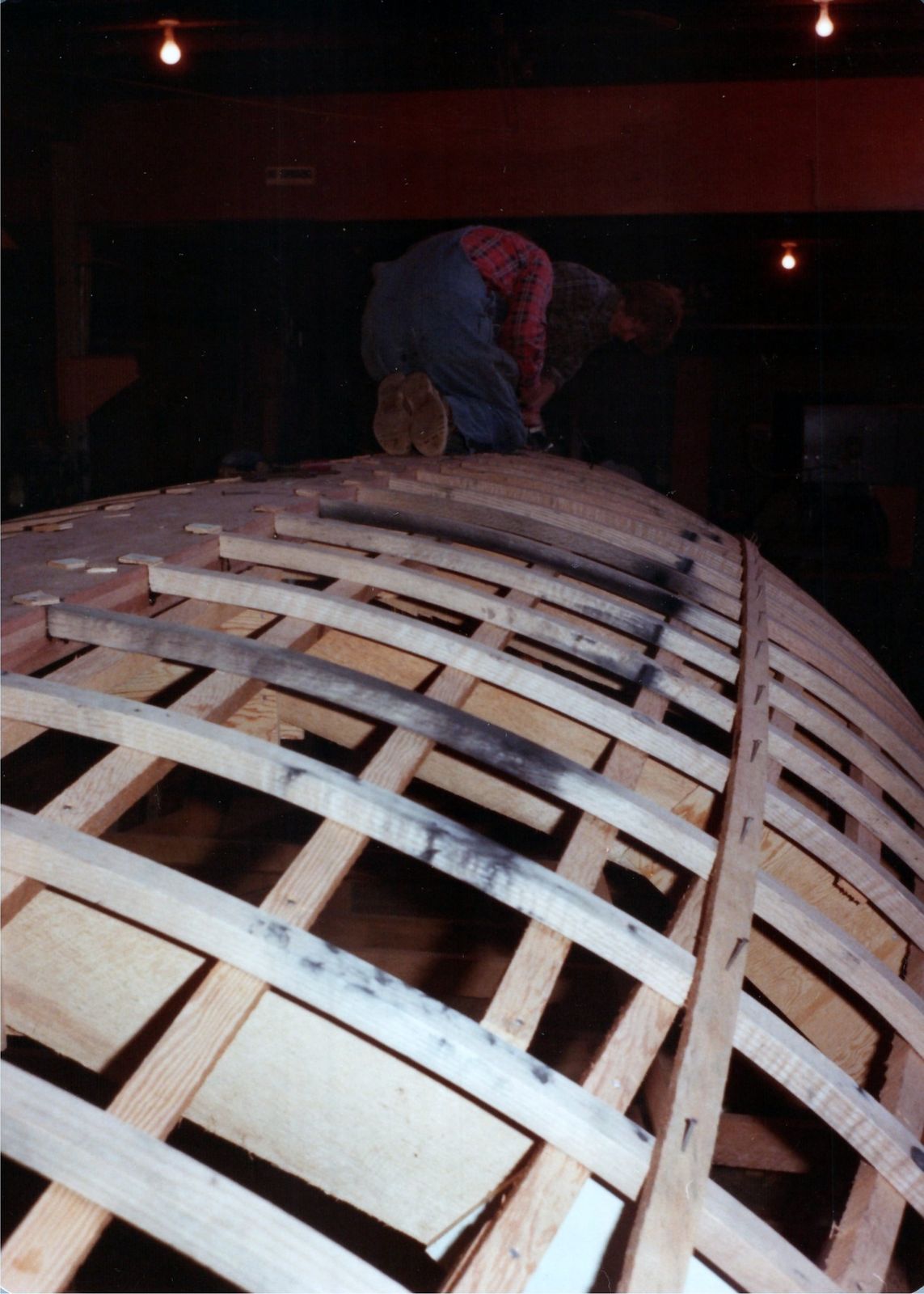

A man working at the after end of the frames — Plate 16

Item 15 · Plates 17–28

Planking

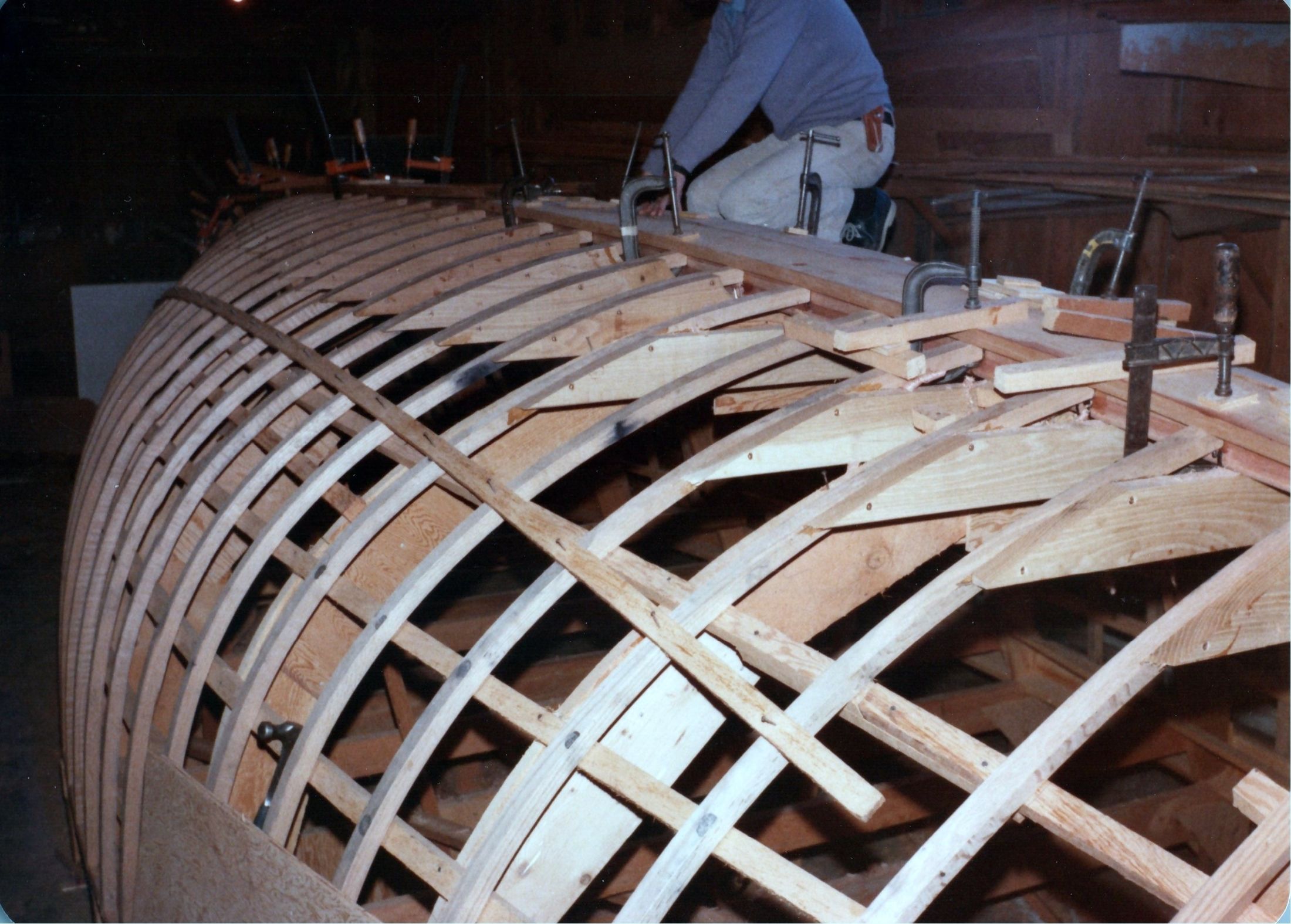

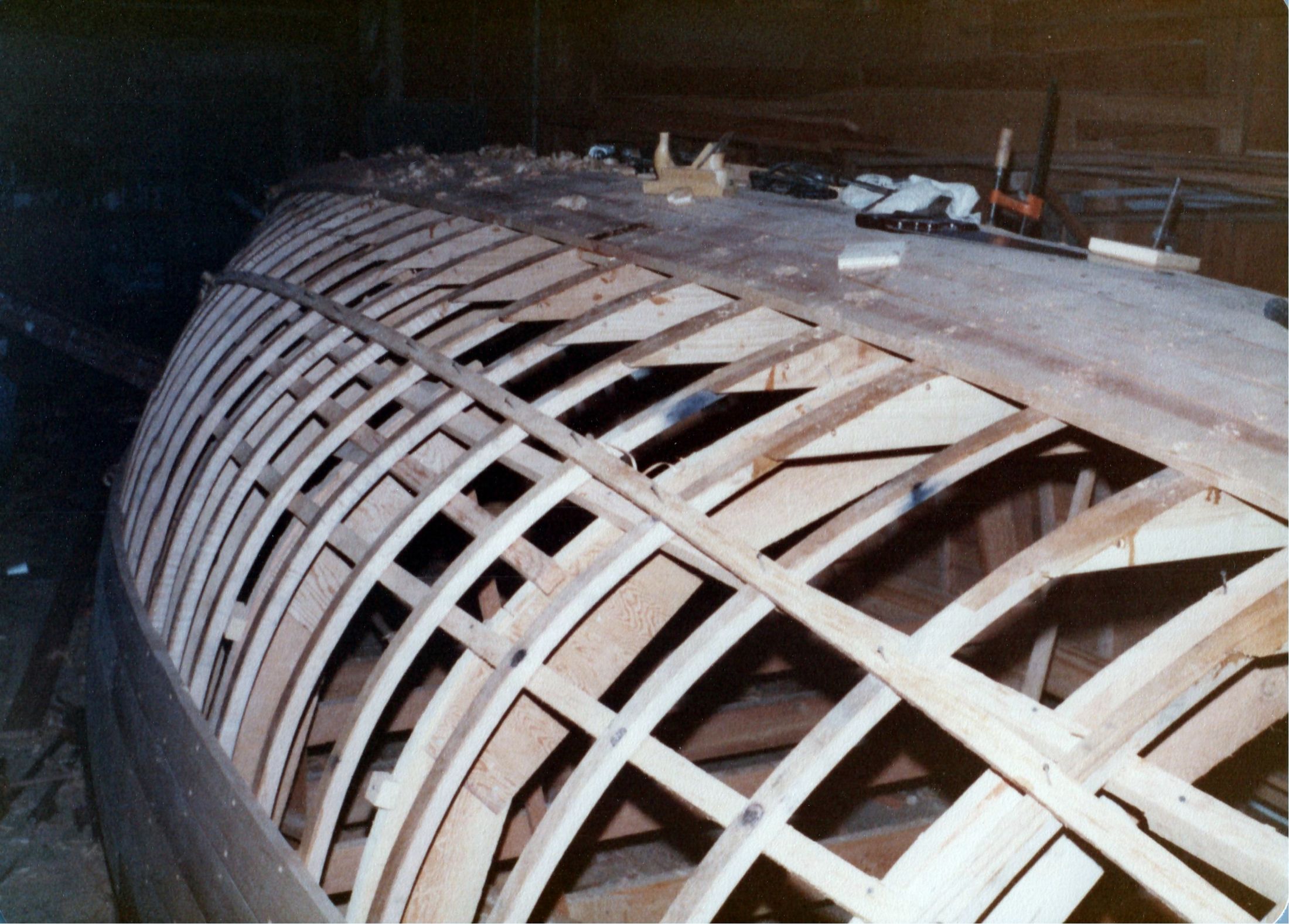

The first planks clamped along the sheer, a man working above — Plate 17

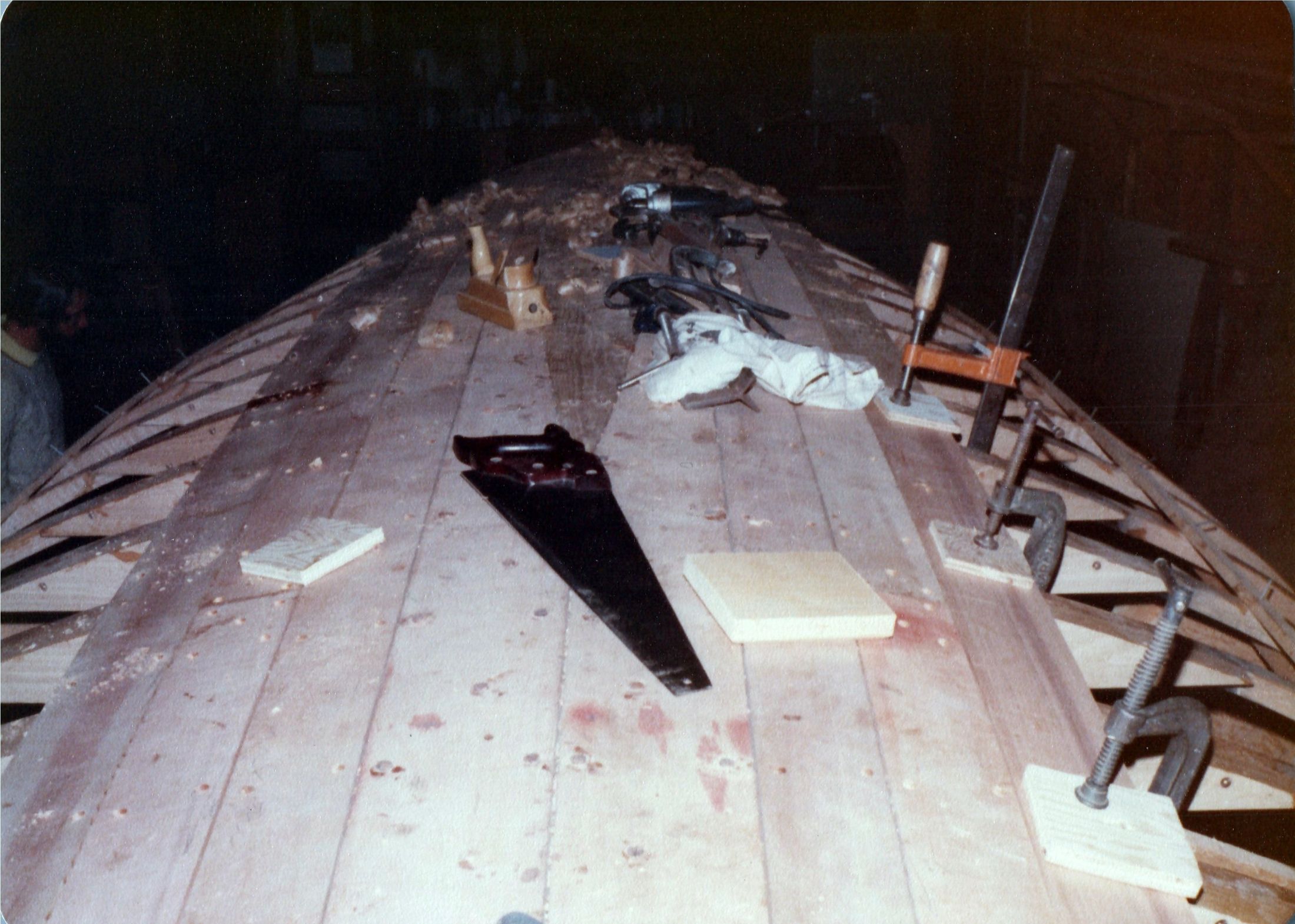

Planks and clamps at the after end of the hull — Plate 19

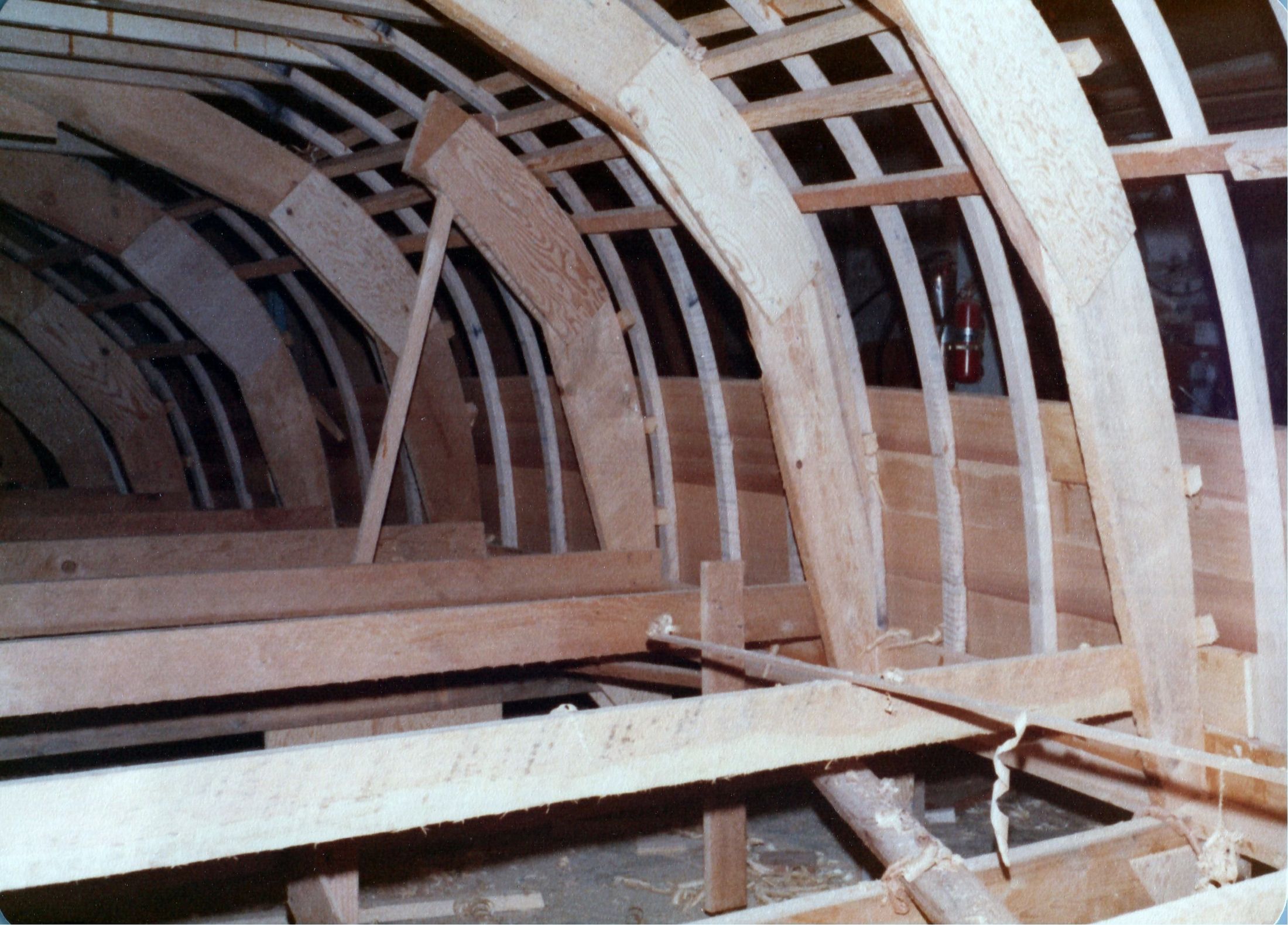

Inside the hull: frames, stringers and the backs of the first planks — Plate 20

West Coast Lumber for Boat BuildingFlounder Bay Boat Shop

WESTERN RED CEDAR — Thuja Plicata

Those in the east will recognize the first name as being the same as that for their Northern White Cedar, Thuja occidentalis. Red Cedar is commonly used for strip planking, cold mold laminating, small boat planking and thwarts. It is highly rot resistant because of the toxic resins and oils in the wood. These oils give the wood its distinctive fragrance. Red cedar crooks can be very dense and rock hard, and may be used for natural knees in small boats.

Knots and Pitch

Knots in the old growth cedar are generally loose or rotten. This is because the trees grow so close together that the lower limbs die for lack of sunlight, then hang on while the rest of the tree grows around them. The dead limbs make for loose, unsound knots. Pitch pockets are practically absent in red cedar.

Sapwood

Sapwood in red cedar is a very light creamy color and easy to distinguish. It also tends to be the most fragrant part of the tree. There is often a dark line between the sapwood and the heart.

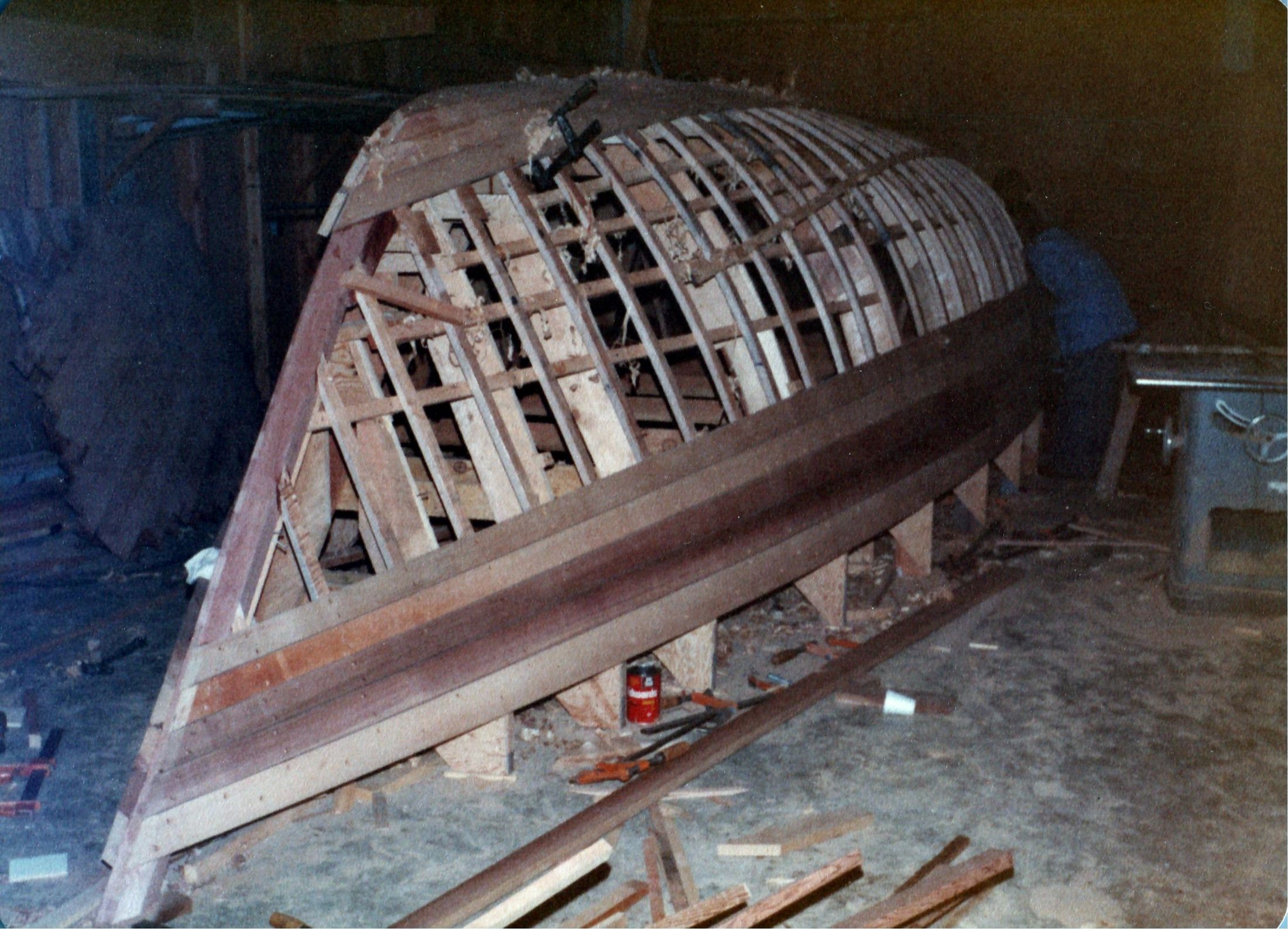

The hull half planked, the bare stringers still showing at the keel — Plate 21

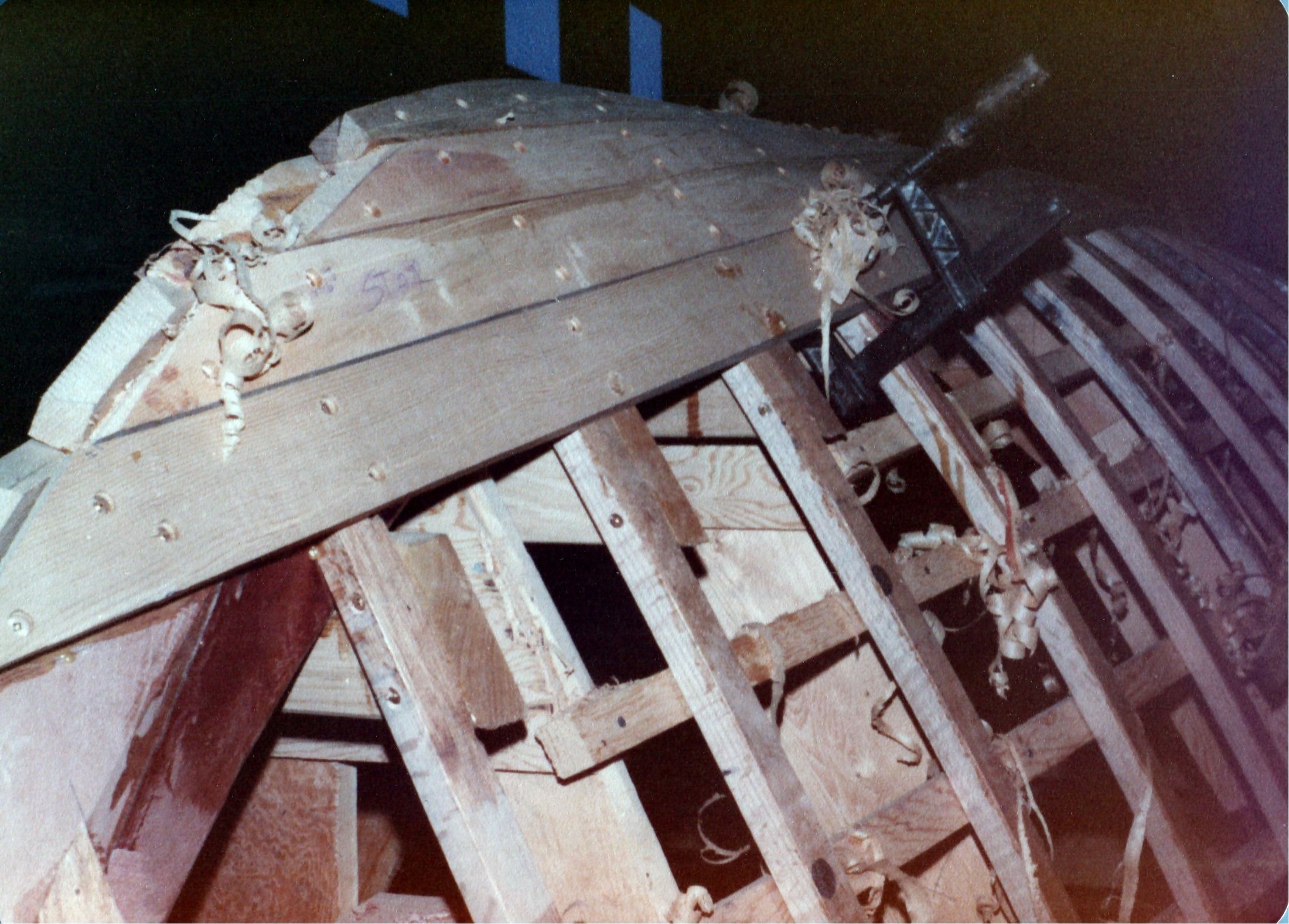

Planks going on at the bow, clamps and shavings — Plate 22

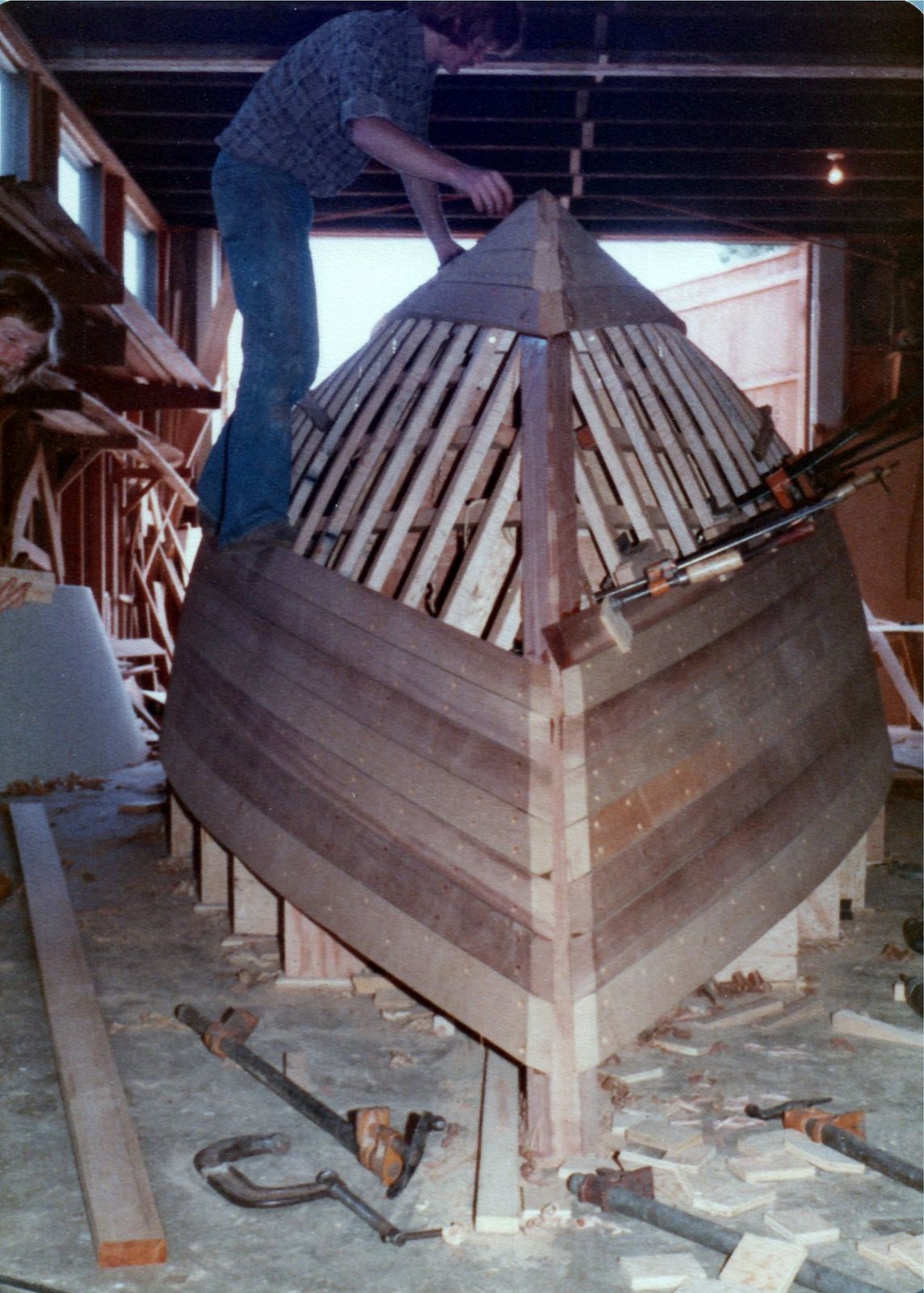

The planked bow from ahead, a man working on top — Plate 23

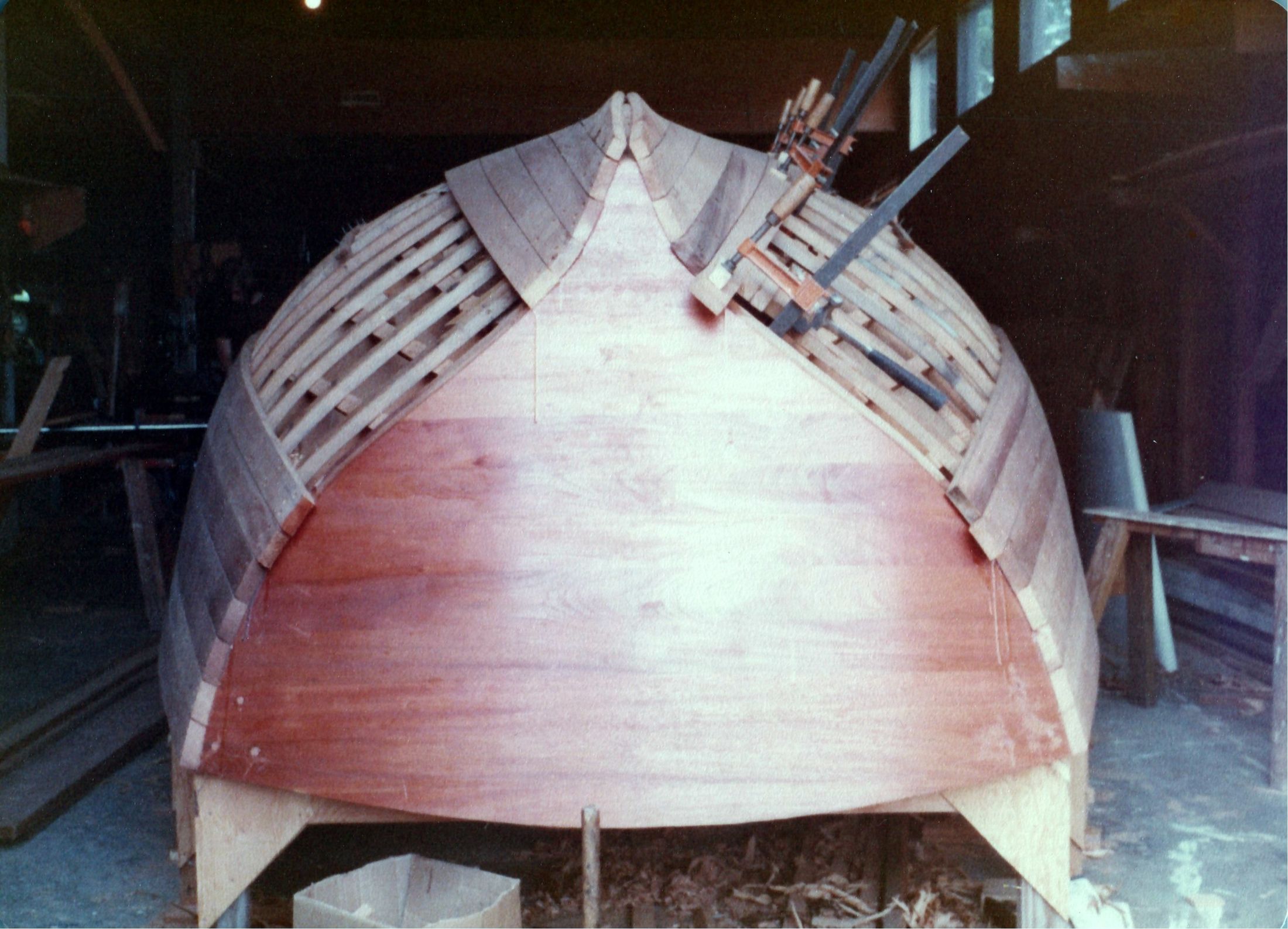

The planked hull from the bow, the keel line still open — Plate 24

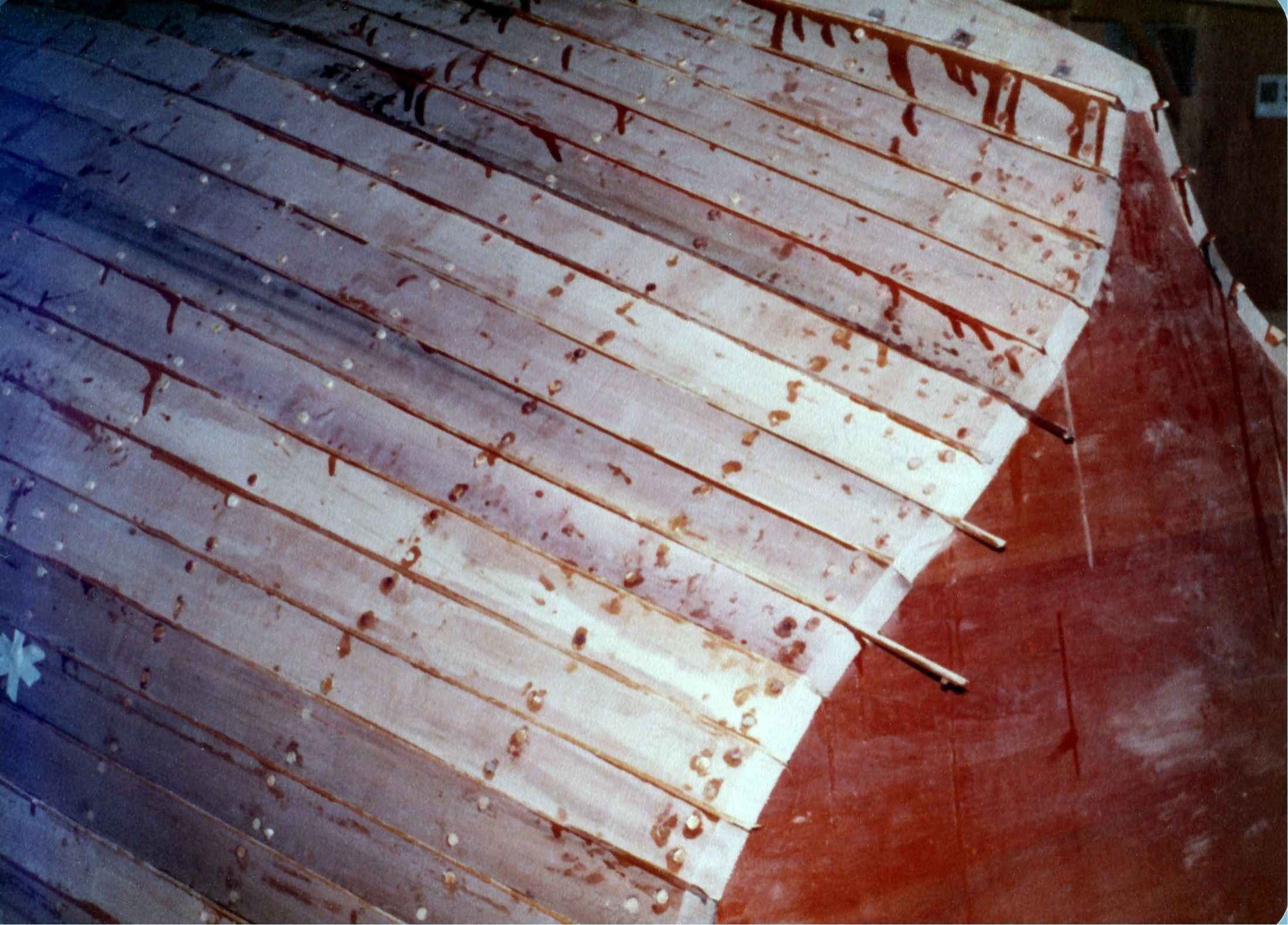

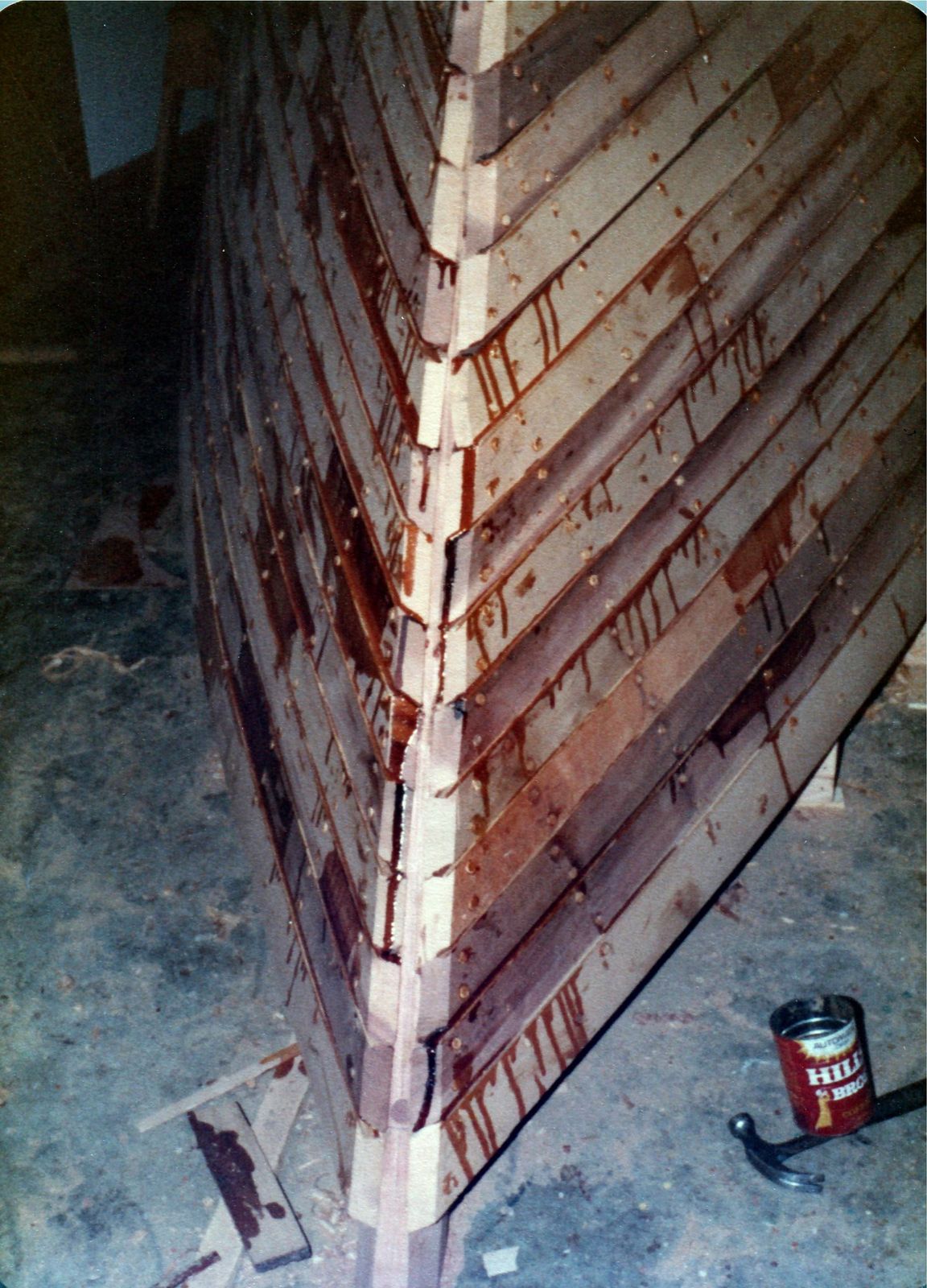

Close view of the planking at the bow, fastenings in rows — Plate 25

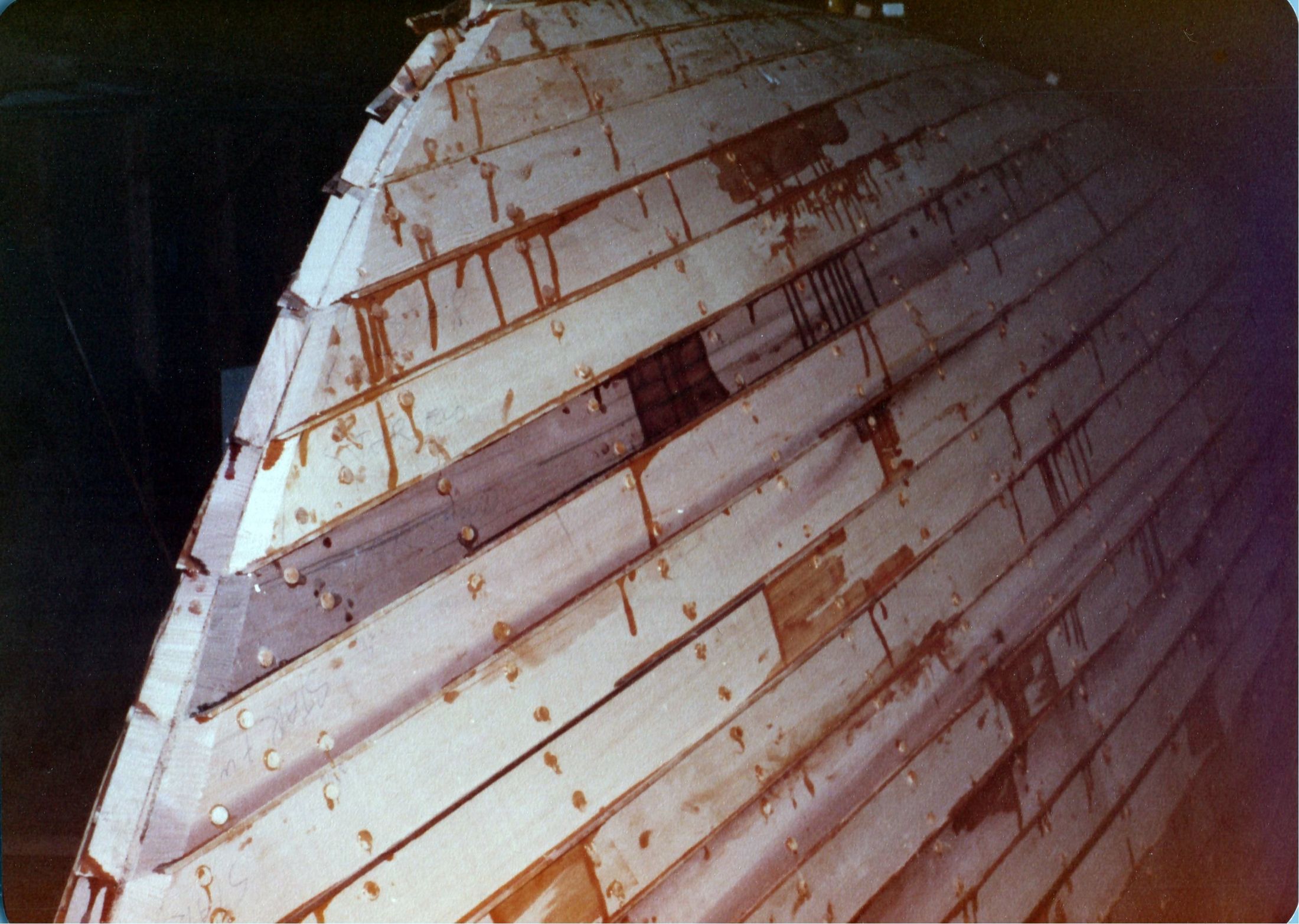

The planked hull with butt blocks and fastening lines, glue squeezed from the seams — Plate 26

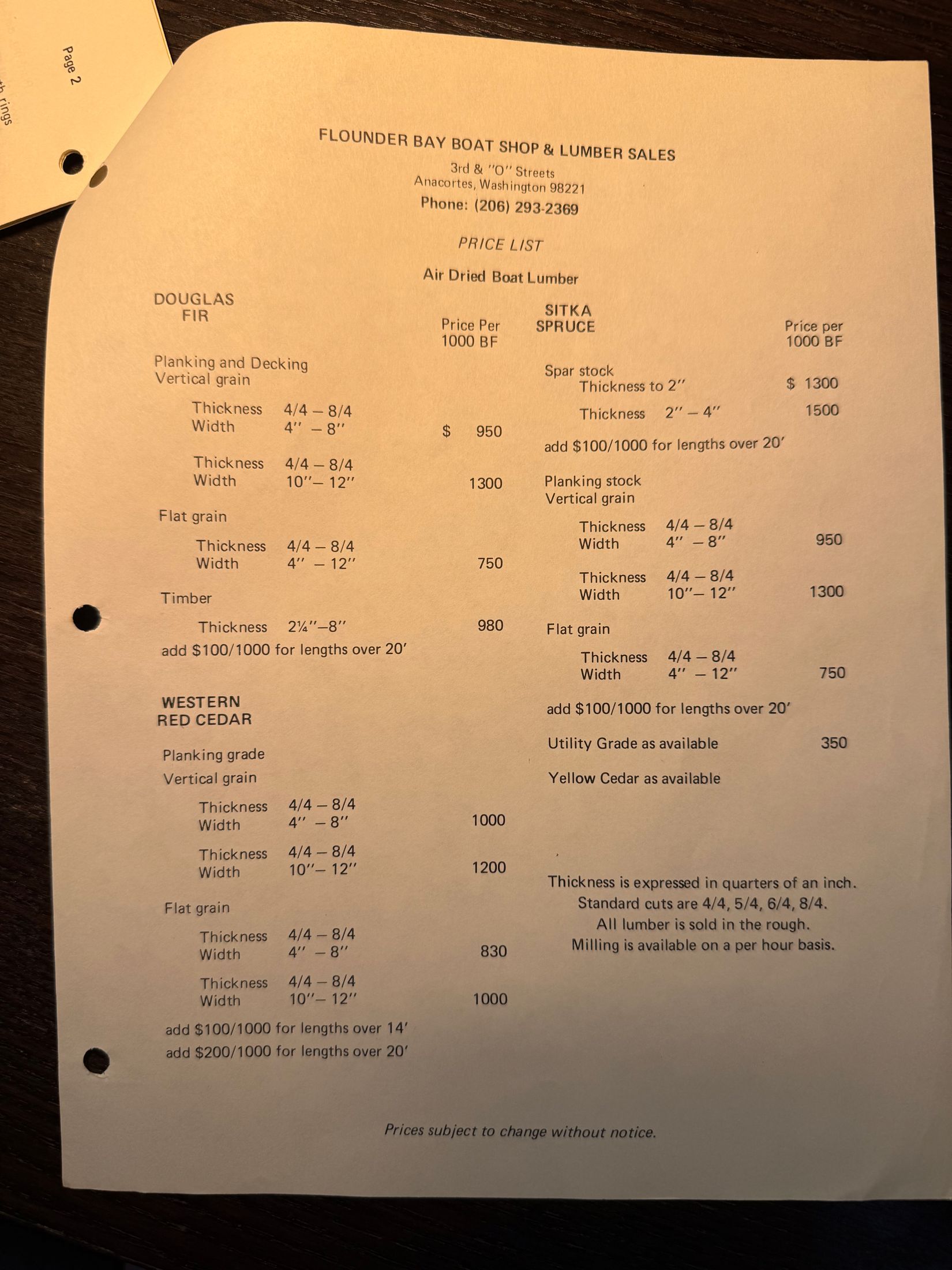

Flounder Bay Boat Shop price list for air dried boat lumber — Plate 28

Price listFlounder Bay Boat Shop, Anacortes

Air Dried Boat Lumber — Price Per 1000 BF

DOUGLAS FIR

Planking and Decking, Vertical grain: Thickness 4/4 – 8/4, Width 4" – 8" … $ 950; Thickness 4/4 – 8/4, Width 10" – 12" … 1300

Flat grain: Thickness 4/4 – 8/4, Width 4" – 12" … 750

Timber: Thickness 2¼" – 8" … 980; add $100/1000 for lengths over 20'

WESTERN RED CEDAR

Planking grade, Vertical grain: Thickness 4/4 – 8/4, Width 4" – 8" … 1000; Thickness 4/4 – 8/4, Width 10" – 12" … 1200

Flat grain: Thickness 4/4 – 8/4, Width 4" – 8" … 830; Thickness 4/4 – 8/4, Width 10" – 12" … 1000

add $100/1000 for lengths over 14'; add $200/1000 for lengths over 20'

SITKA SPRUCE

Spar stock: Thickness to 2" … $ 1300; Thickness 2" – 4" … 1500; add $100/1000 for lengths over 20'

Planking stock, Vertical grain: Thickness 4/4 – 8/4, Width 4" – 8" … 950; Thickness 4/4 – 8/4, Width 10" – 12" … 1300

Flat grain: Thickness 4/4 – 8/4, Width 4" – 12" … 750; add $100/1000 for lengths over 20'

Utility Grade as available … 350

Yellow Cedar as available

Thickness is expressed in quarters of an inch. Standard cuts are 4/4, 5/4, 6/4, 8/4. All lumber is sold in the rough. Milling is available on a per hour basis.

Prices subject to change without notice.

Items 16–18 · Plates 29–36

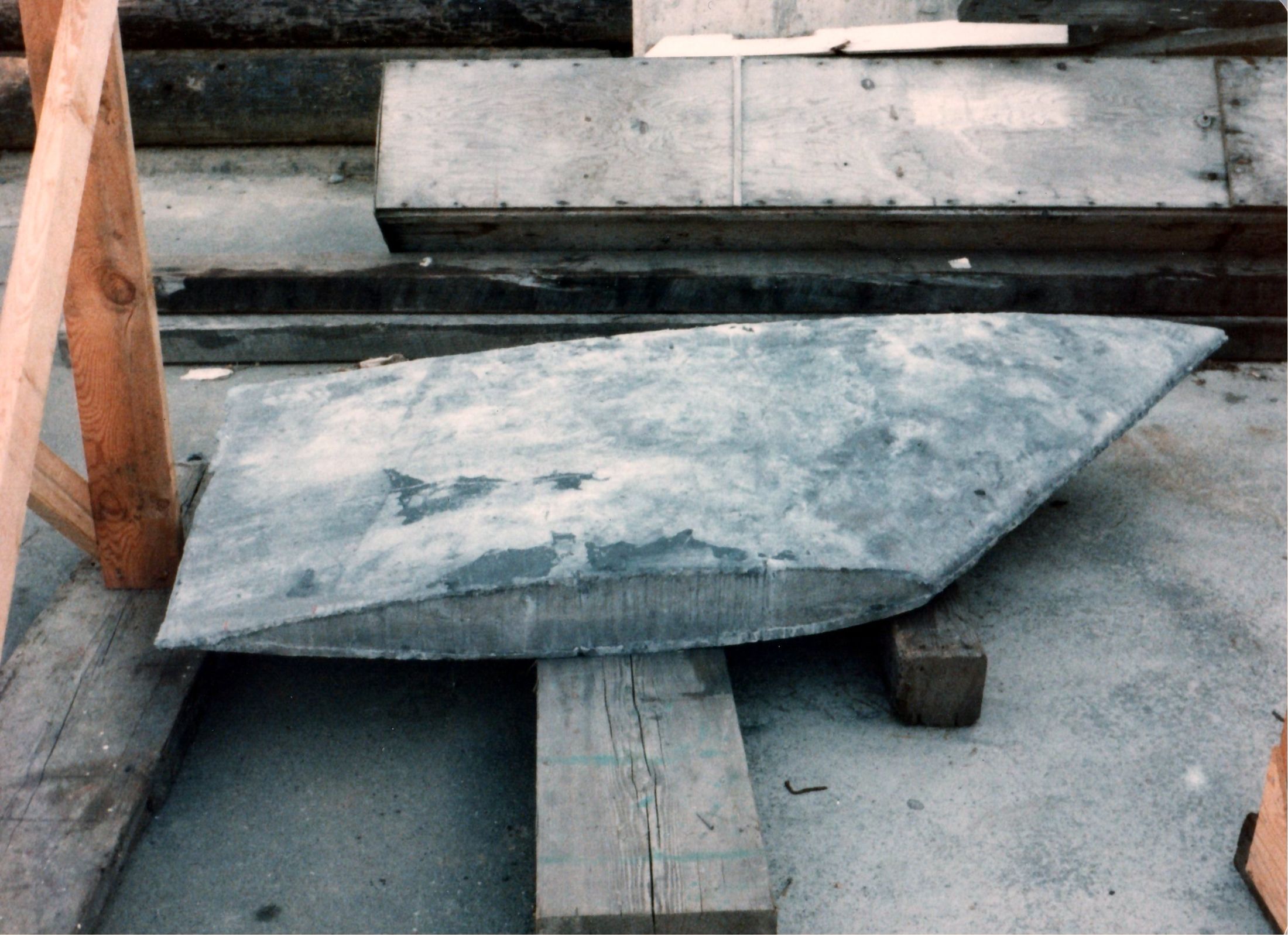

Fairing, sanding, and the turn

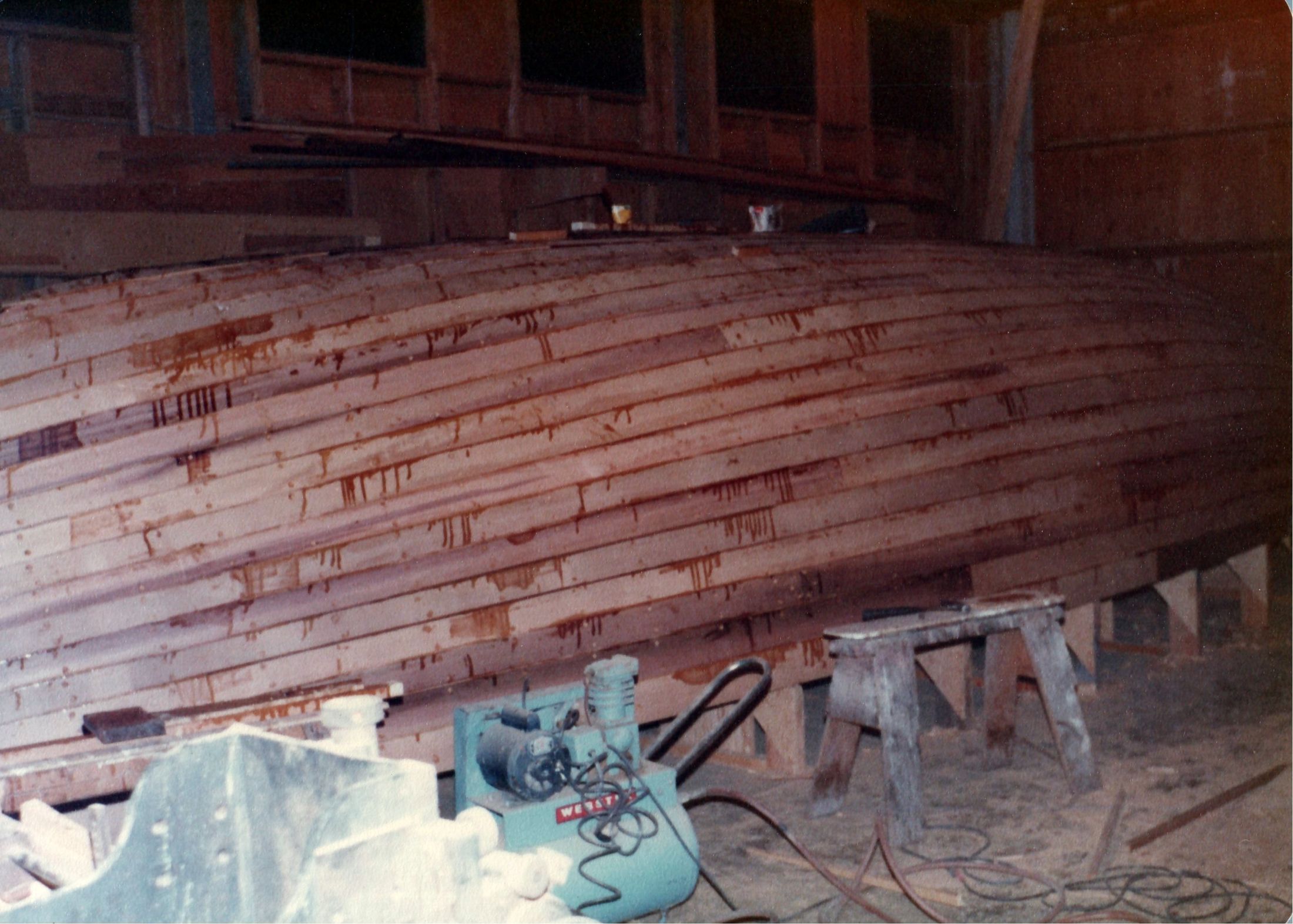

The planked hull along its length, a power plane on the bench — Plate 29

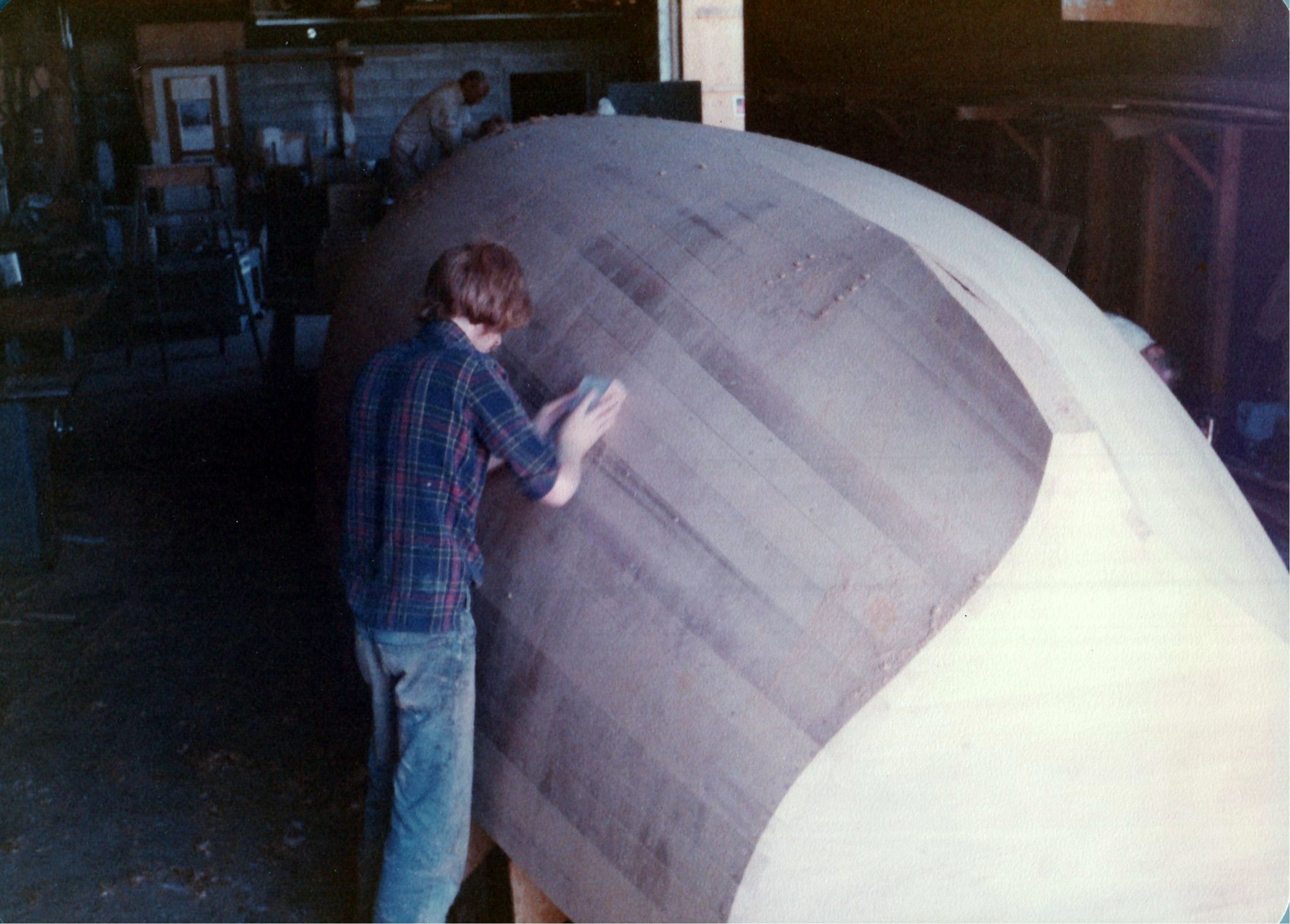

A man fairing the hull by hand — Plate 30

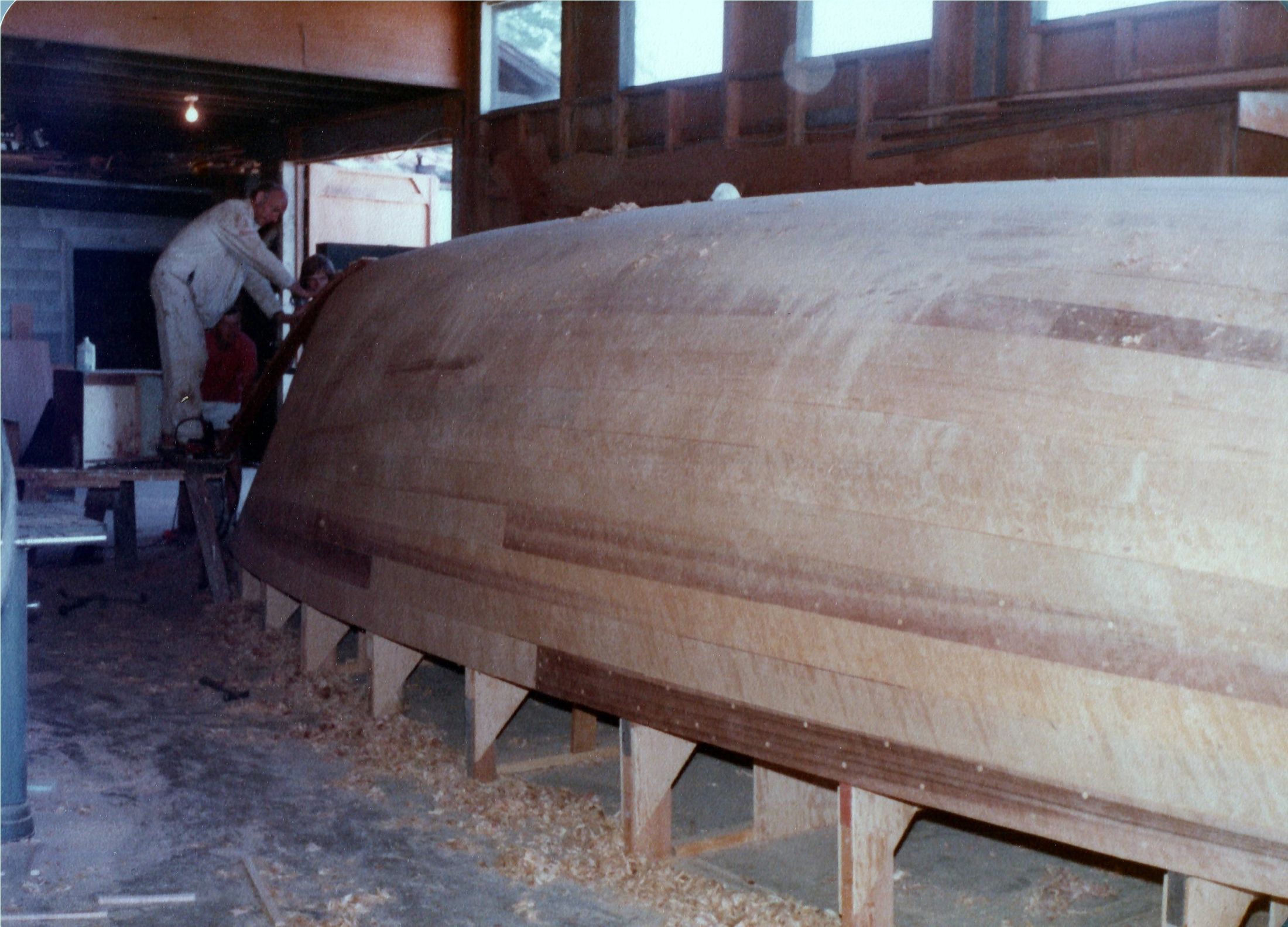

The faired hull, long and pale, shavings on the floor — Plate 31

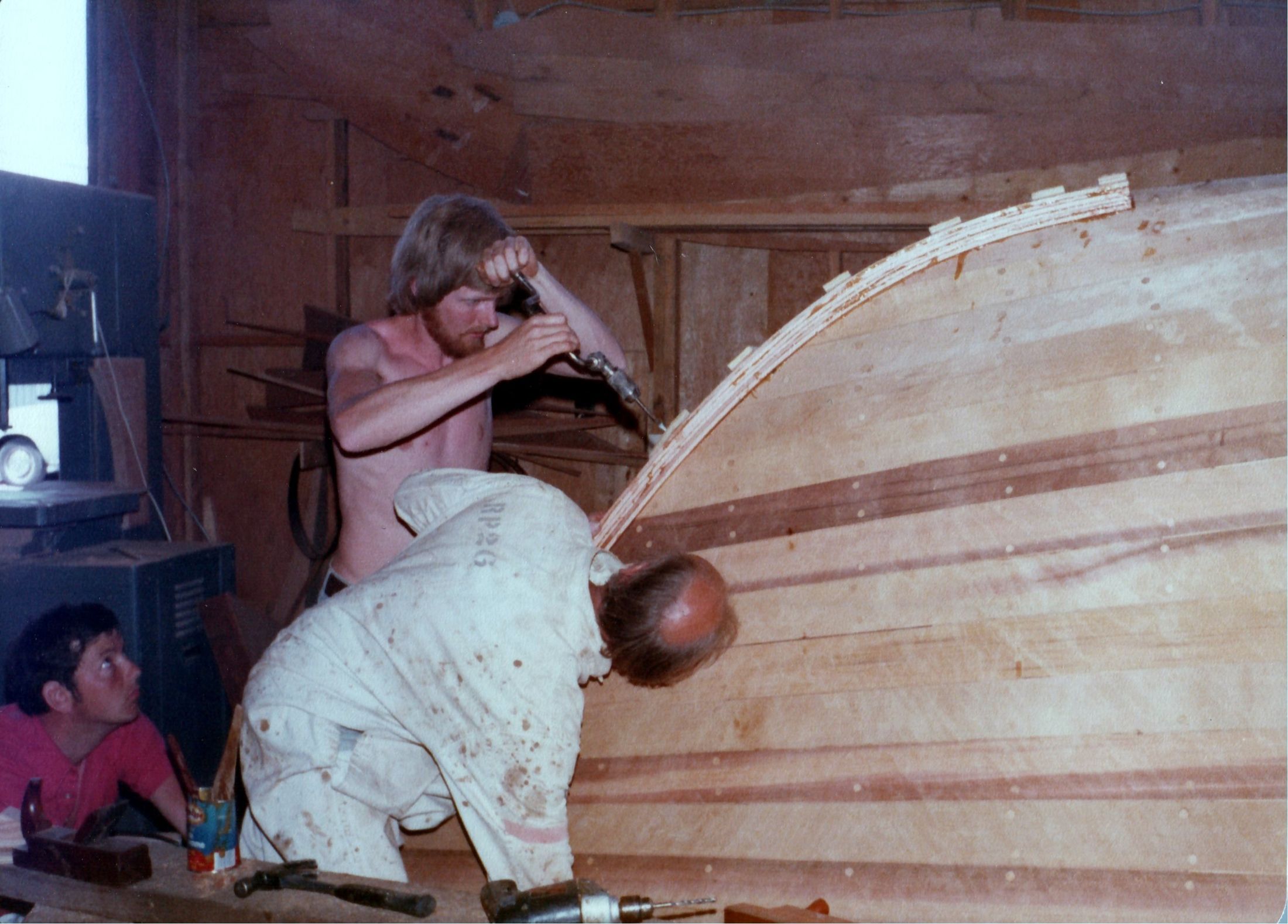

Two men at the stem, one in white overalls bent over the planking — Plate 32

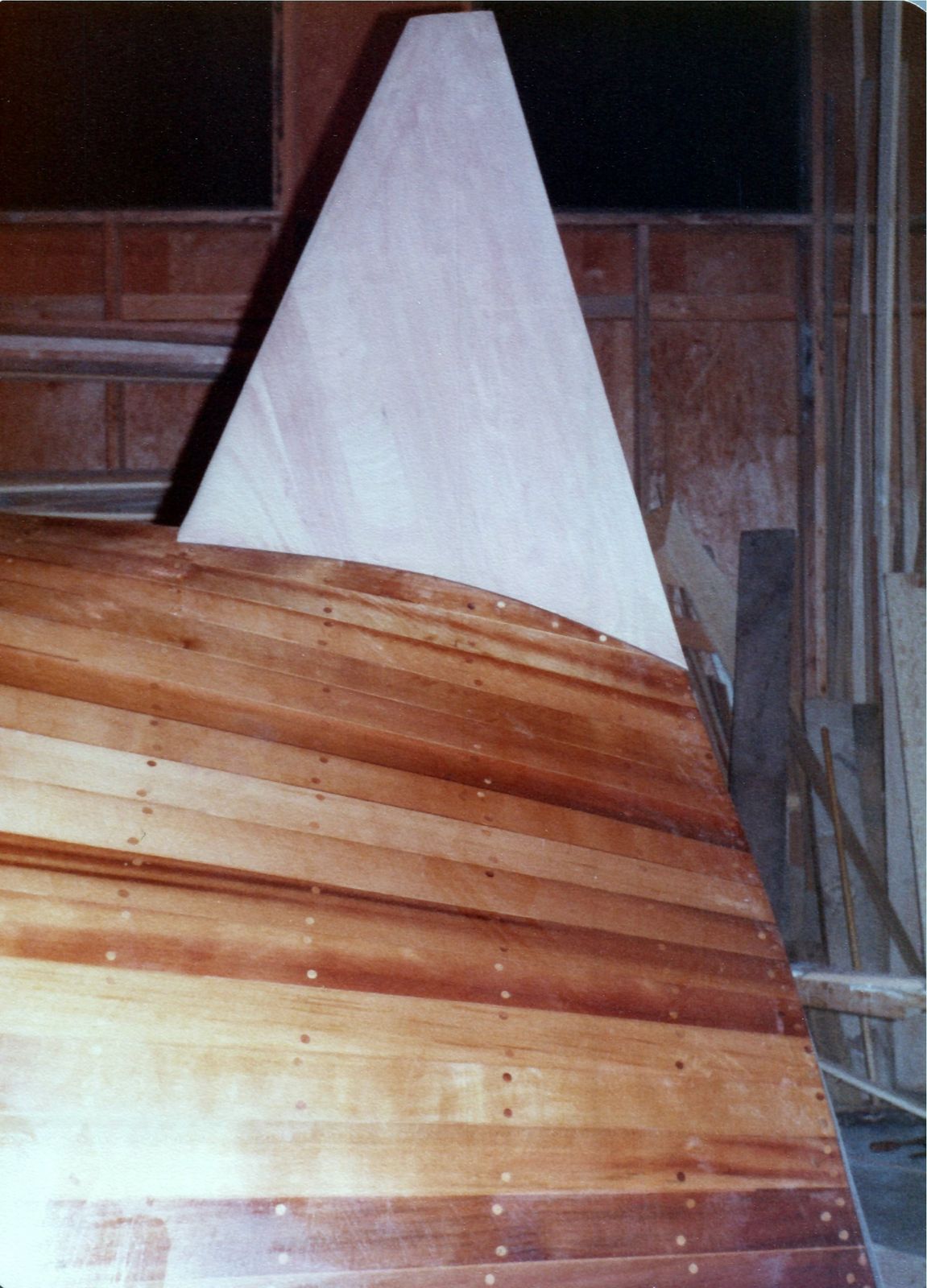

The stub keel fitted to the faired hull — Plate 33

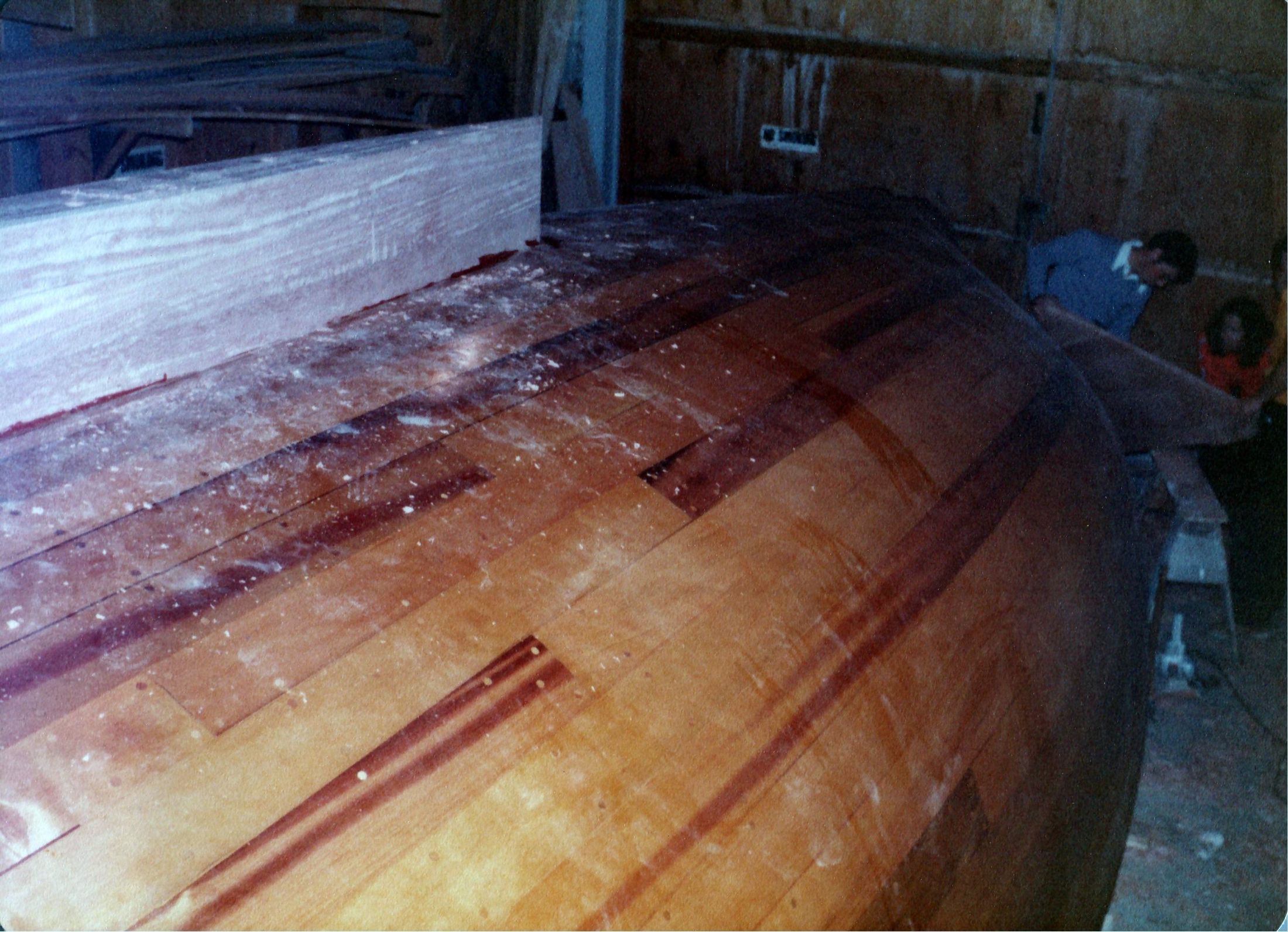

The hull turned right way up, the planking bright under the lamps — Plate 34

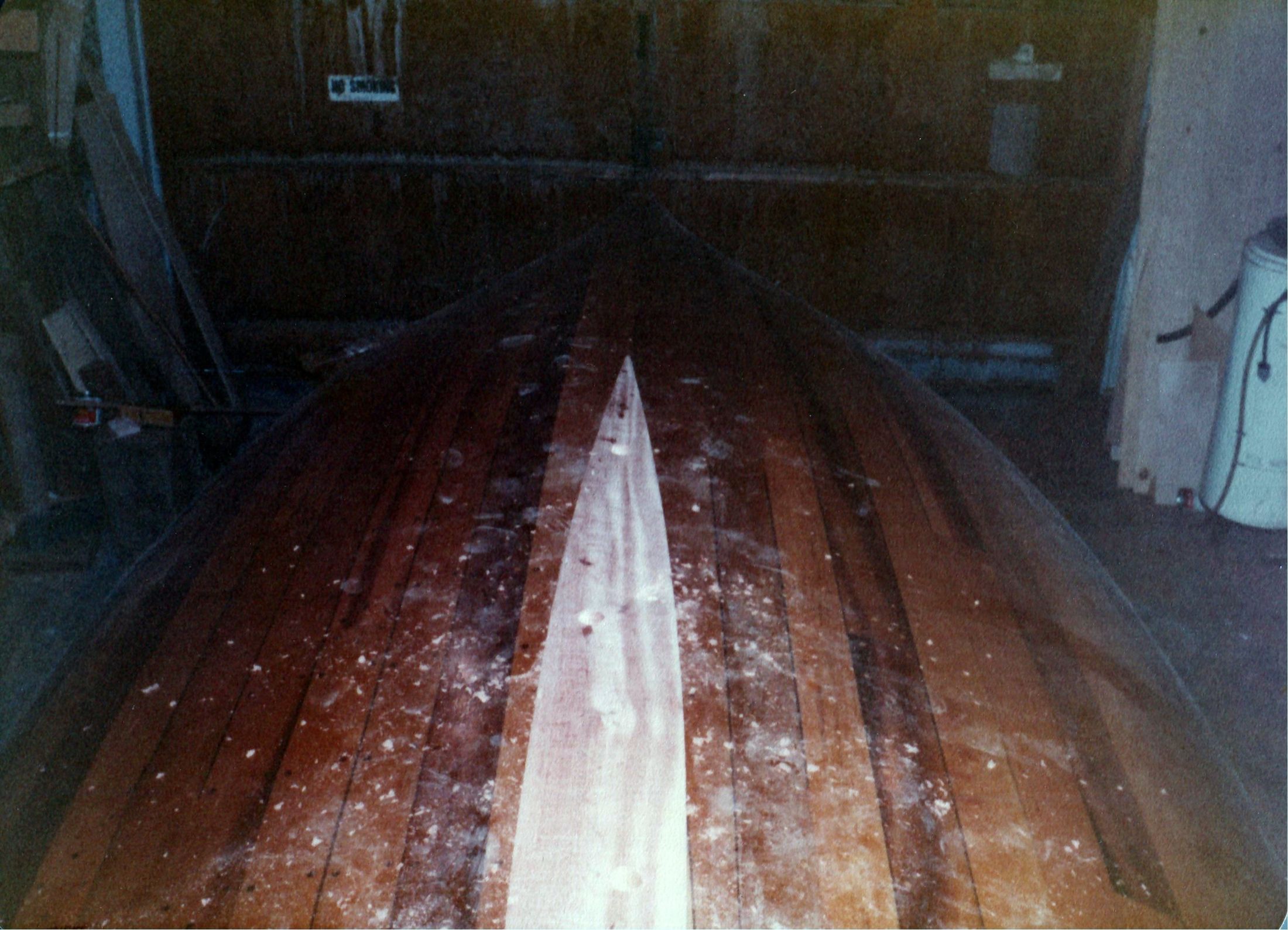

Looking down the keel line of the upright hull — Plate 35

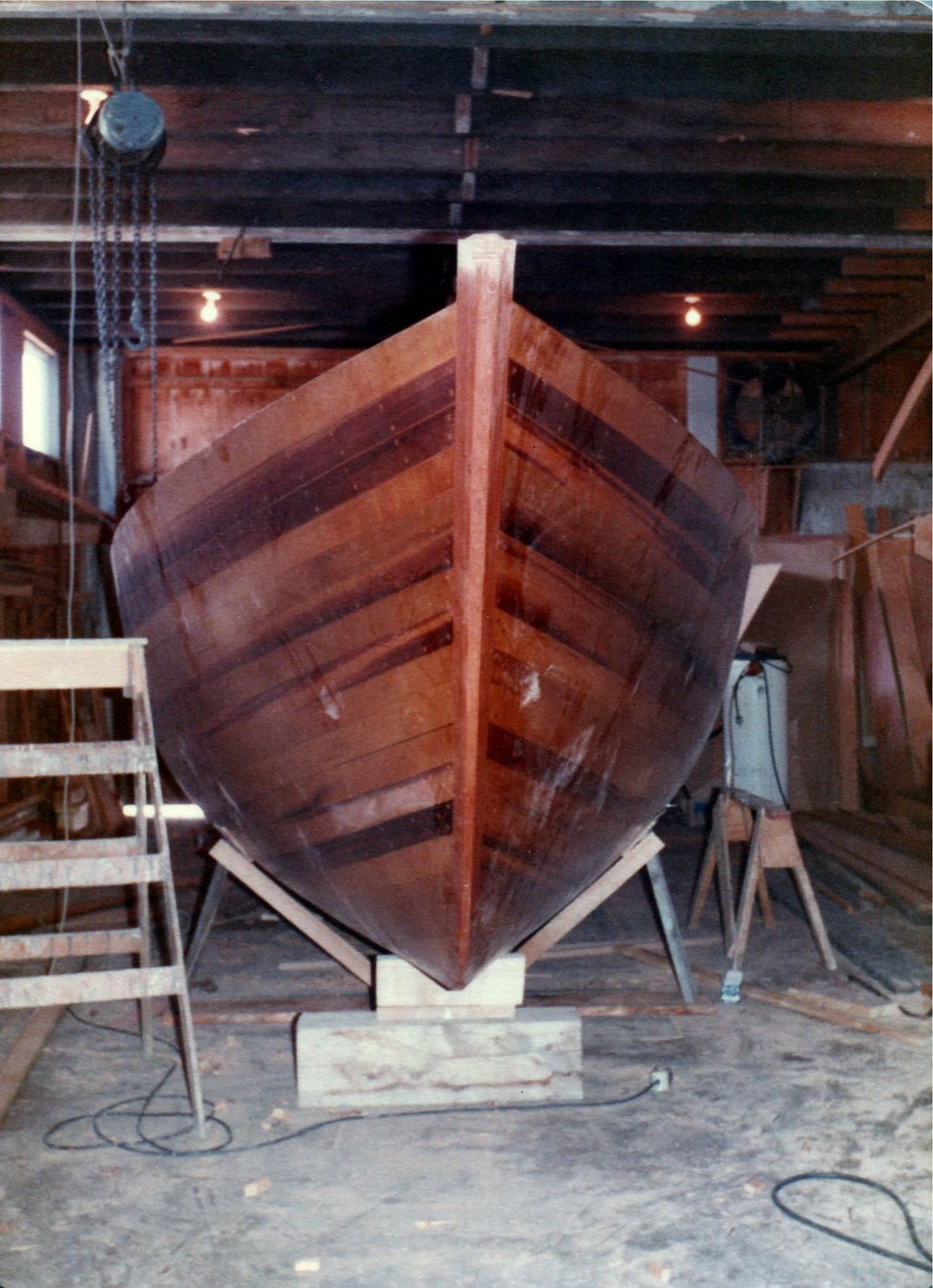

The upright hull from the bow, resting on its stub keel — Plate 36

Items 7, 8, 11, 12 · Plates 37–44

Shelf, clamp, breasthook

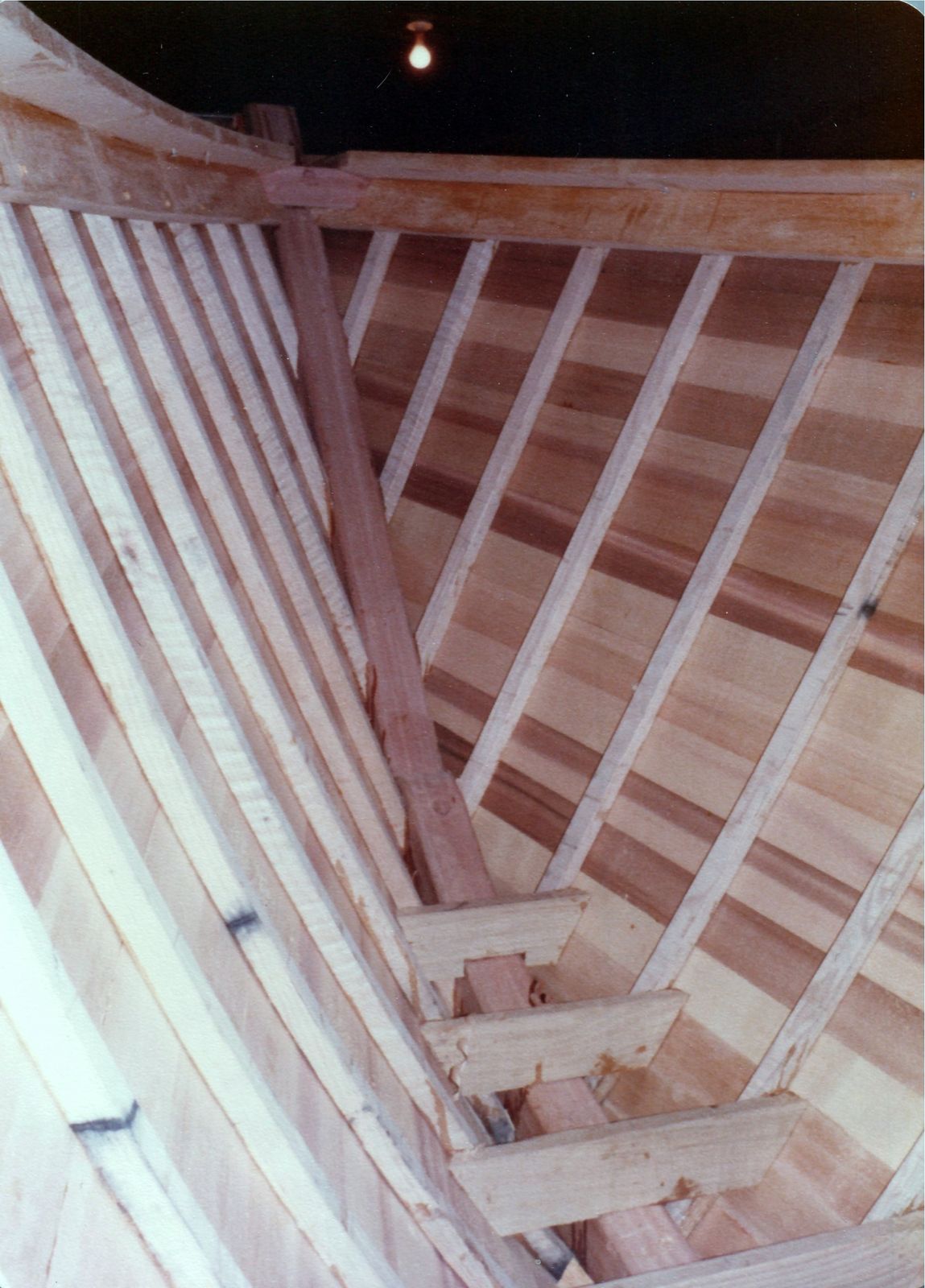

Inside the hull at the bow: frames, floors and the shelf — Plate 37

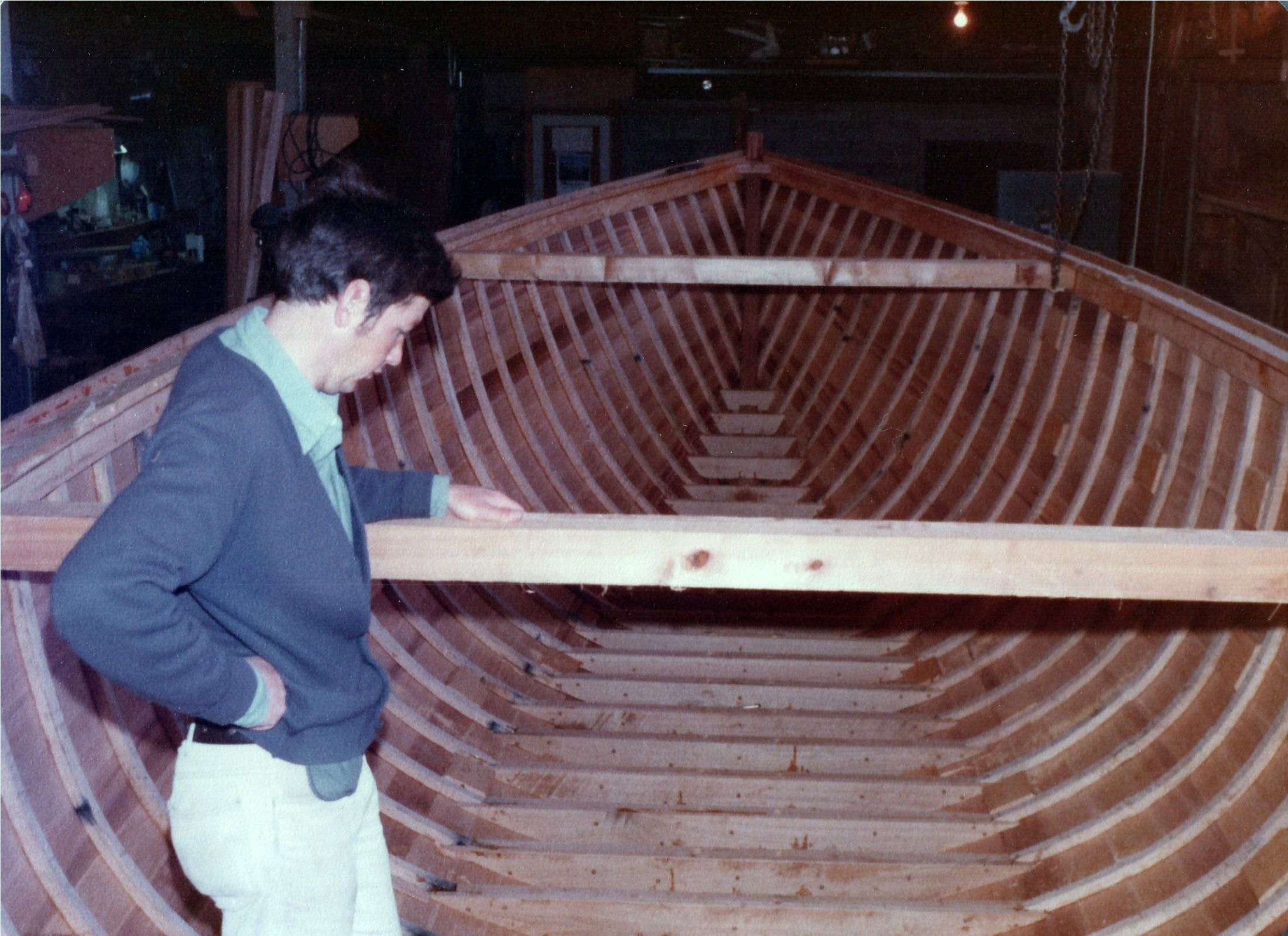

A man leaning on a beam across the open hull, frames and floors below — Plate 38

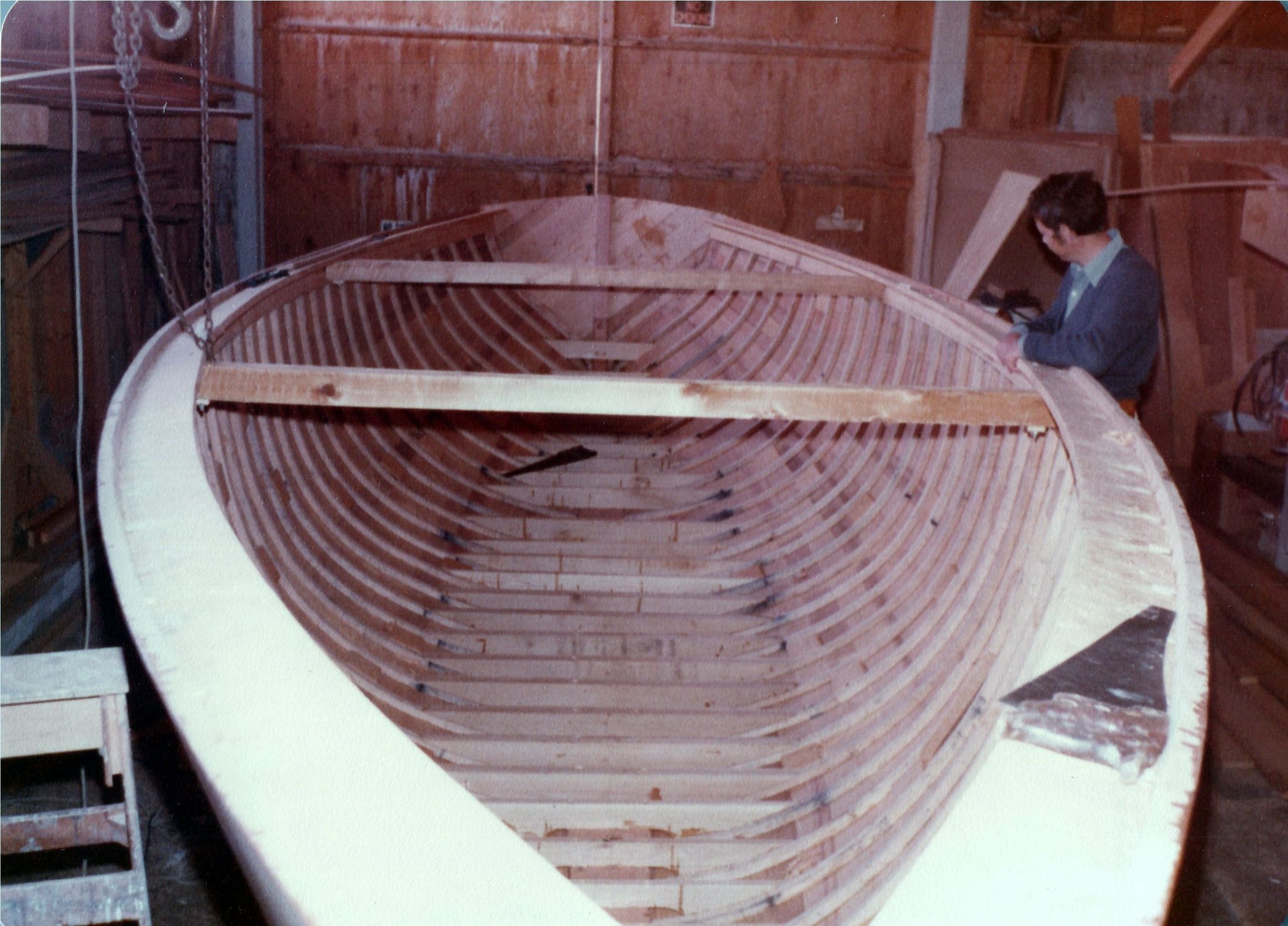

The open hull from above the stern, floors along the keel — Plate 39

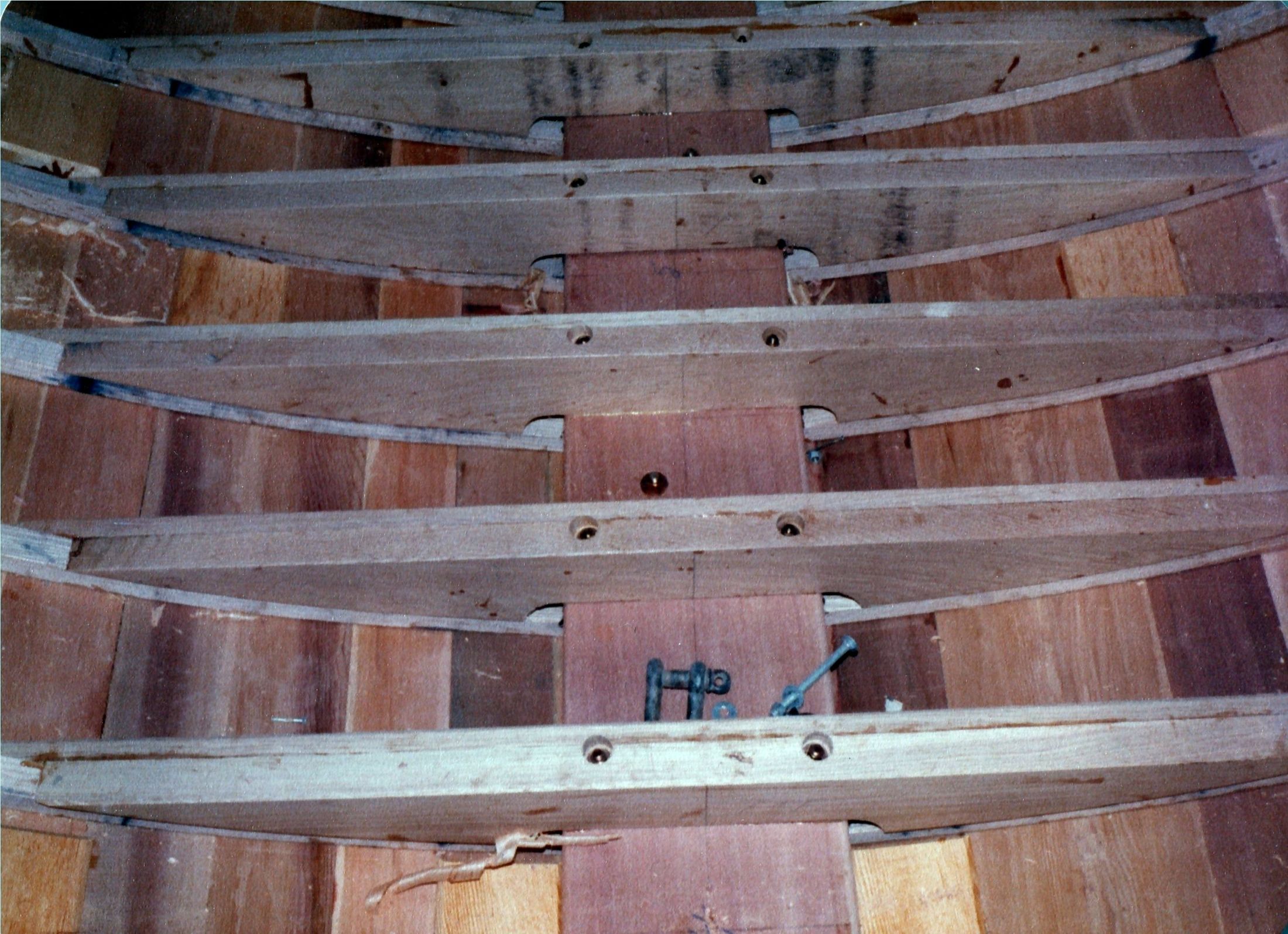

The shelf and clamp notched over the frames, bolts through — Plate 40

West Coast Lumber for Boat BuildingFlounder Bay Boat Shop

FIR — Pseudotsuga menziesii

Fir is familiar to us in the Northwest as planking and laid decking for tugs, barges, fishboats and small ships. It can be gotten in large timbers and is used for backbones, bulwarks, and cabin foundations. It has a fine, even grain and is milled for tongue and groove cabin siding, wainscoting and ceiling. Although usually considered too heavy for skiff and small boat planking, fir is tough, flexible, resists splitting, holds fastenings well and has been used for that, too. Called the Prince of Woods by some builders, Douglas fir performs many jobs well.

A peculiarity of fir is that it continues to get harder and stiffer as it air-dries over the years. The optimum drying cycle for 2" planking, for example, is under a year. The older the fir lumber gets after that, the harder it becomes. Many people around here have found they must drill pilot holes for common nails in order to fasten anything to the rock hard fir studs of an old building.

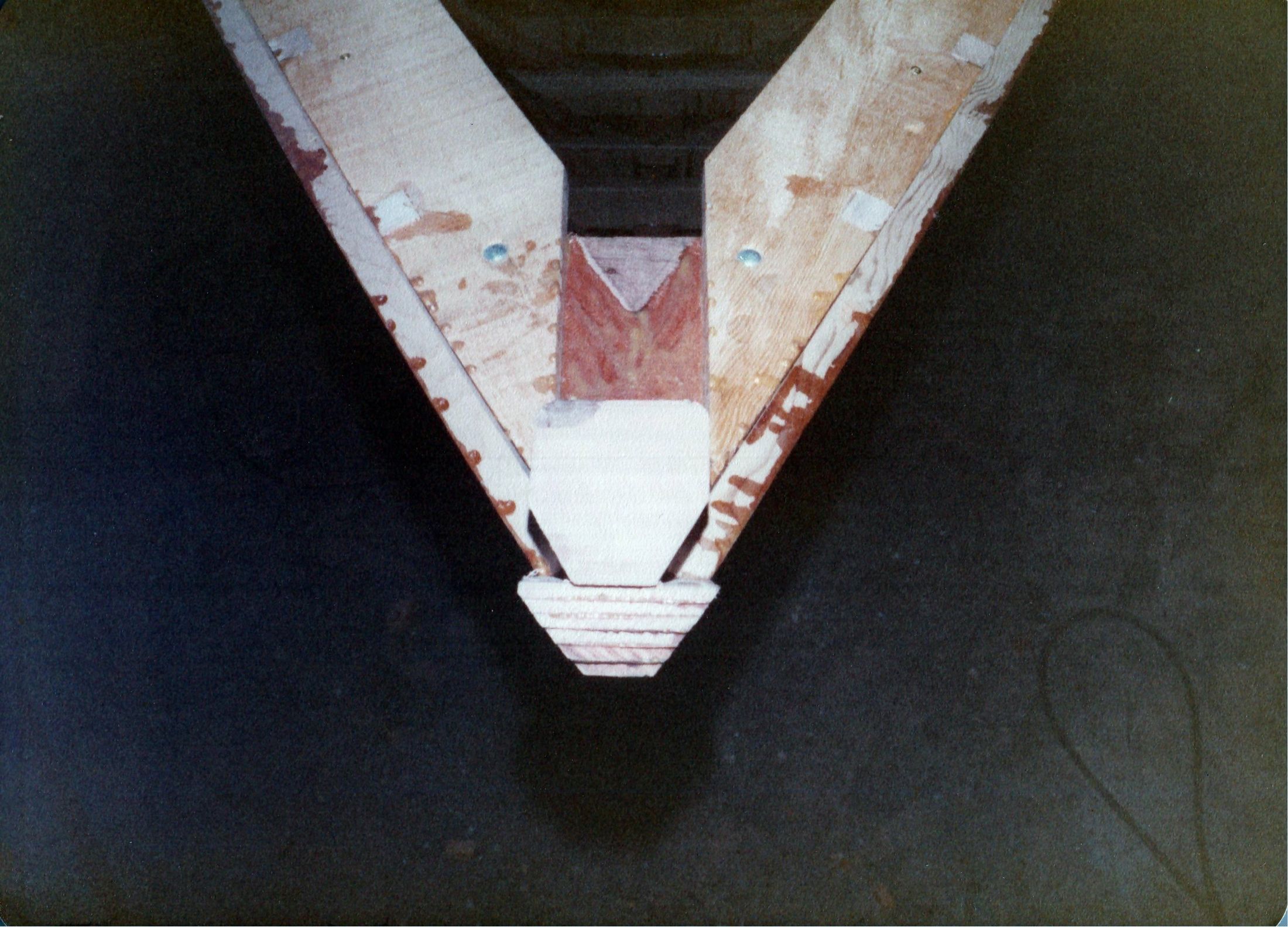

The stem from inside, the breasthook fitted — Plate 41

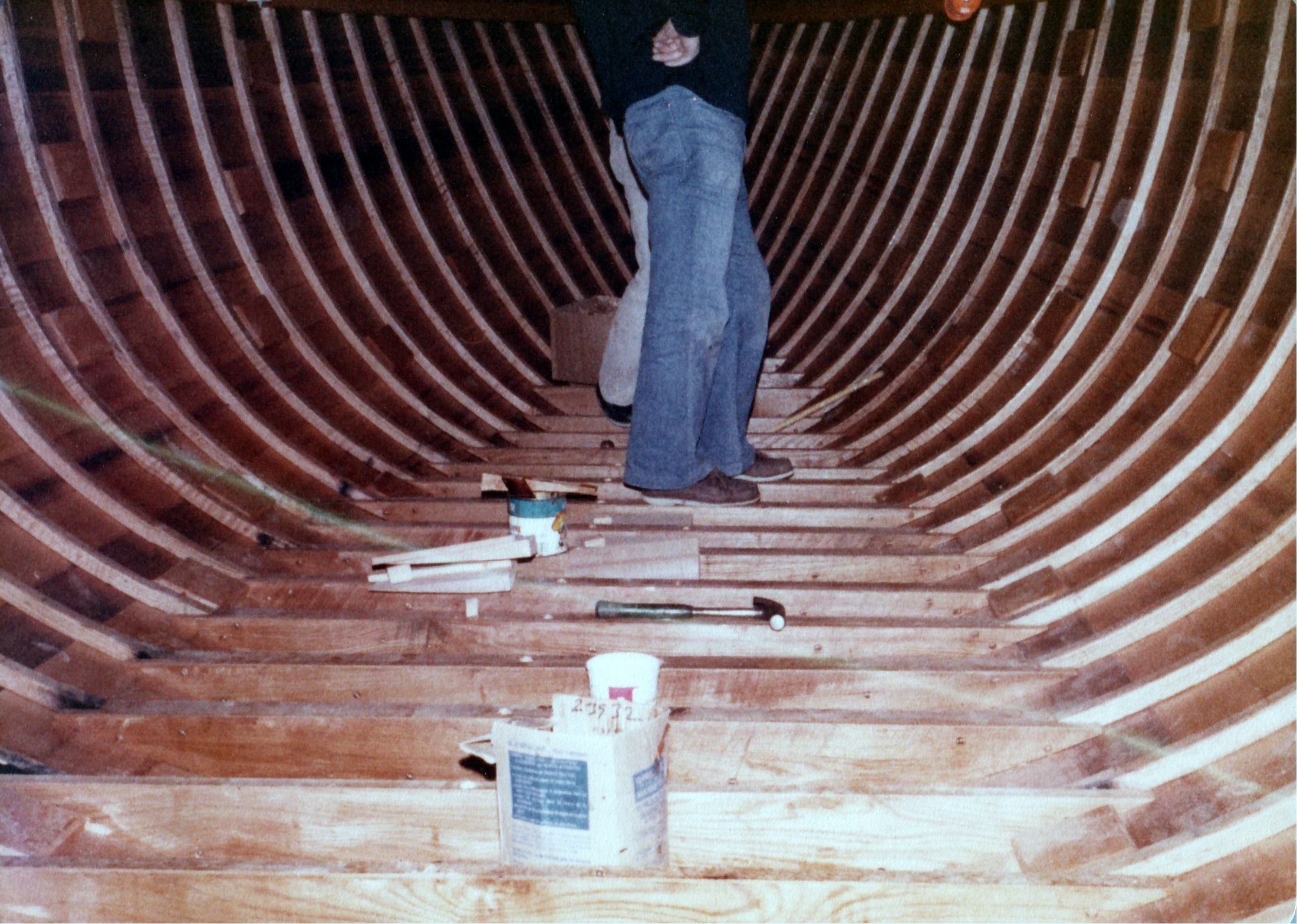

A man standing in the hull among the floors — Plate 42

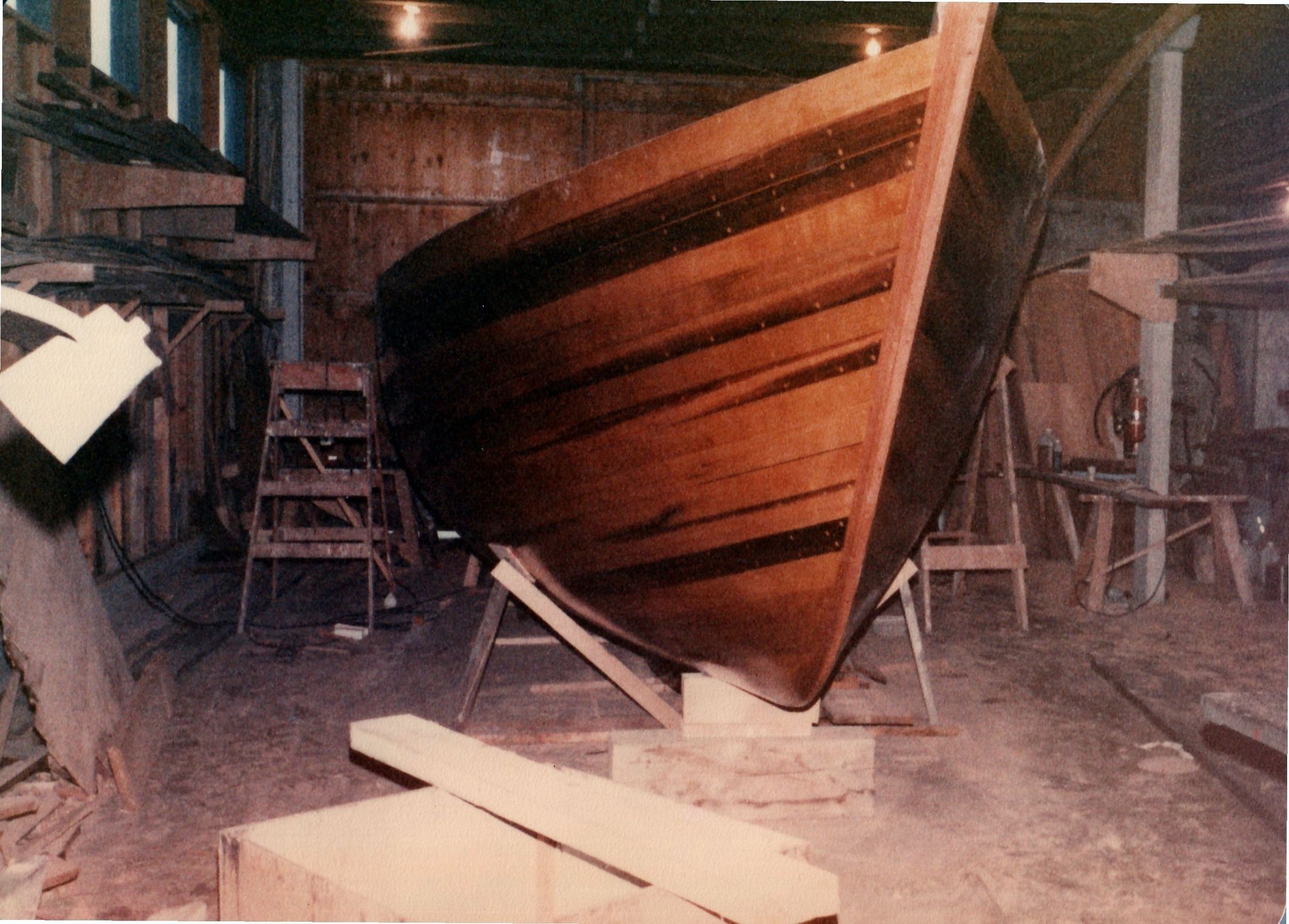

The upright hull in the shop, a stepladder alongside — Plate 43

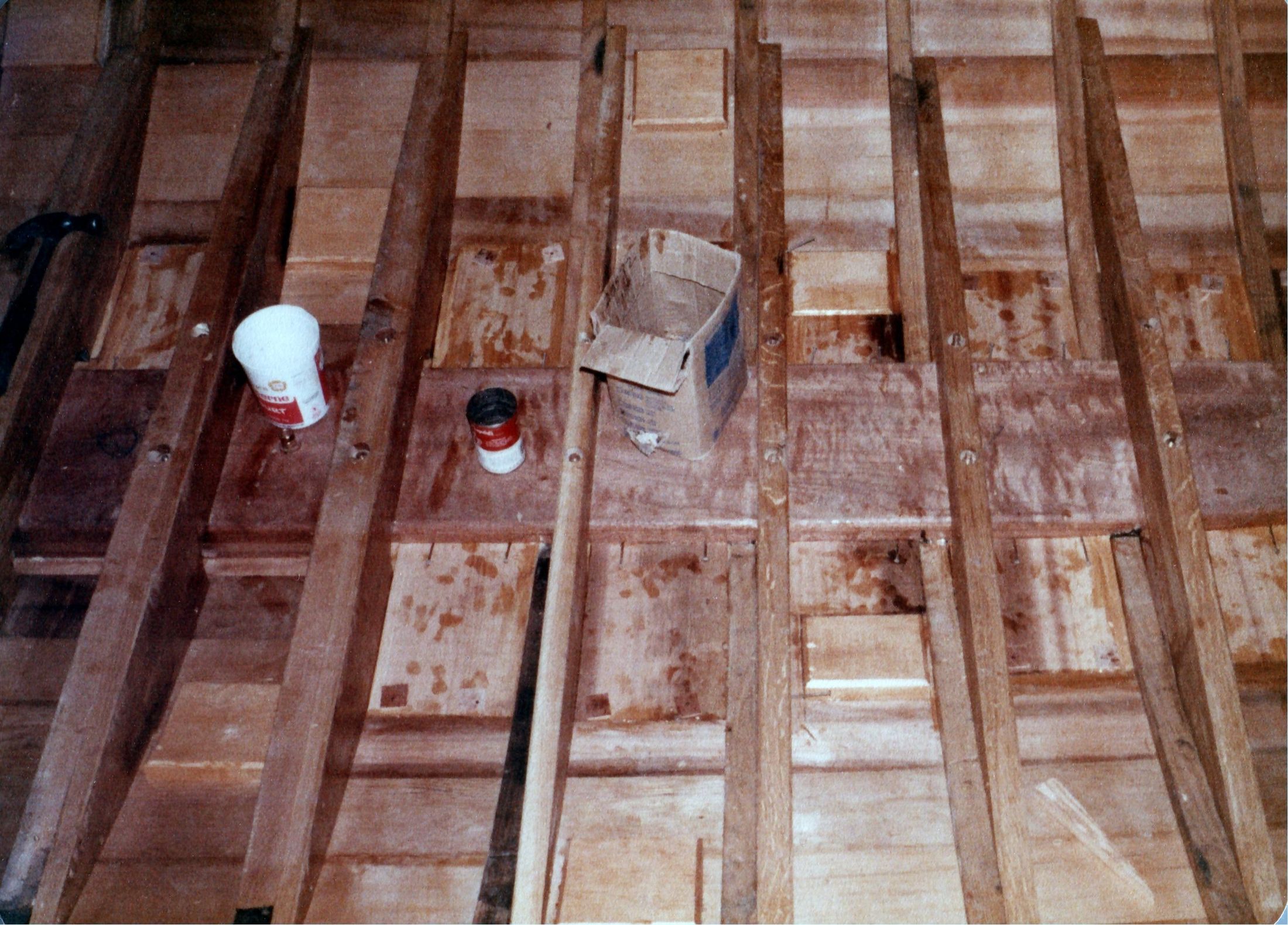

Floors and frames along the bilge, paint cans on the planking — Plate 44

Items 19–24 · Plates 45–59

Bulkheads, beams, coach house

SpecificationAmendments as shown 9/1/78

✓ 19. Bulkheads - as shown but ½" Bruynzeel Ply fitted along frames as customary, seal edges where inaccessible after installation

✓ 20. Cabinsole - 3/8" Gaboon Ply resting on floors fastened around edges but leaving say 2 center sections for bilge access. Seal before fastening

✓ 21. Deck Beams - 2¼" x 1¼" ~~Spruce~~ in pencil: Fir (lam. or grain to run vertically), notched and bolted into shelf and notched and screwed into carling, sealed where inaccess.

22. Strong Beams - 2¼" x 2¼" in way of Hatches and cockpit, fasten same as above.

✓ 23. Carling - 2¼" x 2½" ~~Spruce~~ or Fir bolted to cabinsides with ¼" bolts

✓ 24. Coach house - 1¼" Hond. mahogany, single plank for sides and front, horizontal tongue & groove at the after end, fastened and rabetted into corner posts, epoxy coated.

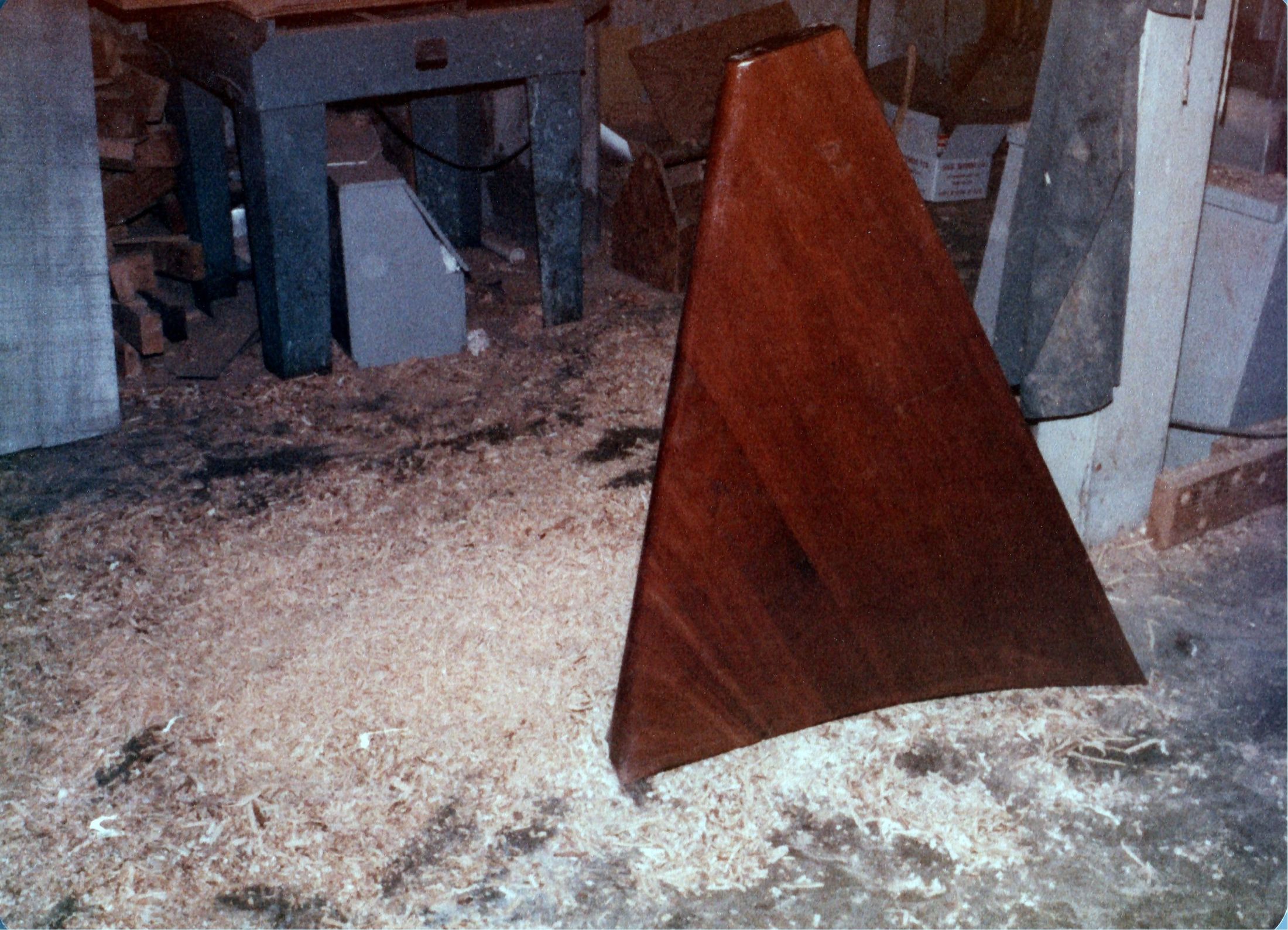

A plywood bulkhead standing on the shop floor — Plate 45

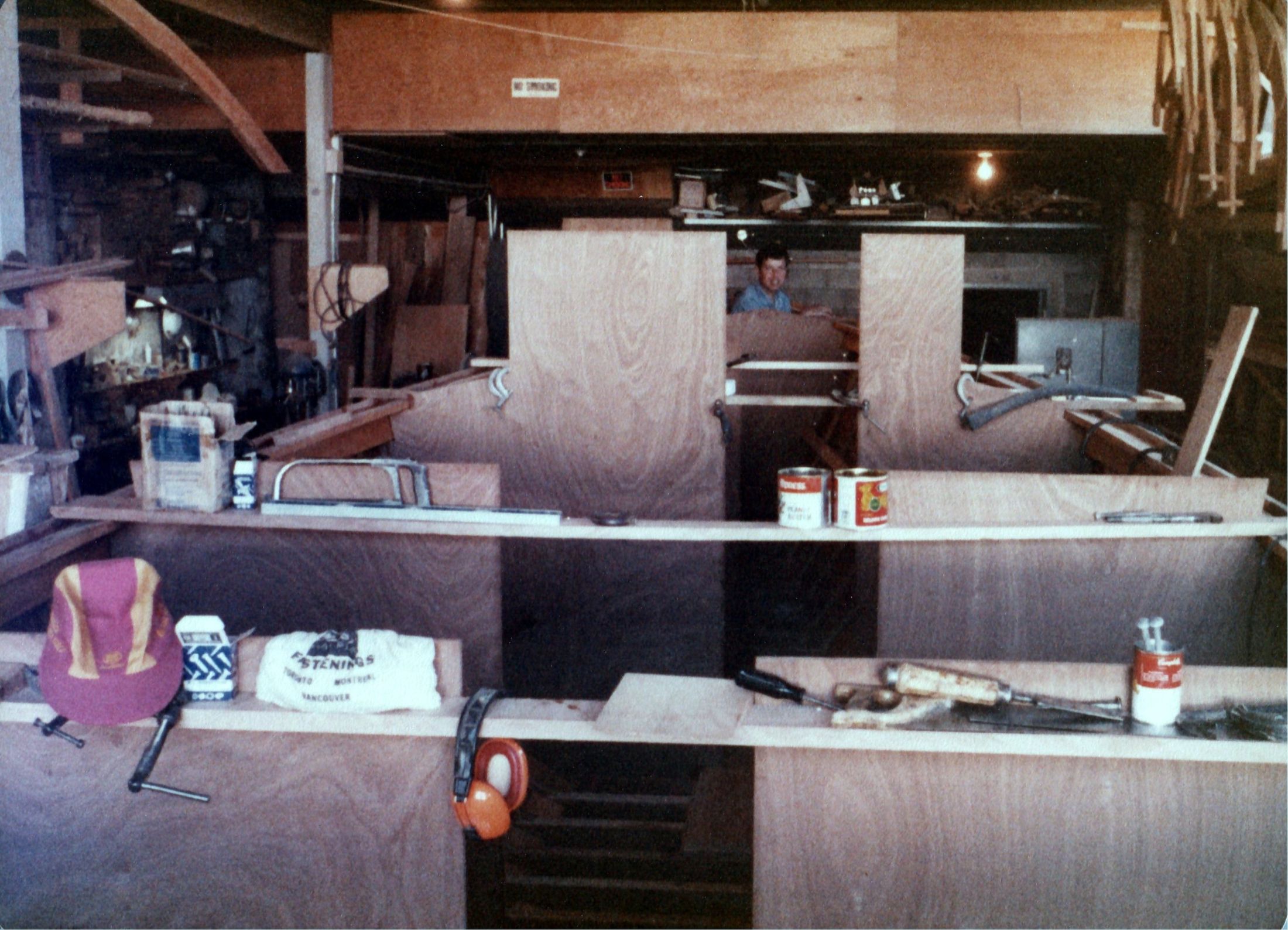

Bulkheads in place, paint cans and ear protectors on the bench — Plate 46

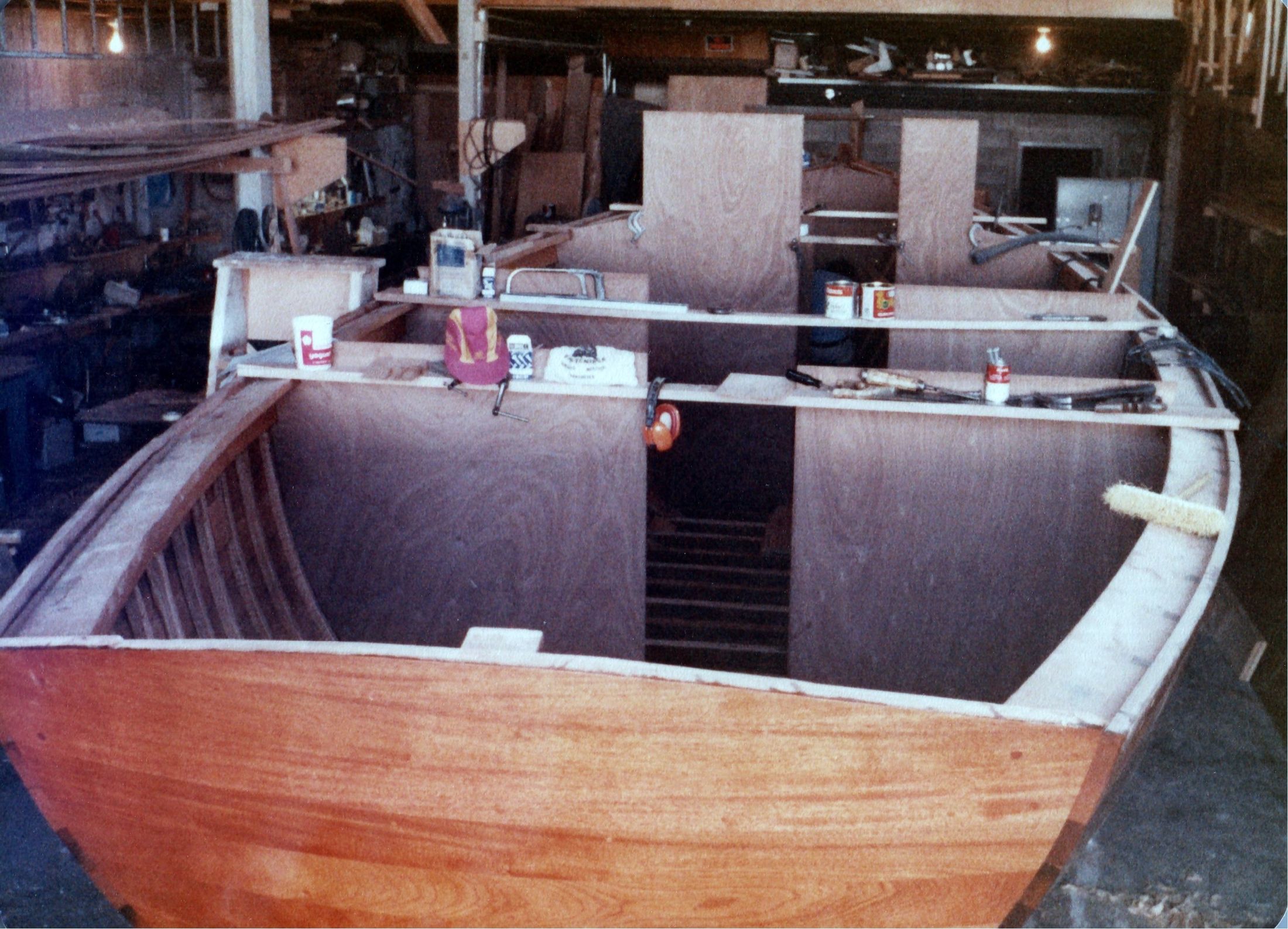

The hull with bulkheads fitted, from the stern — Plate 47

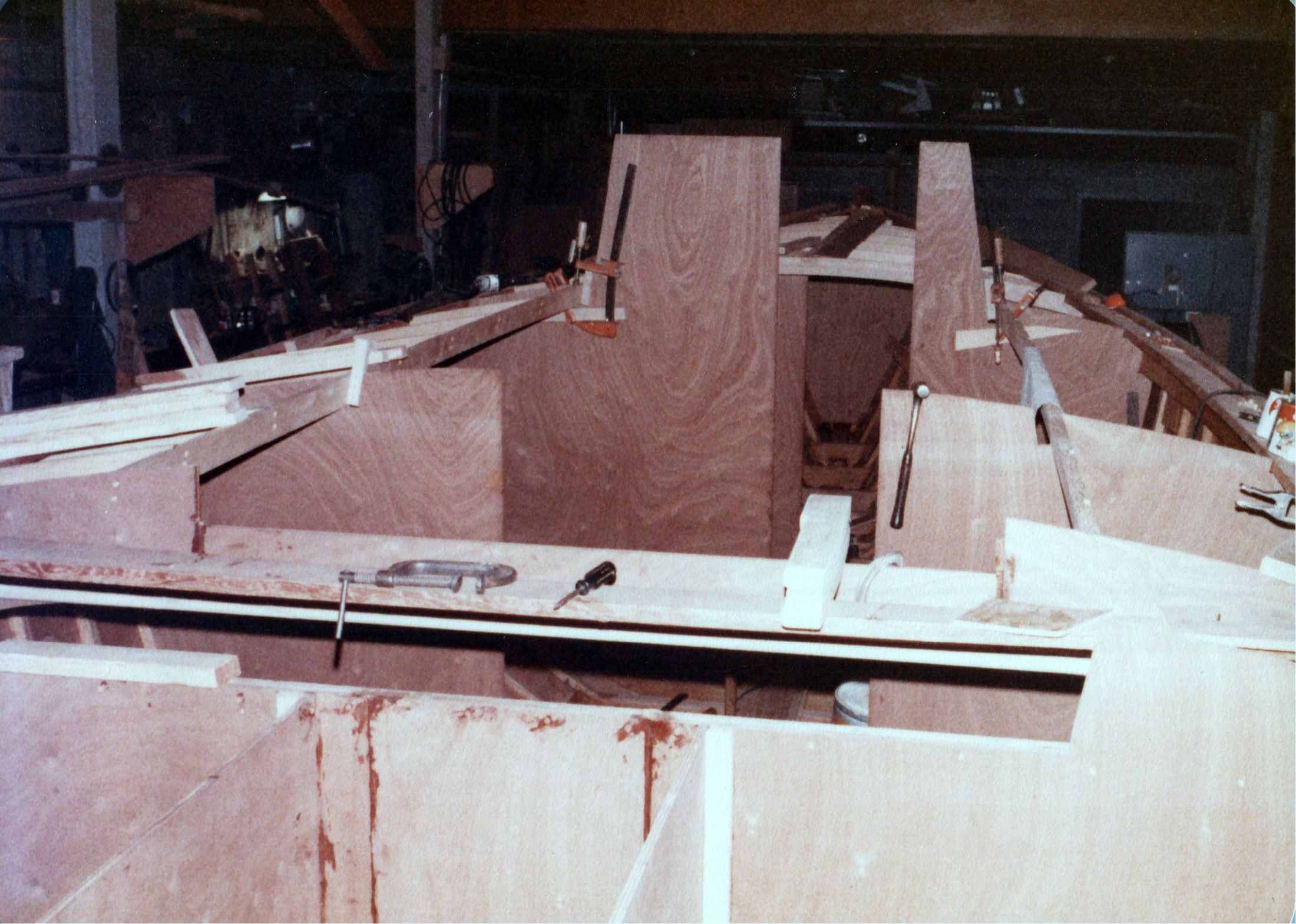

Deck beams and carlings going in at the bow — Plate 48

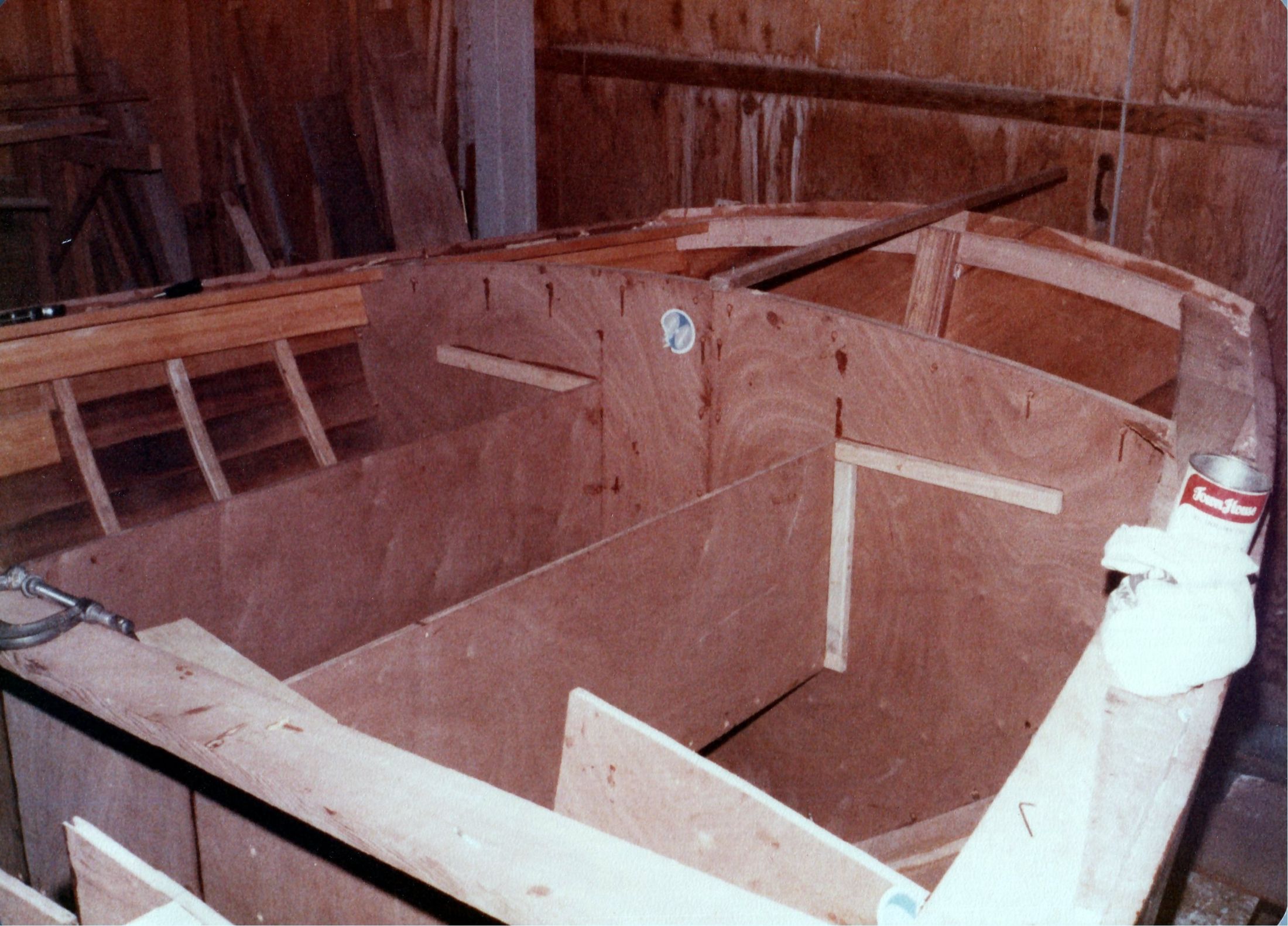

Inside the hull: bulkheads and the cabin sole — Plate 49

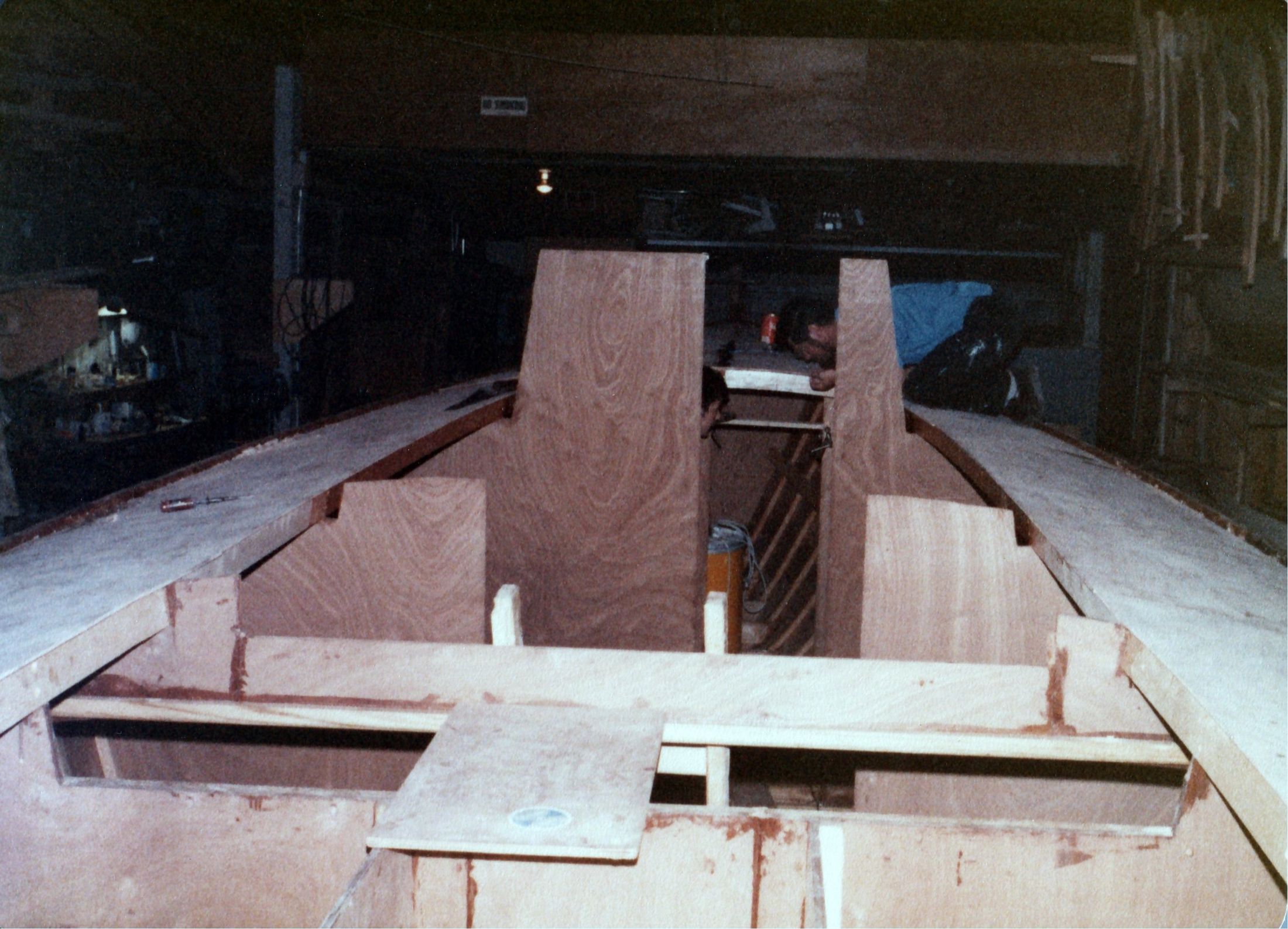

The main bulkhead from forward, beams across — Plate 50

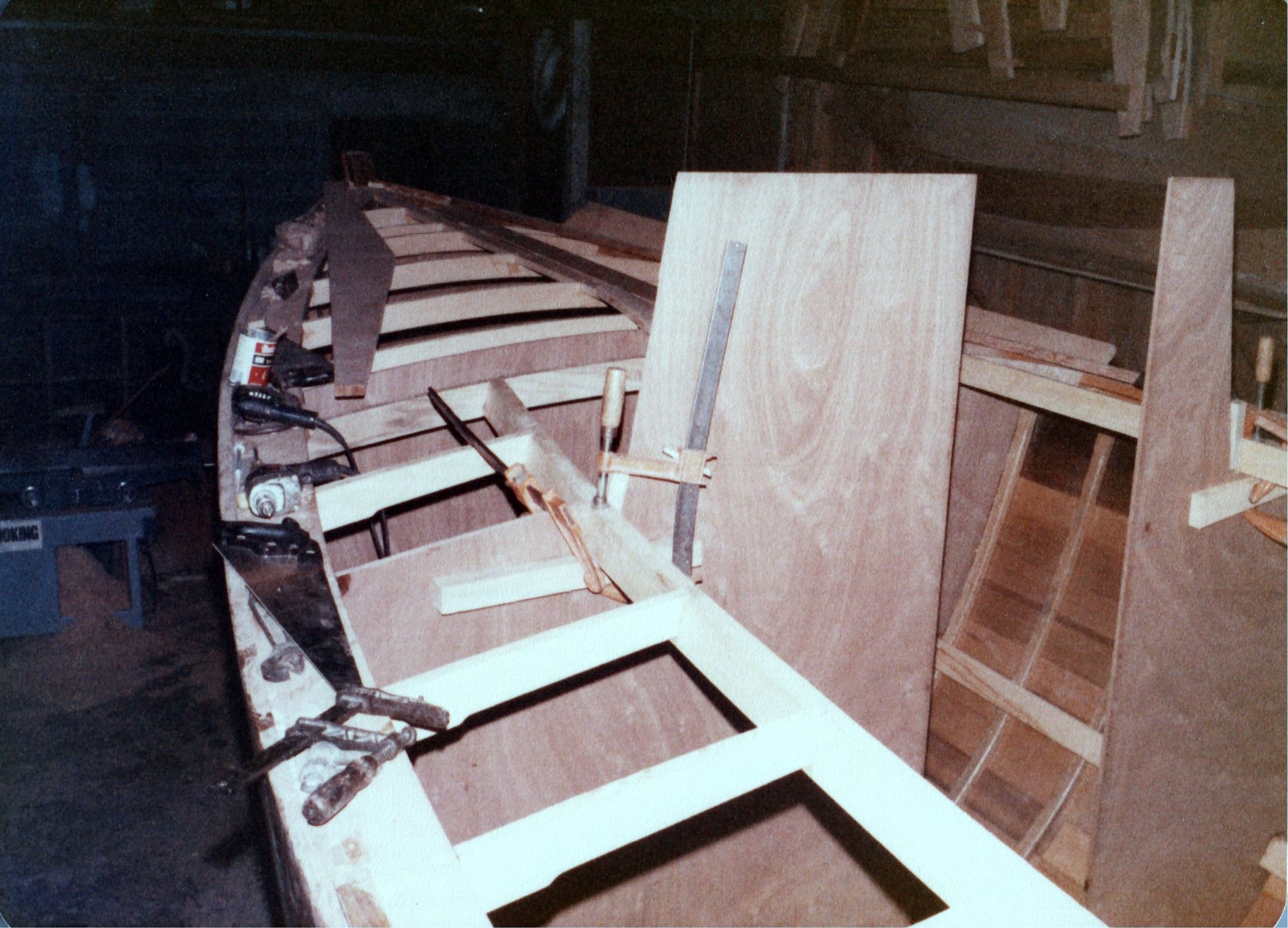

Deck beams notched into the shelf, clamps holding a carling — Plate 51

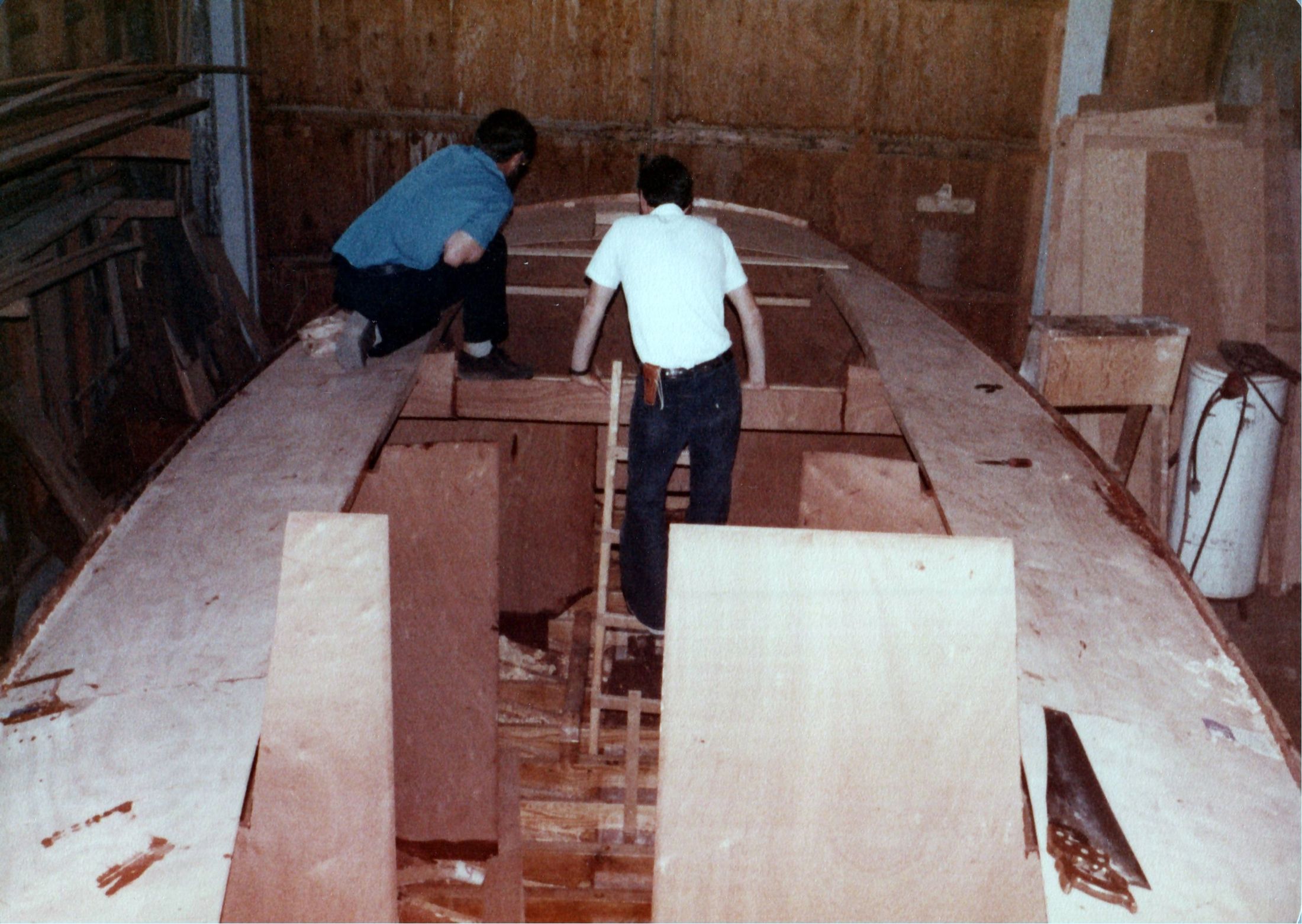

Two men working on the deck framing — Plate 52

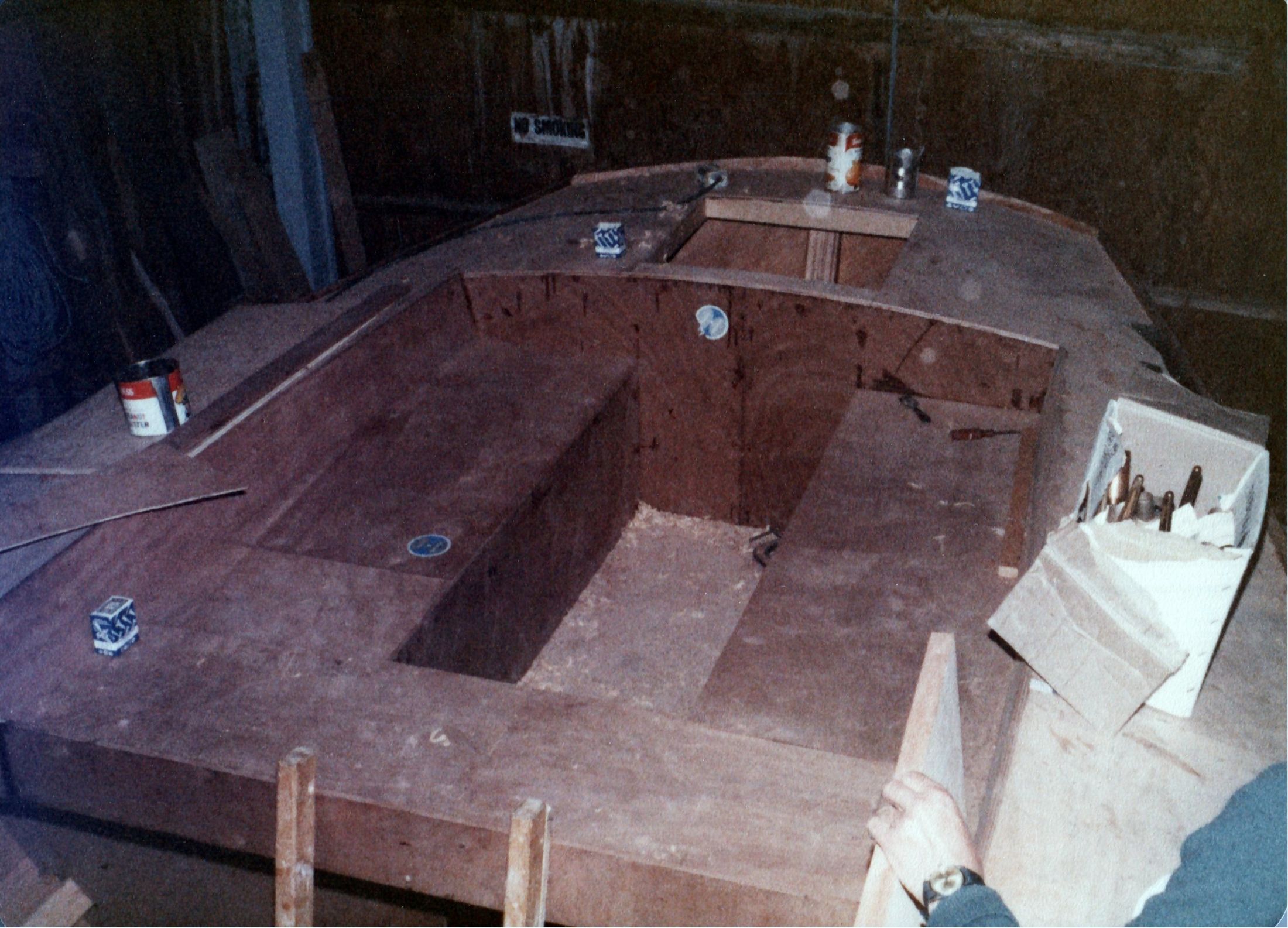

The deck framing from the stern, the cockpit opening — Plate 53

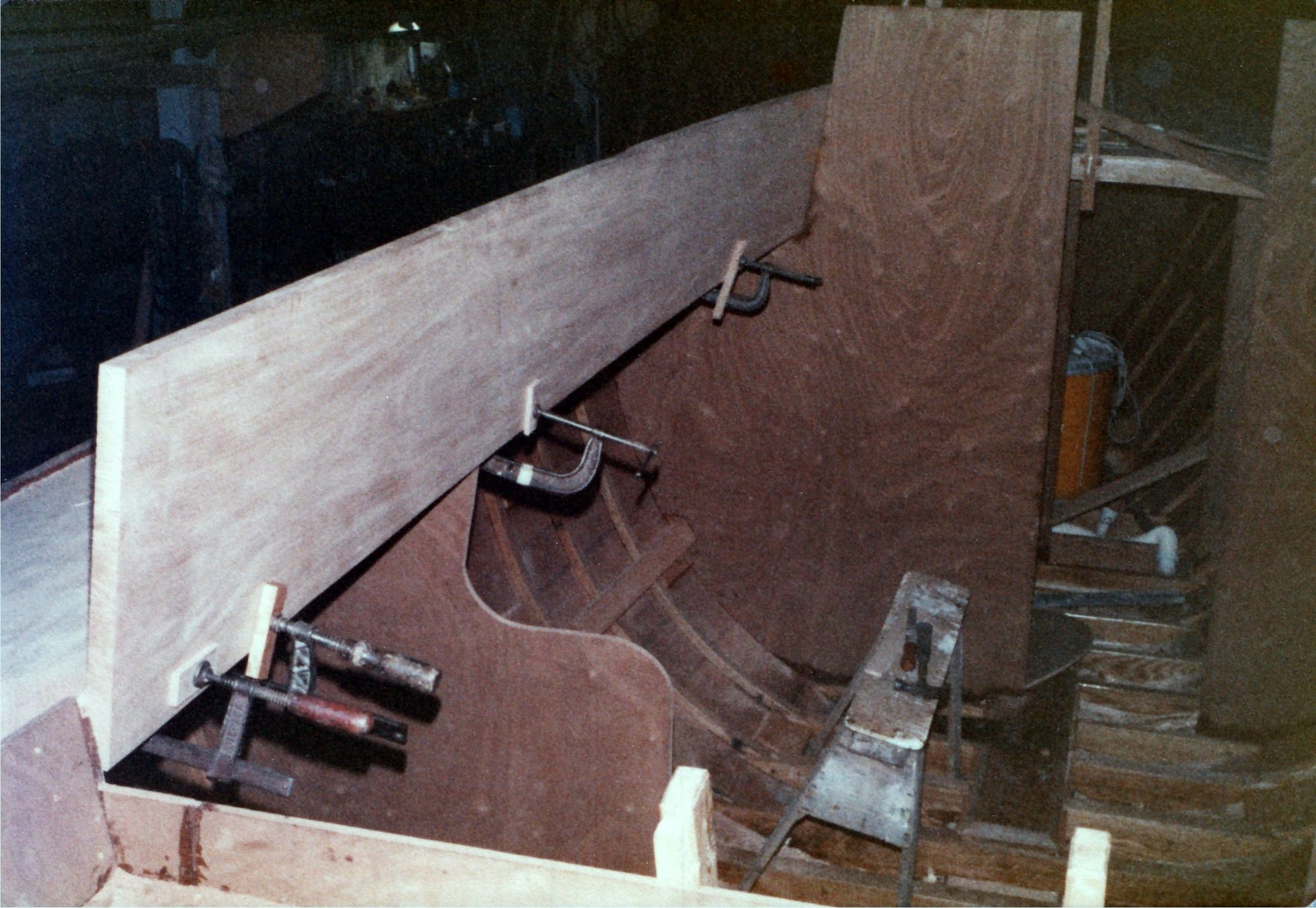

The coach house side clamped up — Plate 54

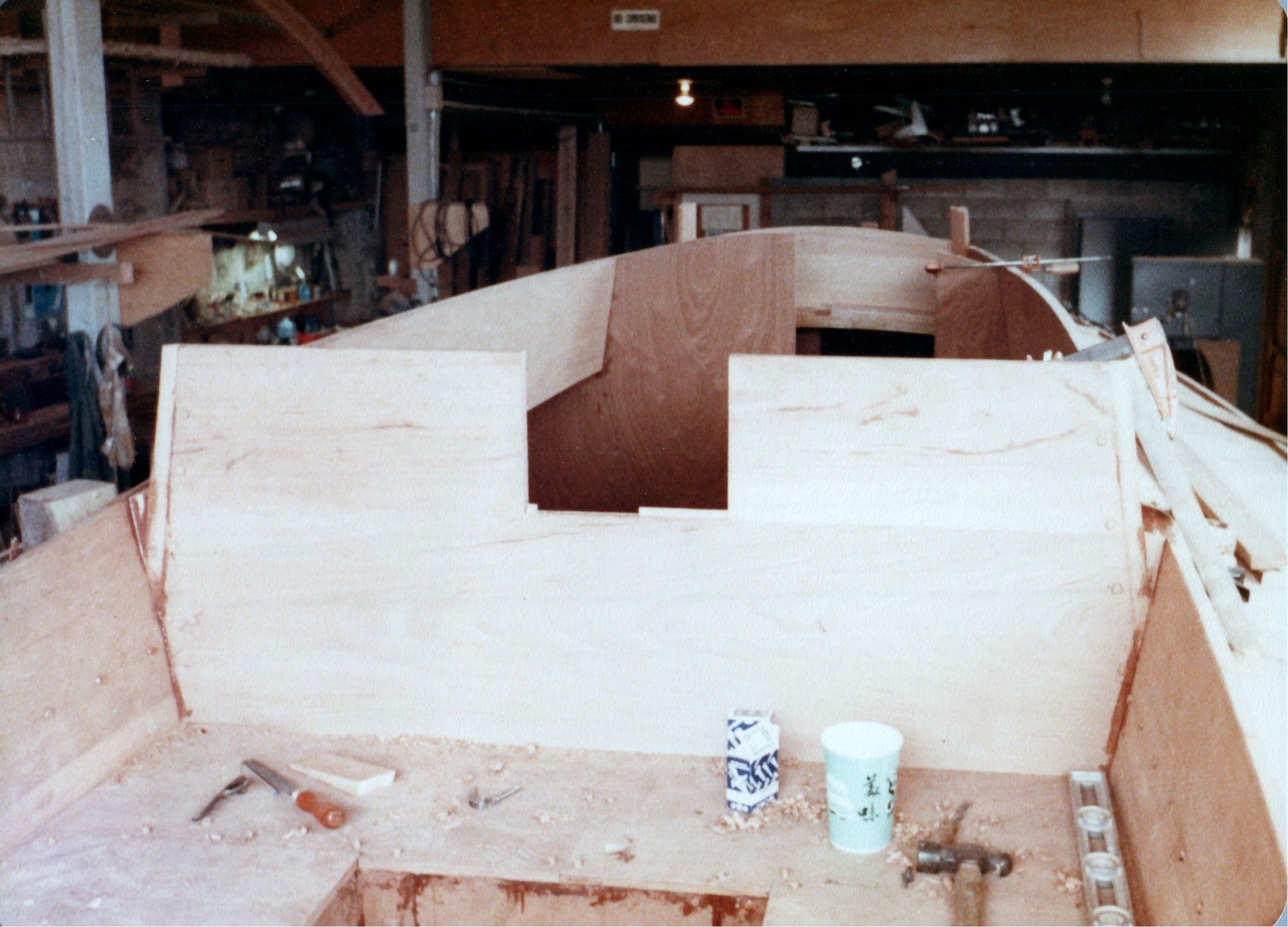

The coach house sides and front, the deck plywood on — Plate 55

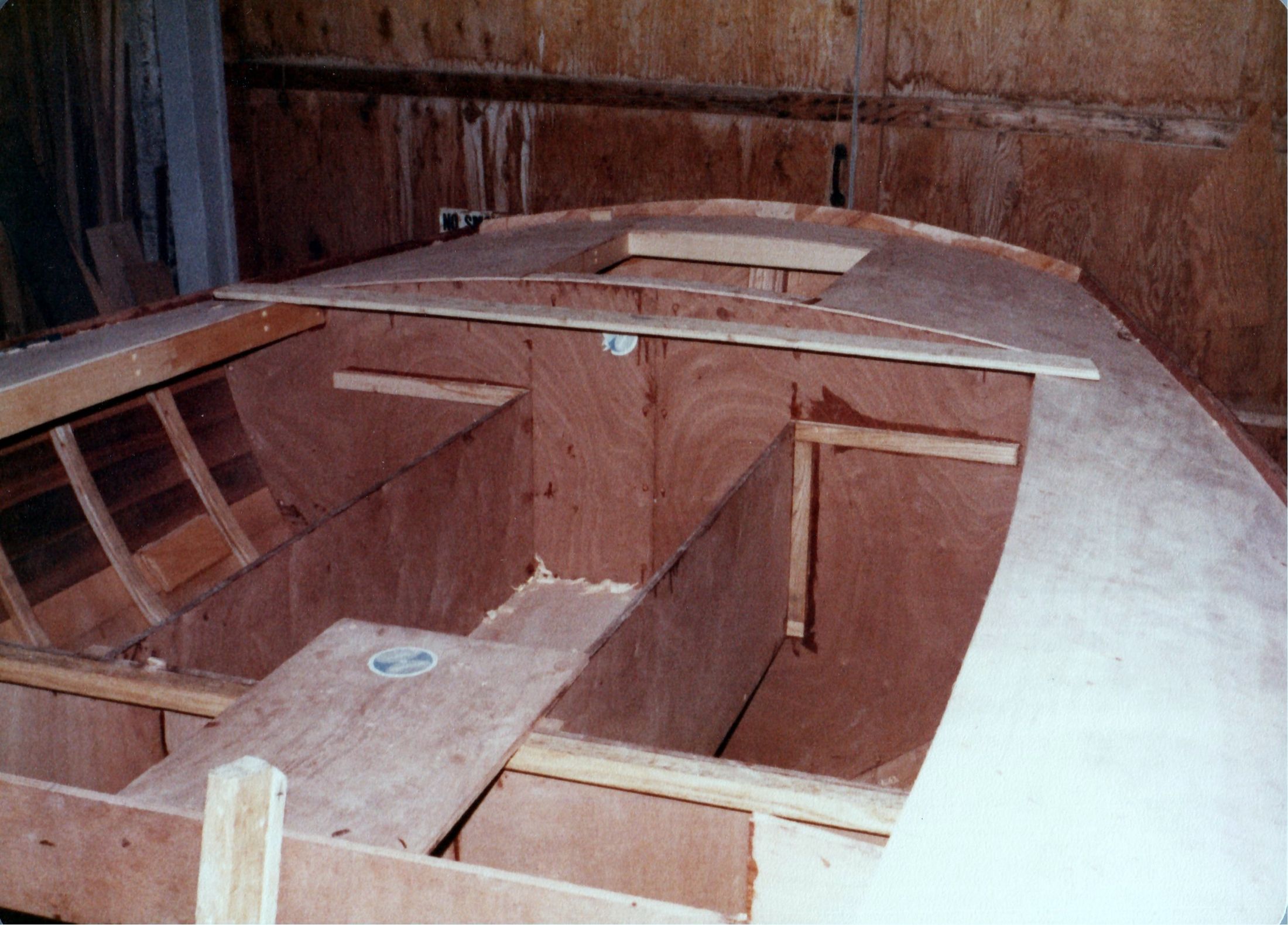

The deck and coach house from the bow — Plate 56

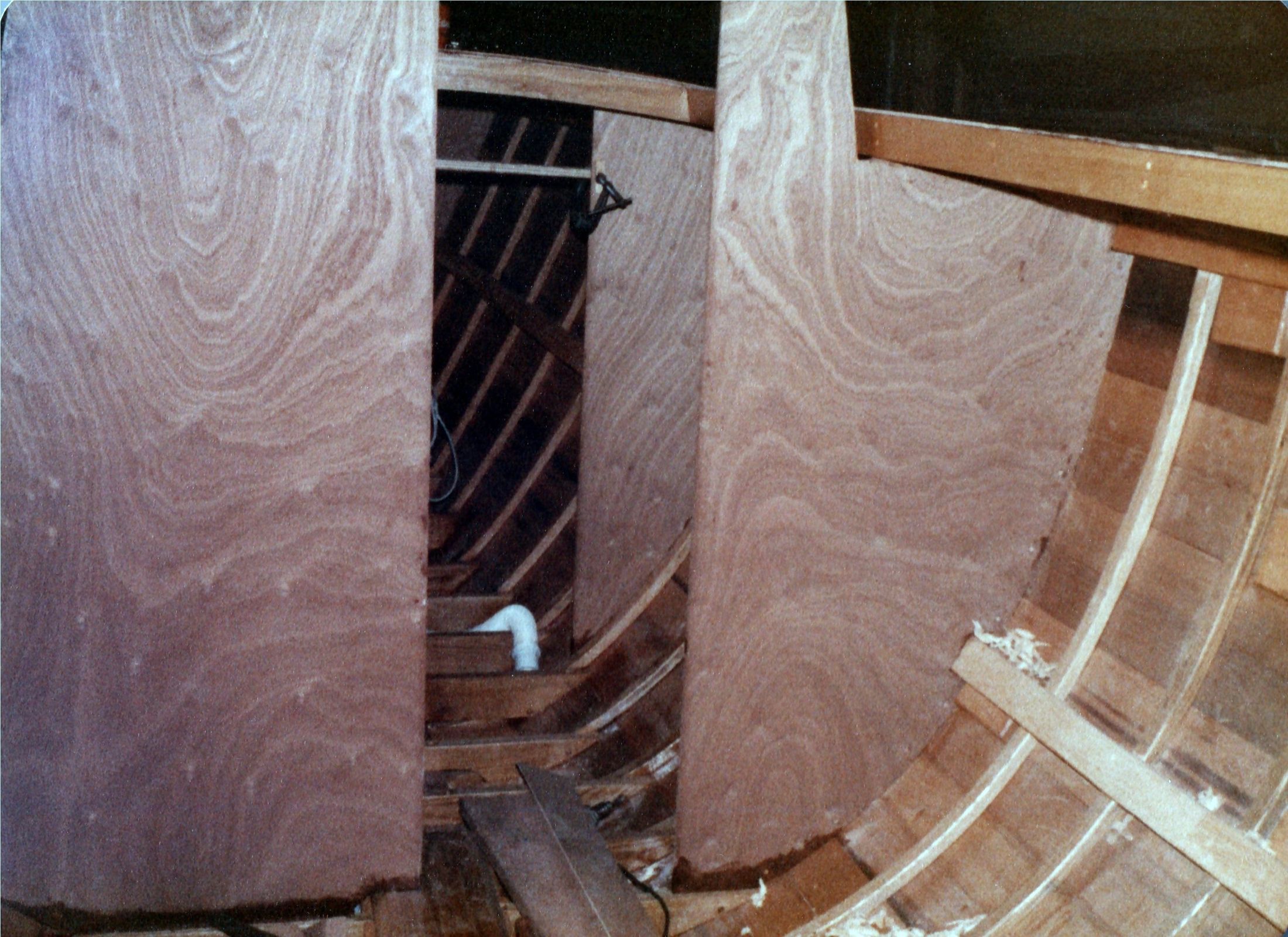

The grain of the mahogany coach house side, a corner post — Plate 57

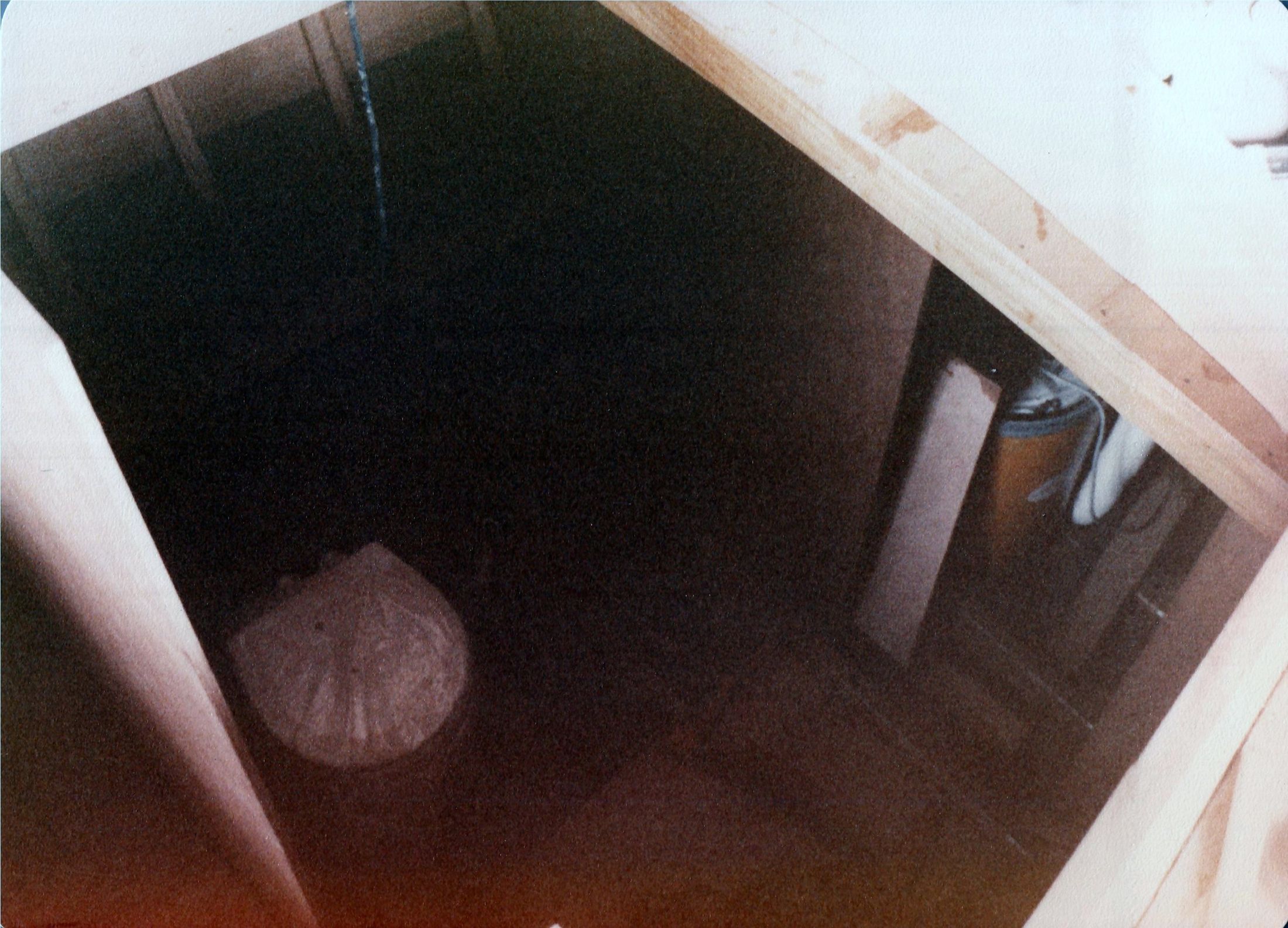

Inside the cabin, a lamp hanging in the dark — Plate 58

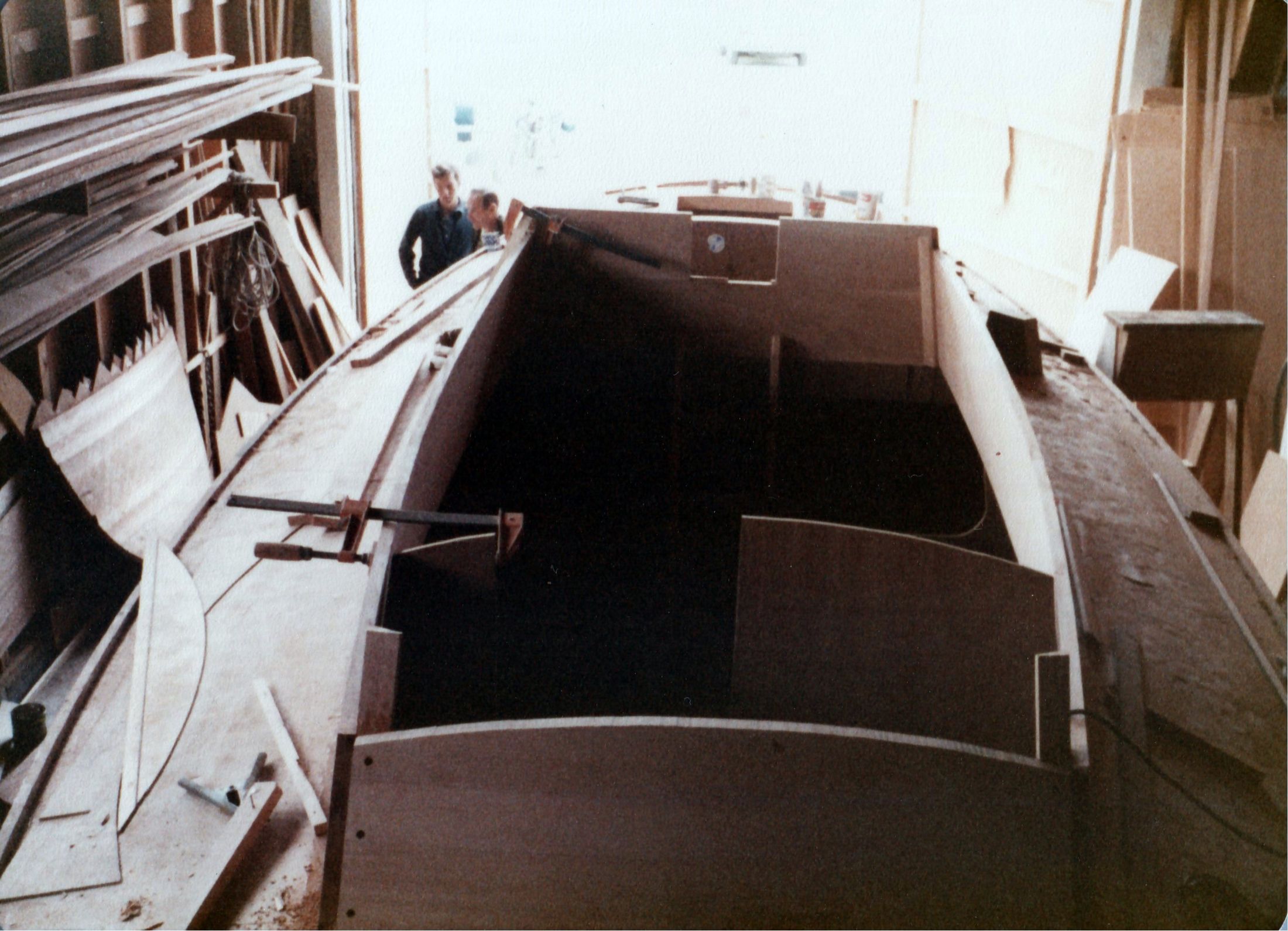

The coach house and cockpit from above, two men on the floor beyond — Plate 59

Items 43, 44, 49, 50 · Plates 60–63

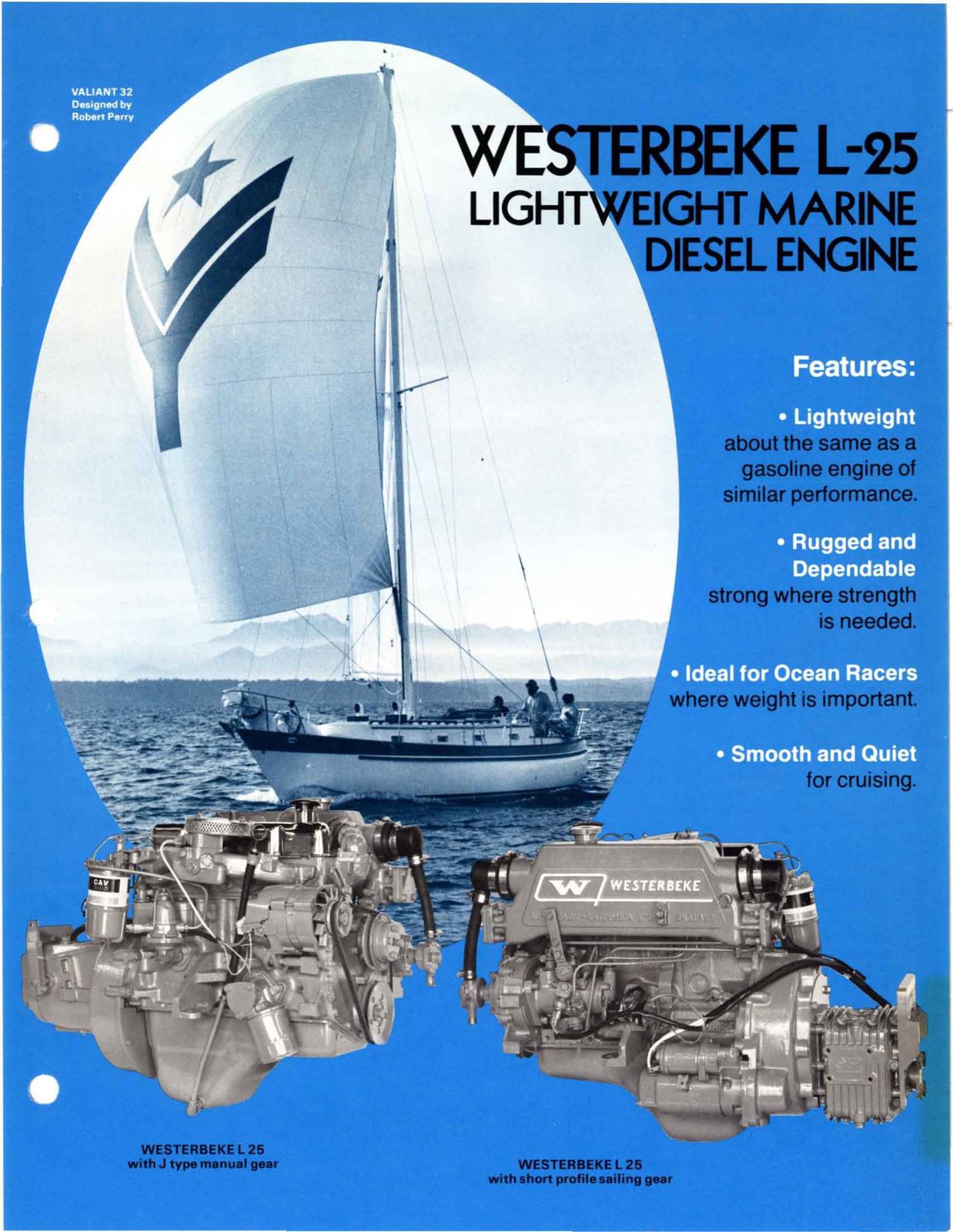

Engine beds, shafting

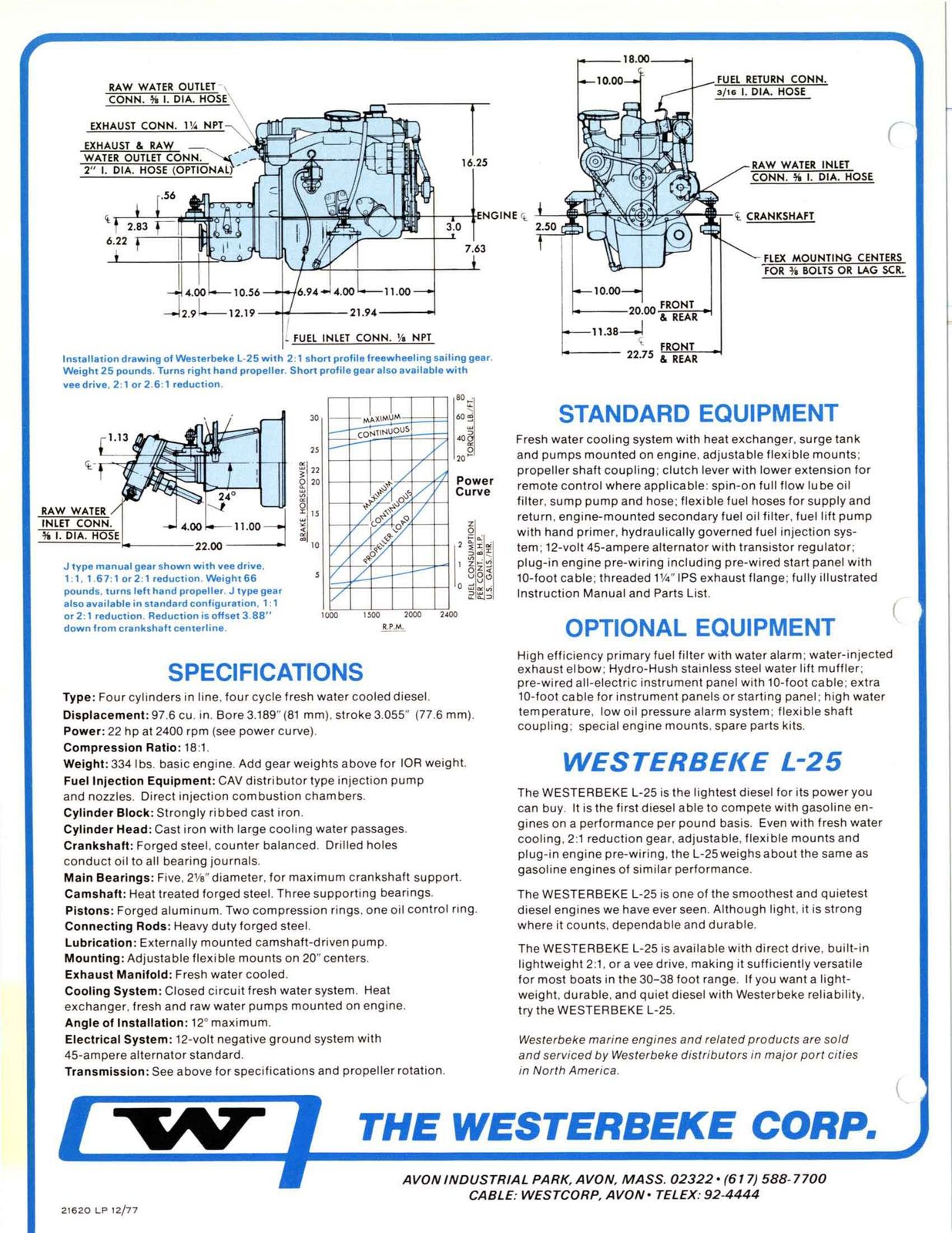

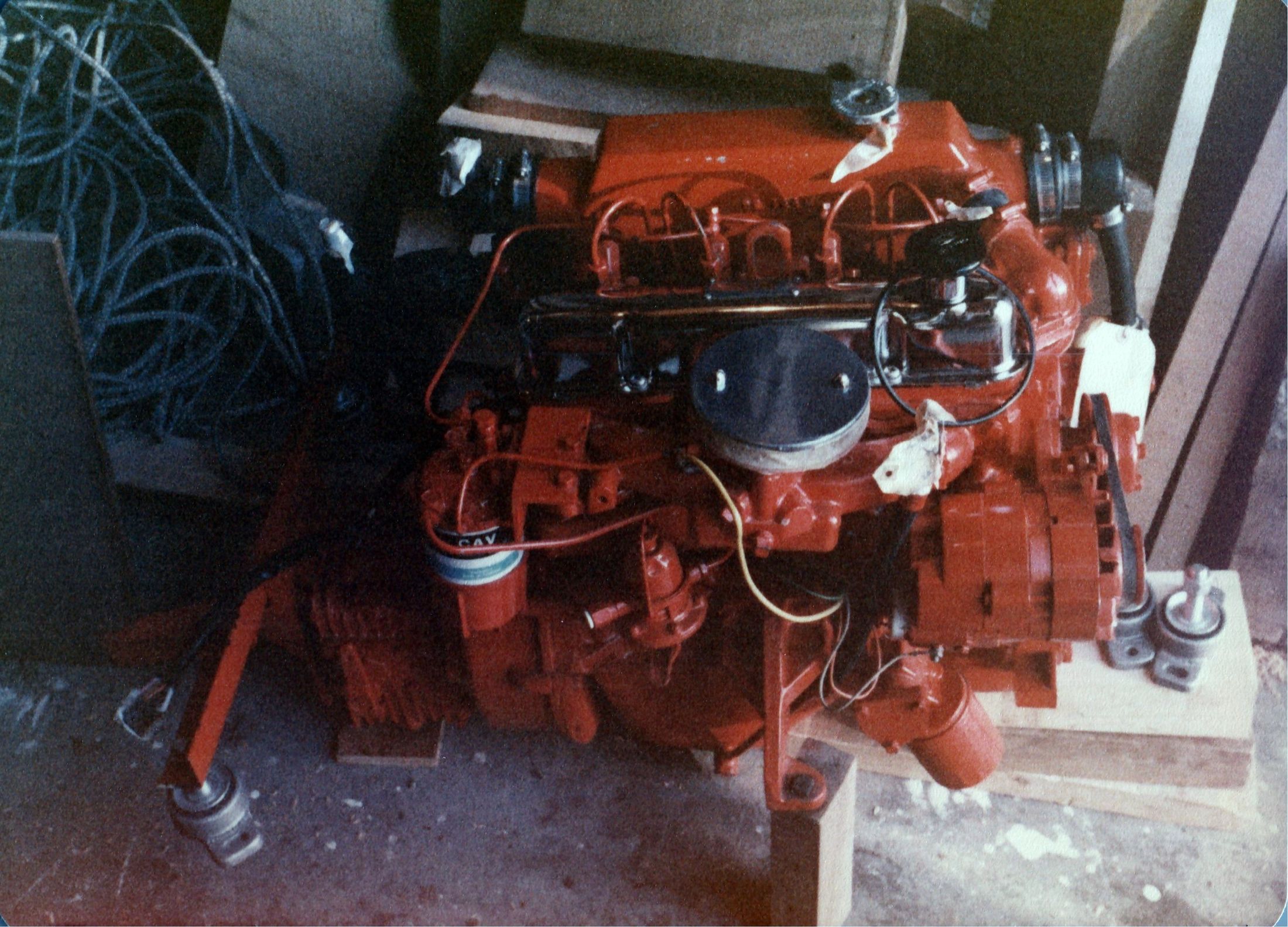

The red engine on a pallet on the shop floor — Plate 60

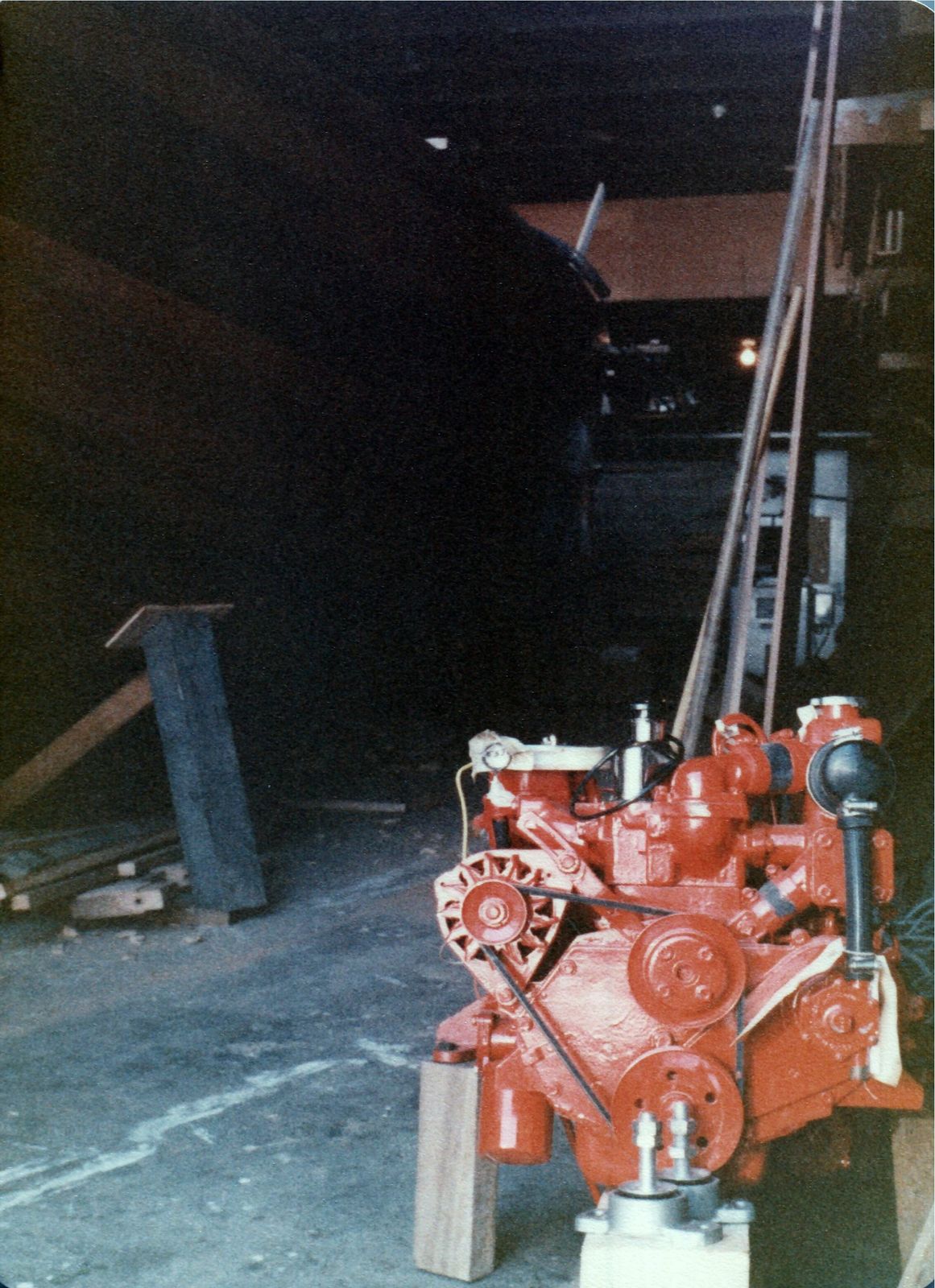

The engine waiting beside the hull — Plate 61

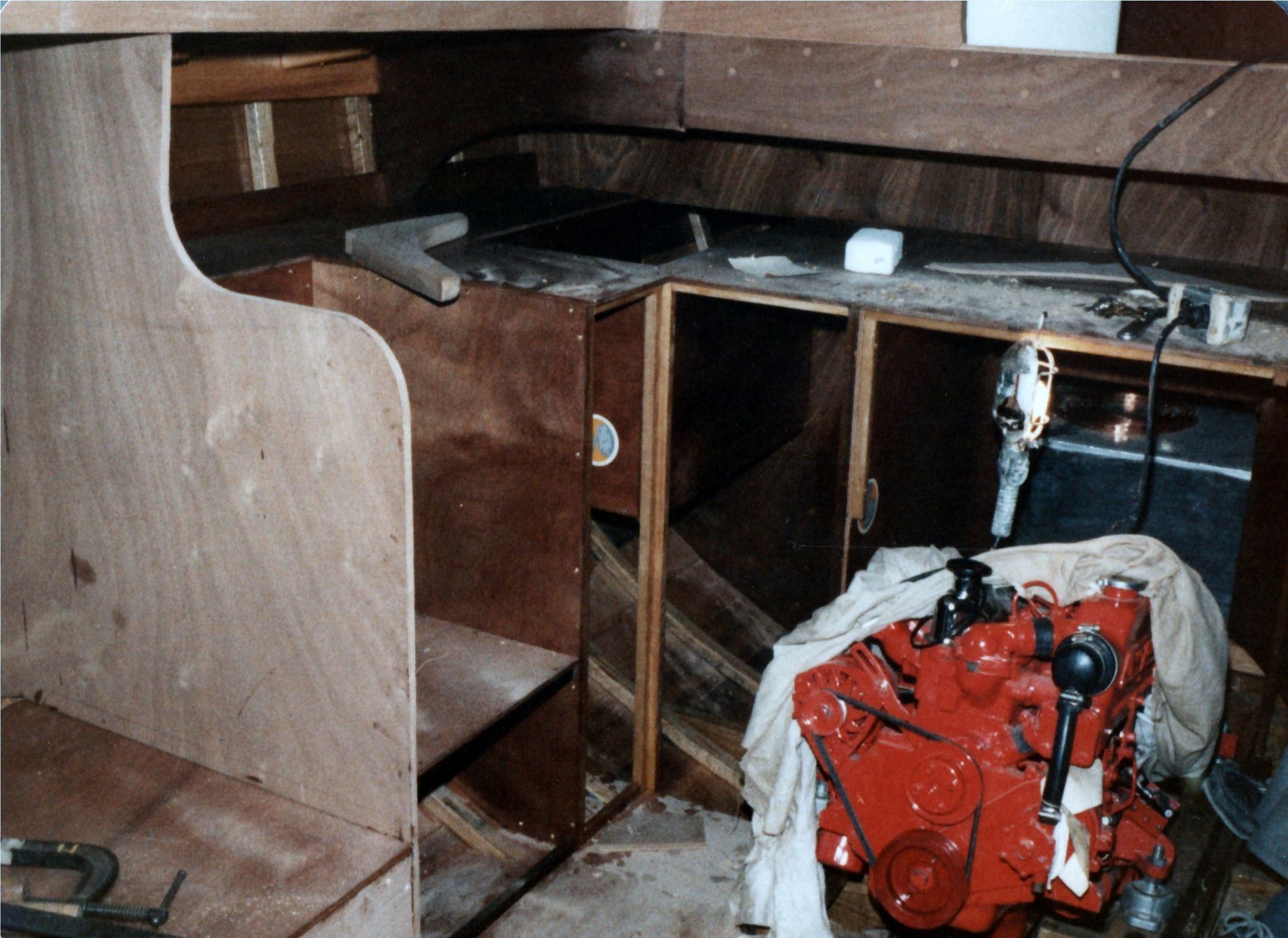

The engine beside the finished cockpit — Plate 62

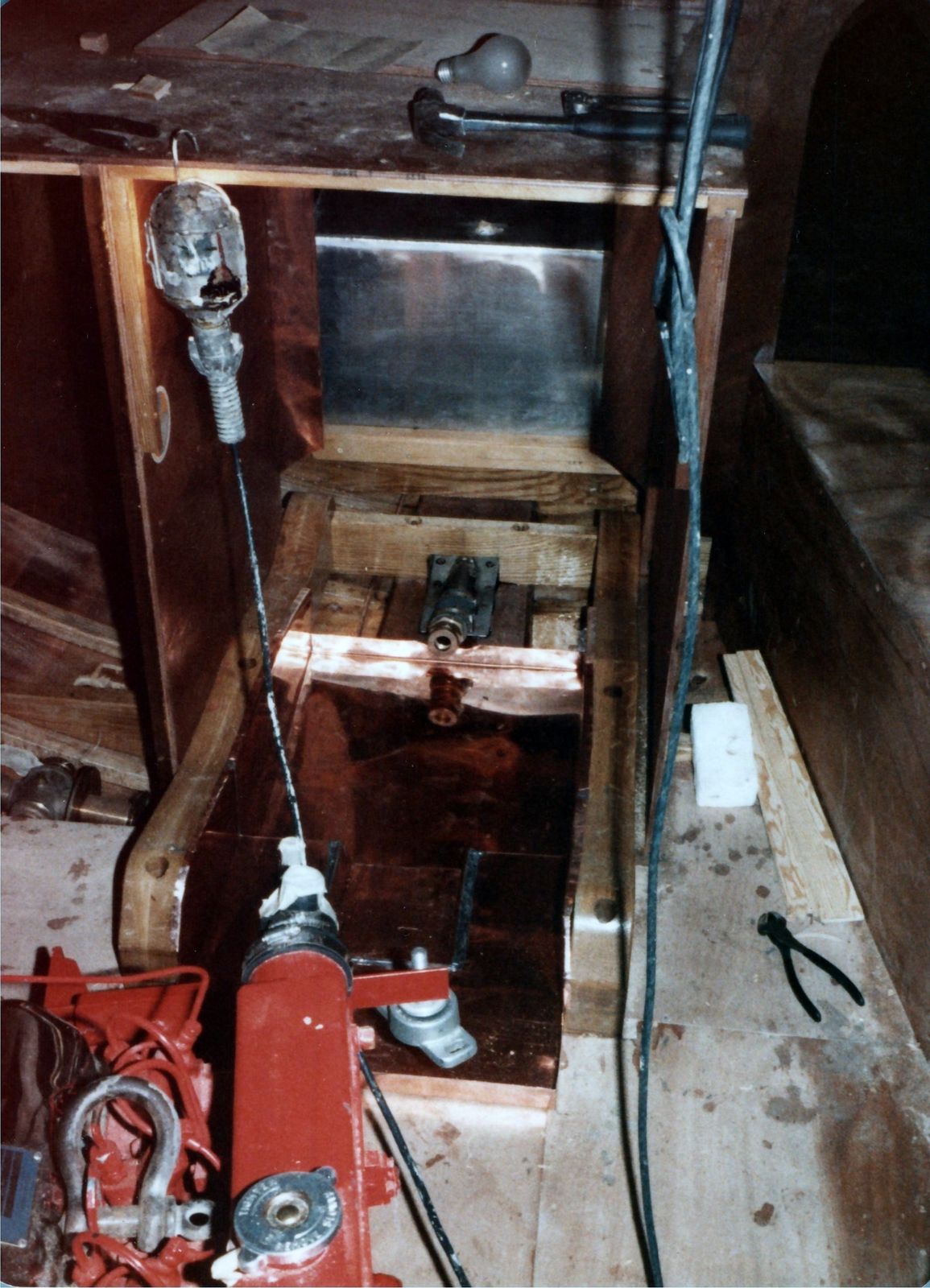

The engine lowered into its beds — Plate 63

Items 25–35 · Plates 64–70

Coaming, cockpit, cabin top

SpecificationAmendments as shown 9/1/78

✓ 25. Coaming - 1 1/8" Hond, Mahogany with cap and winch island as per detail.

✓ 26. Cockpit - Well sides to be ½" Bruynzeel ply epoxy coated, sole say 3/8" ply epoxied plus ½" teak on top laid in paraseal, screw fastened, sloped forward to drain properly. Seat tops and bridge deck 3/8" ply and ½" teak as per sole. Bridge deck to slope aft to drain. Lay margin boards in bridgedeck and sole and locker and seats.

✓ 27. Cockpit Beams - and headers say same dimensions as for cabin top on 12" centers, spruce.

✓ 28. Cockpit Seat Locker - same finish as seats, except fitted to drain properly and recessed to be flush top and face, see detail. Hinged at back, through bolt hinges.

in pencil: NA 29. Cabintop Beams - 1¼" x 1½" Lam. Spruce on 12" centers, notched into headers on trunk sides. in pencil: Lam 3 layers of ¼ ply, dynel + epoxy covered

✓ 30. Partners - 3 layers of ½" ply laminated for 2 frame spacings

✓ 31. Knees - in way of partners of lam. wood or fabricated, through bolted, arms to be min. 12", also 1 set of knees hardwood at station 6 approx., fastened same way

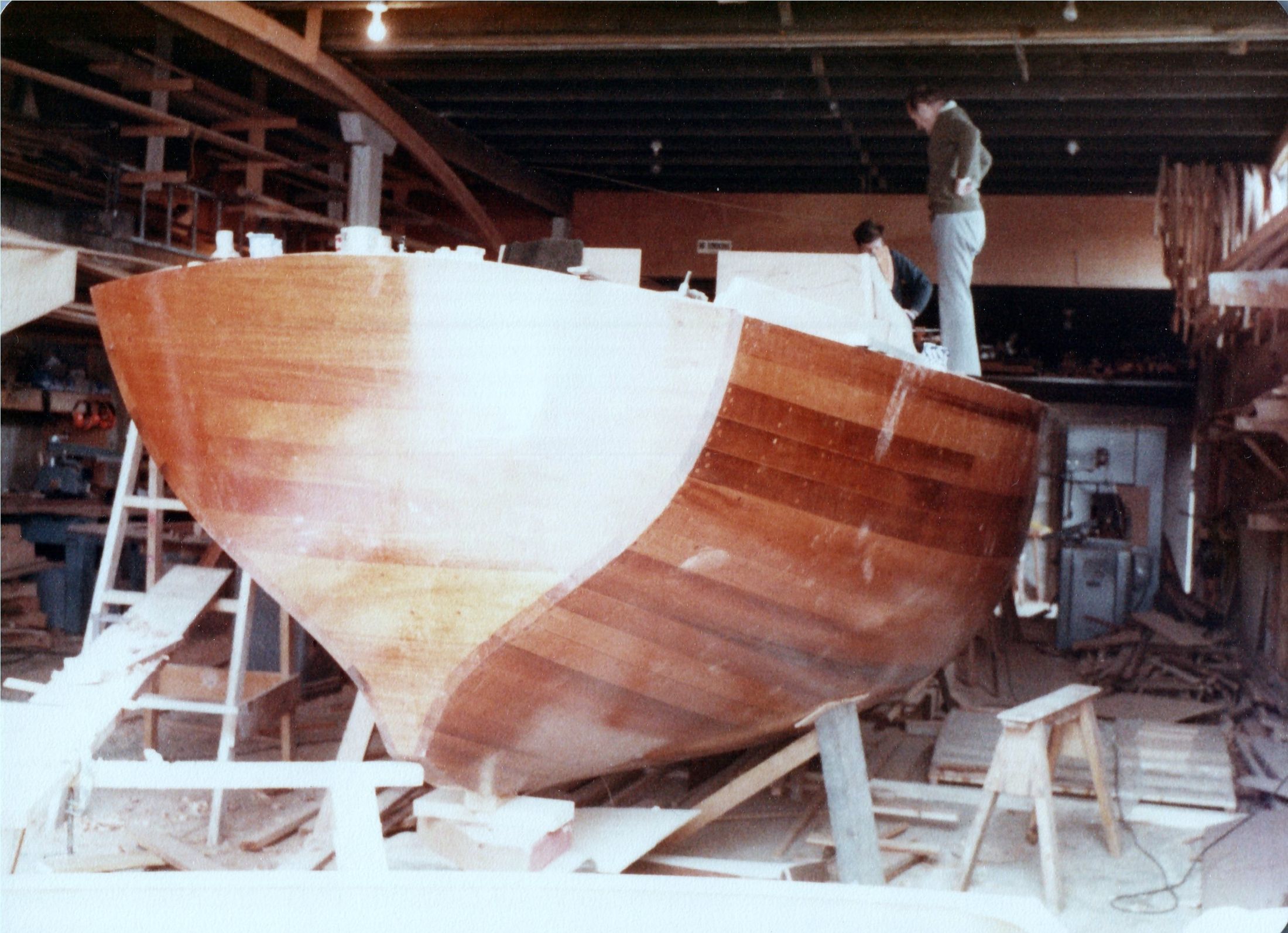

The hull with its deck on, seen from the bow, a man on the coach roof — Plate 64

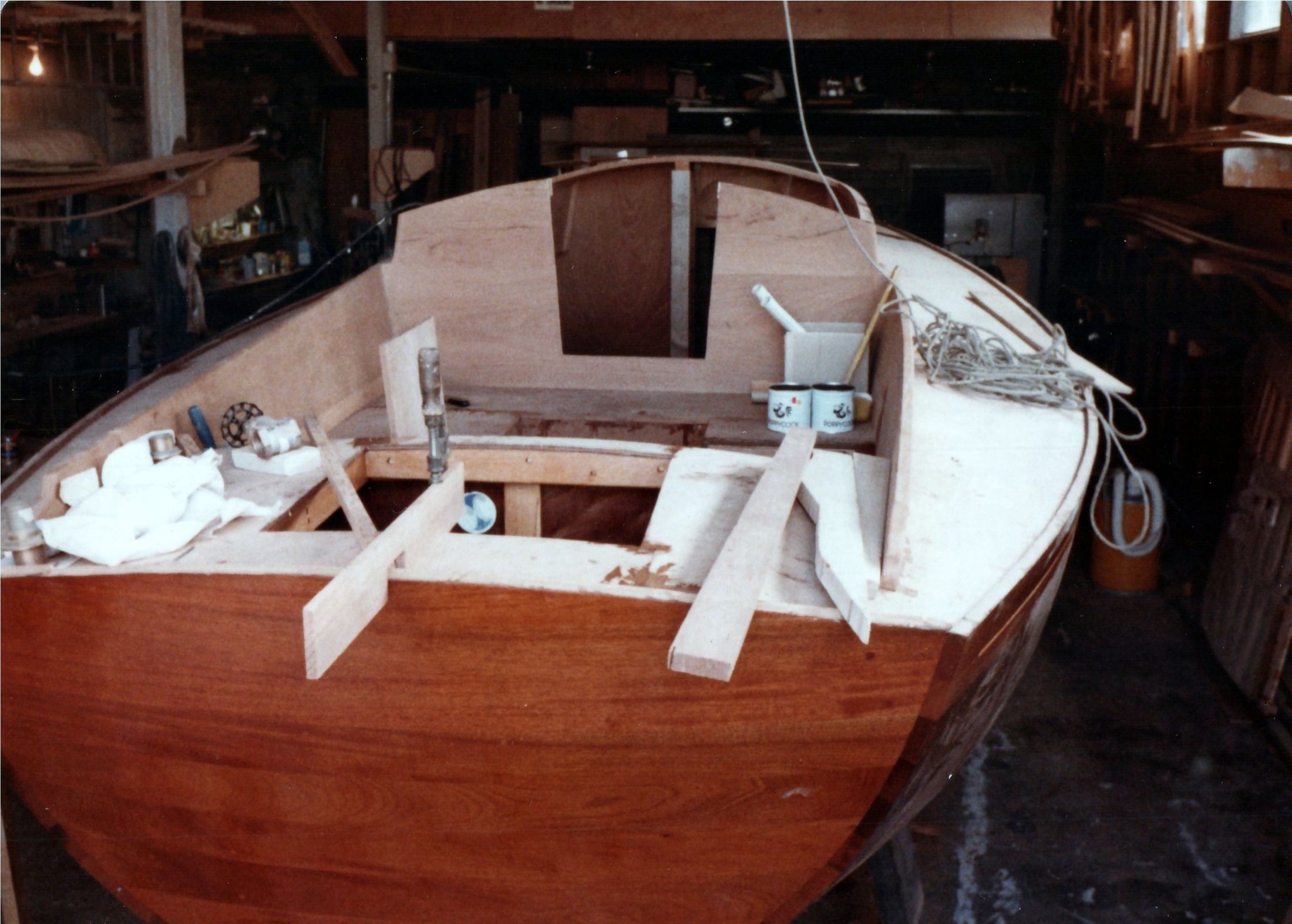

The cockpit and coaming from the stern — Plate 65

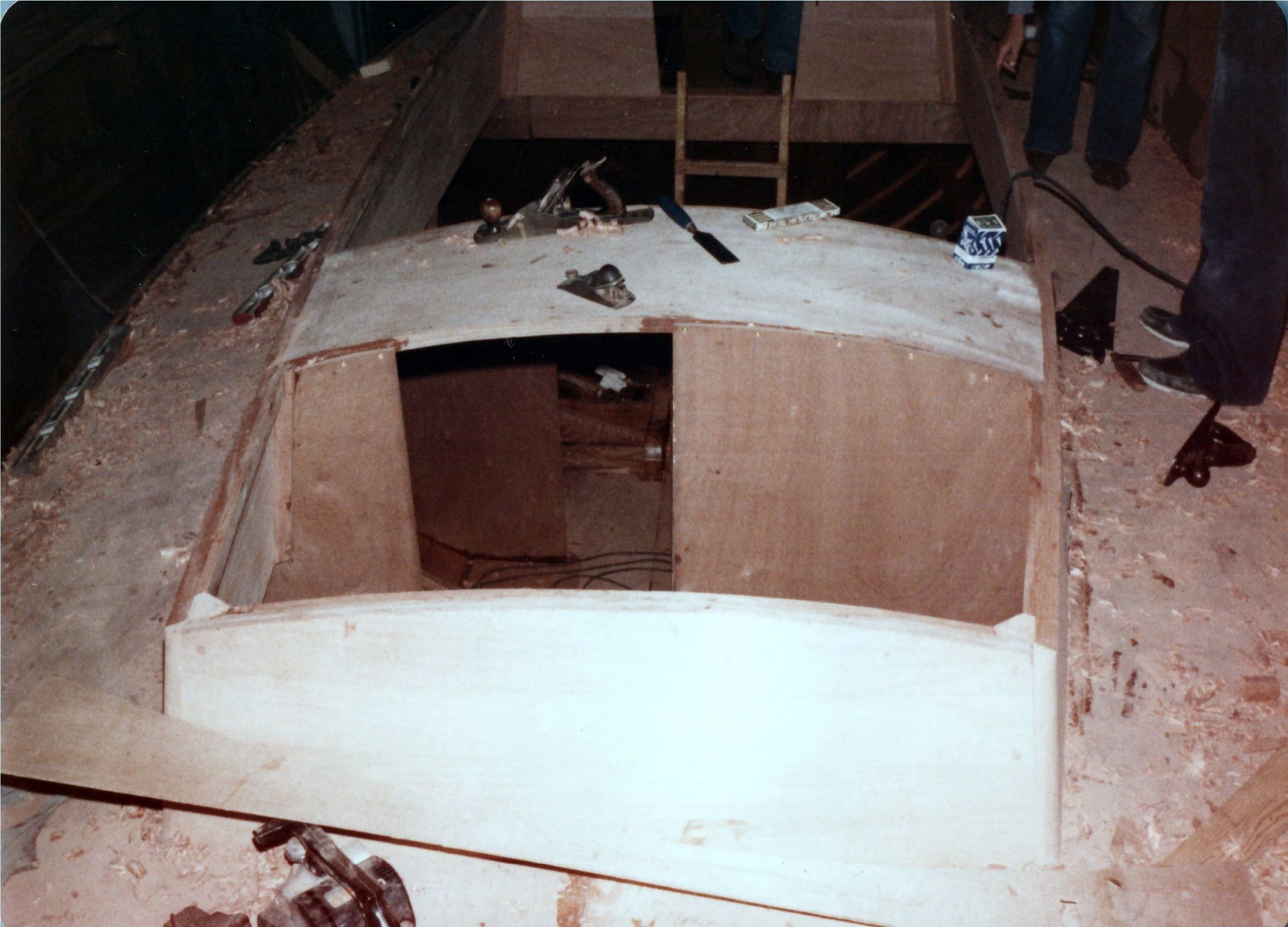

The companionway and hatch garage from above — Plate 66

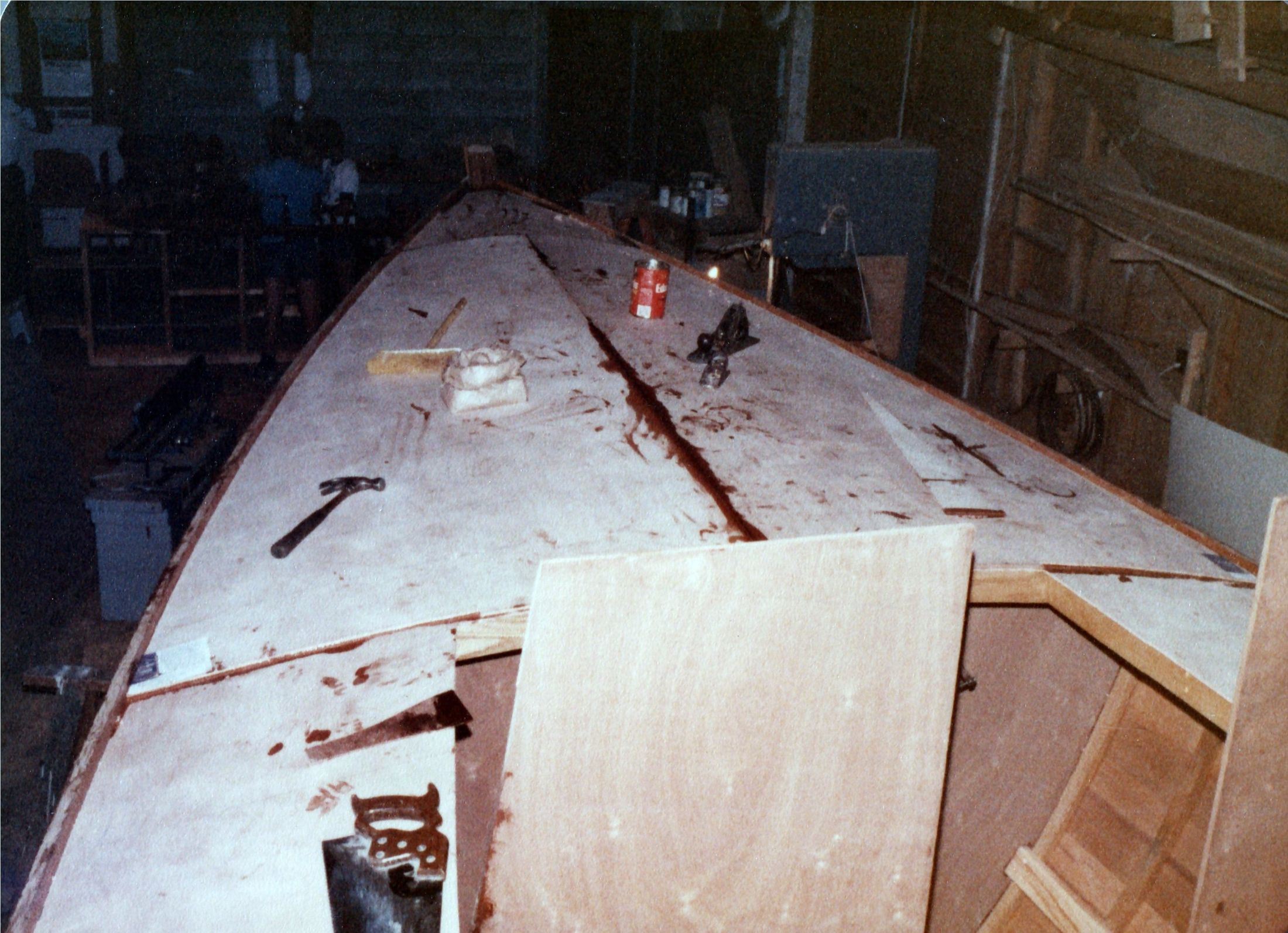

The side deck and coaming, tools on the cabin top — Plate 67

SpecificationAmendments as shown 9/1/78

✓ 32. Decking - 2 layers of ¼" ply epoxied and 1 layer of ½" teak laid on top, bedded into paraseal and screw fastened.

✓ 33. Hatches - Fore and lazarette, coaming and trim in teak as per detail

✓ 34. Cabin top and hatch garage - 2 3 layers of ¼" ply epoxy coated to be covered with dynel & epoxy and painted with monopoxy (Brolite). Cabintop finished with mahog. molding.

✓ 35. Companionway hatch - Hond. mahogany with smoked ~~perspex top as per detail~~ in pencil: lam. Honduras, to stow in garage. Sill to be 1½" high.

✓ ~~36. Molding - aroung base of house ¼" round to be teak bedded in paraseal, screwfastened.~~

✓ 37. Splashboard - Hond. mahogany say 1 1/4" x 5/8" x 2" high to be raised over garage and form lip approx. 1" high to take dodger, and to follow down to cockpit coaming.

✓ 38. Dropboards - Hond. Mahogany Epoxy coated, sloped aft at edges say 30° to fit tight to each other,dim. say 1" finished.

✓ 39. Toe Rail - 1¾" x 1" x 2½" high fastened with 3½" x #14 screws,widened in way of chocks to accomodate them.

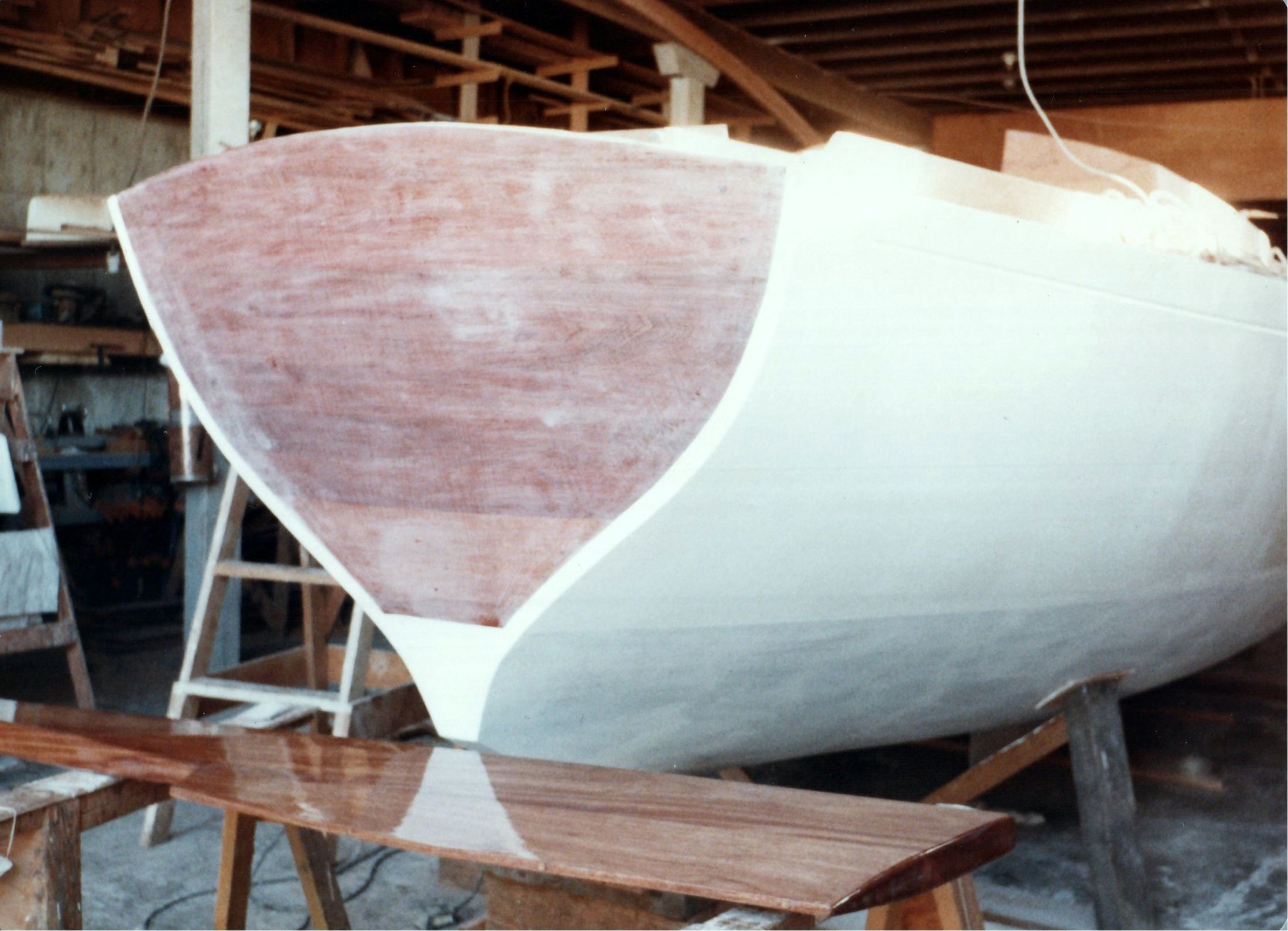

The hull primed, the bow turned toward the door — Plate 68

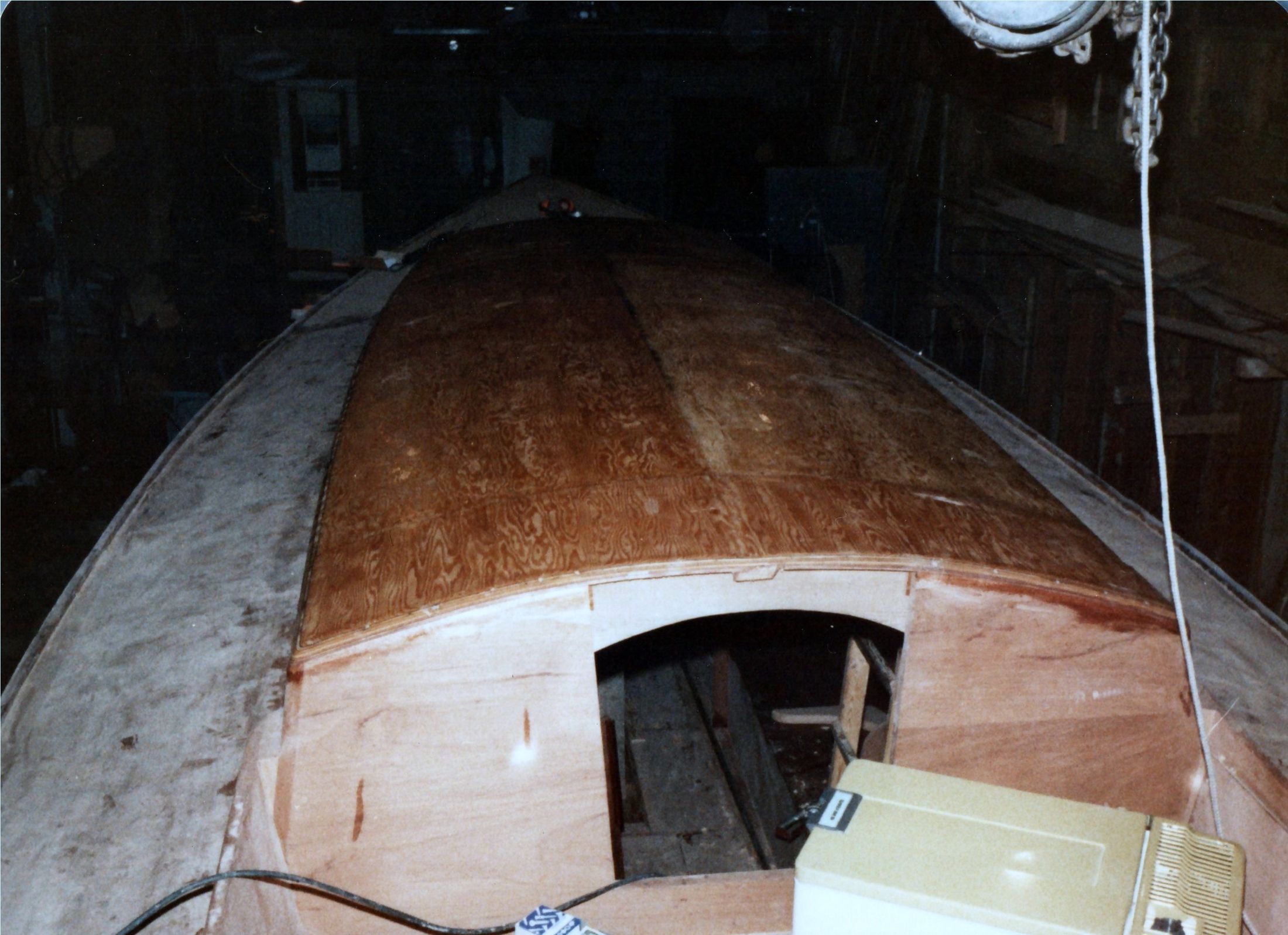

The cabin top and foredeck, primed — Plate 69

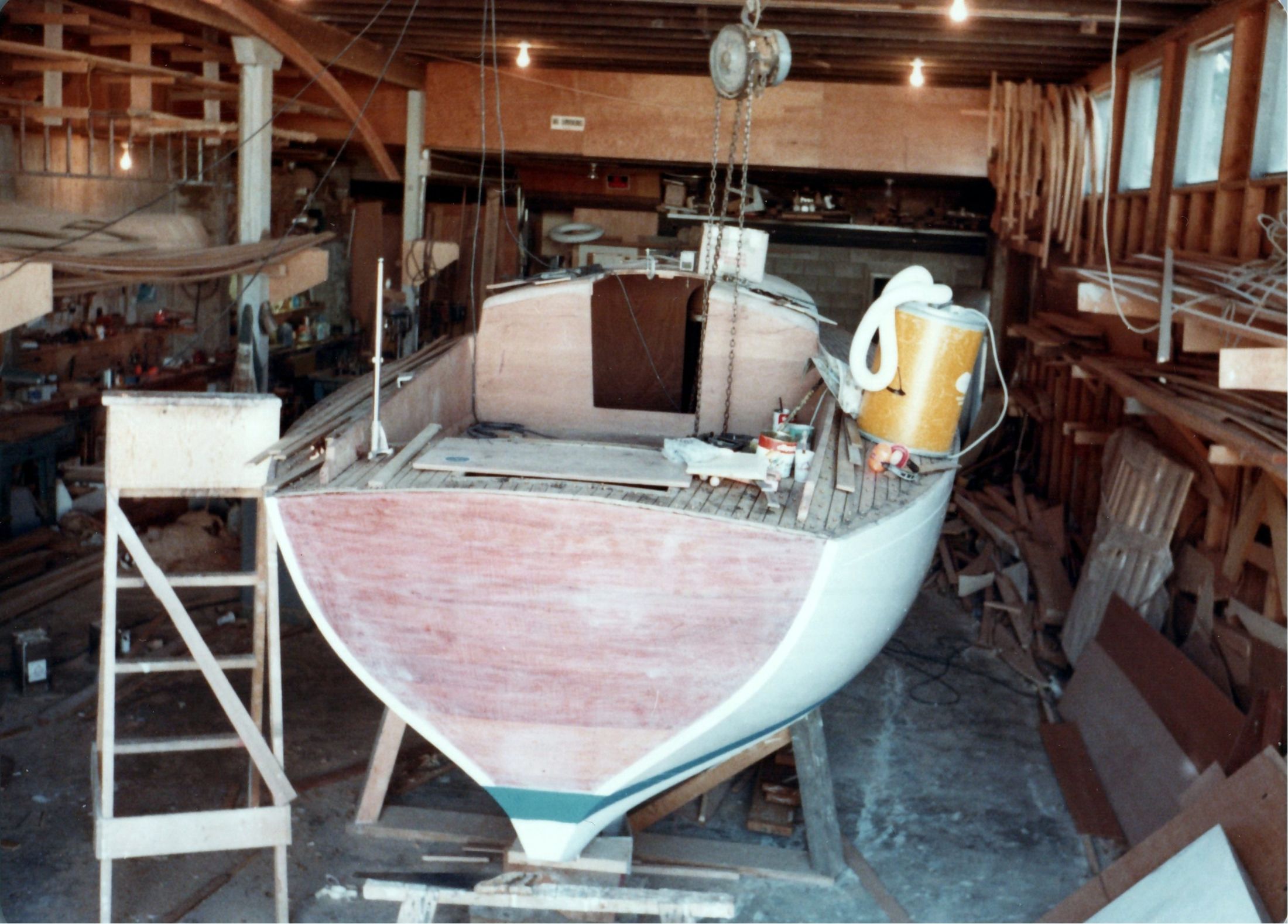

The boat in the shop with cabin and cockpit complete, a stepladder at the bow — Plate 70

Items 40–47, 55–57 · Plates 71–75

Waterline, decks, finish

SpecificationAmendments as shown 9/1/78

✓ 40. Chainplate Backing - 2 layers of ½" Bruynzeel laminated and throughbolted to framing to run between bulkheads and down to shelf, see detail in pencil: amended as per box

✓ 41. Chainplates - S.S. ~~1¼" x ¼"~~ x 17" bolted to backing and clamp as per detail. Transom plates to bolt through transom and backing. Use min. 6 3/8" S.S. bolts each (nuts inside) in pencil: Gussets tied in as Upper backing

✓ 42. Stemplate fitting - manufactured stainless as per sketch, screwed and bedded as required. It may incorporate bowroller.

✓ 45. Waterline and Covestripe - scribe and paint boottop 2 coats antifouling, 2 coats monopoxy for covestripe.

✓ 46. Ports - min. 6 ports (fixed) ~~5/16" plate glass~~ in pencil: perspex cut and rabetted from outside, bedded in PRC and trimmed as per Oliver "Distant Drummer"

47. ~~Tierods - 3/16" S.S. to run through cabinsides to prevent splitting.~~

in pencil: Use 1½ x 3/8 SS

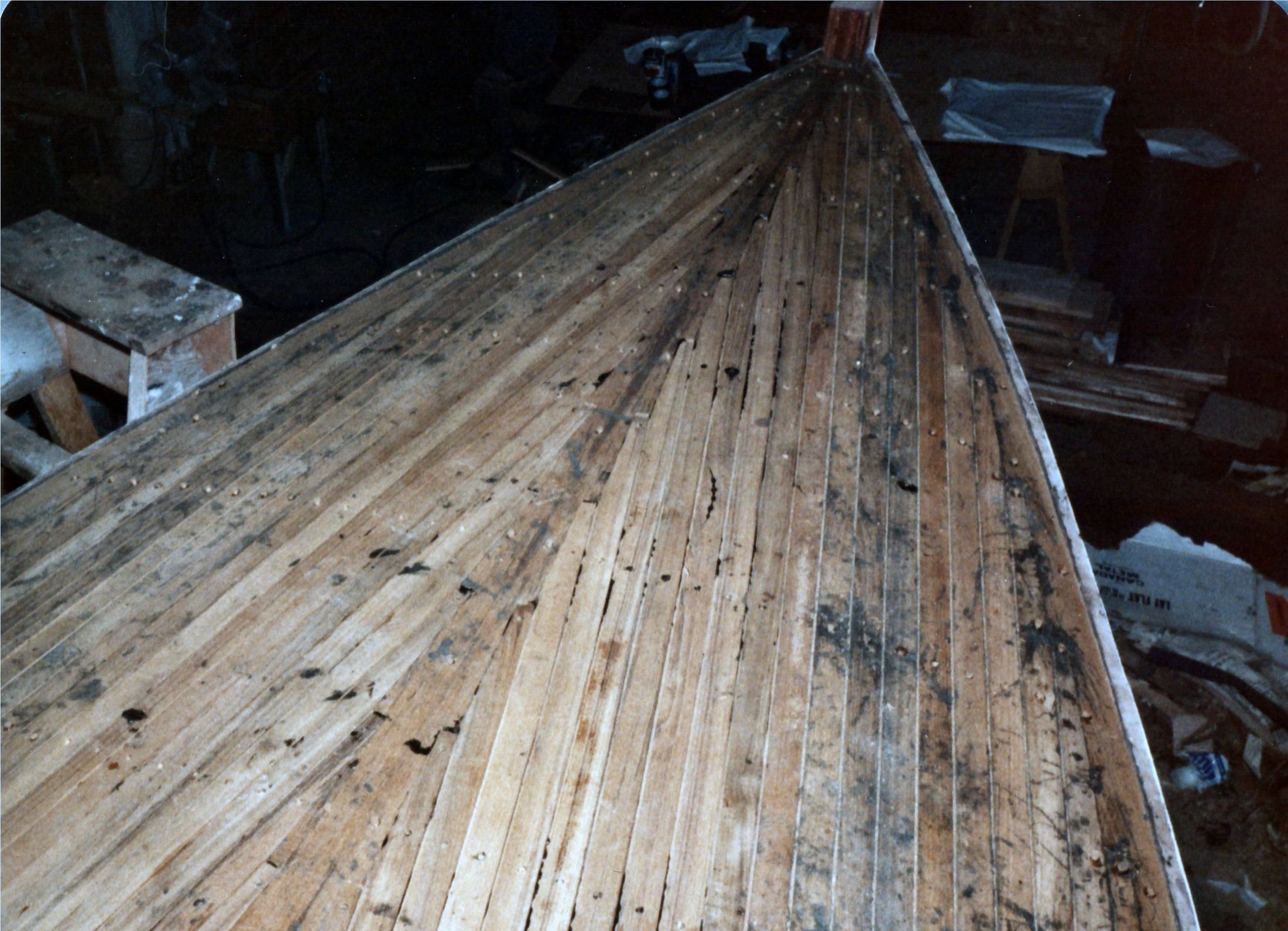

The laid teak deck from the bow, plugs over the screws — Plate 71

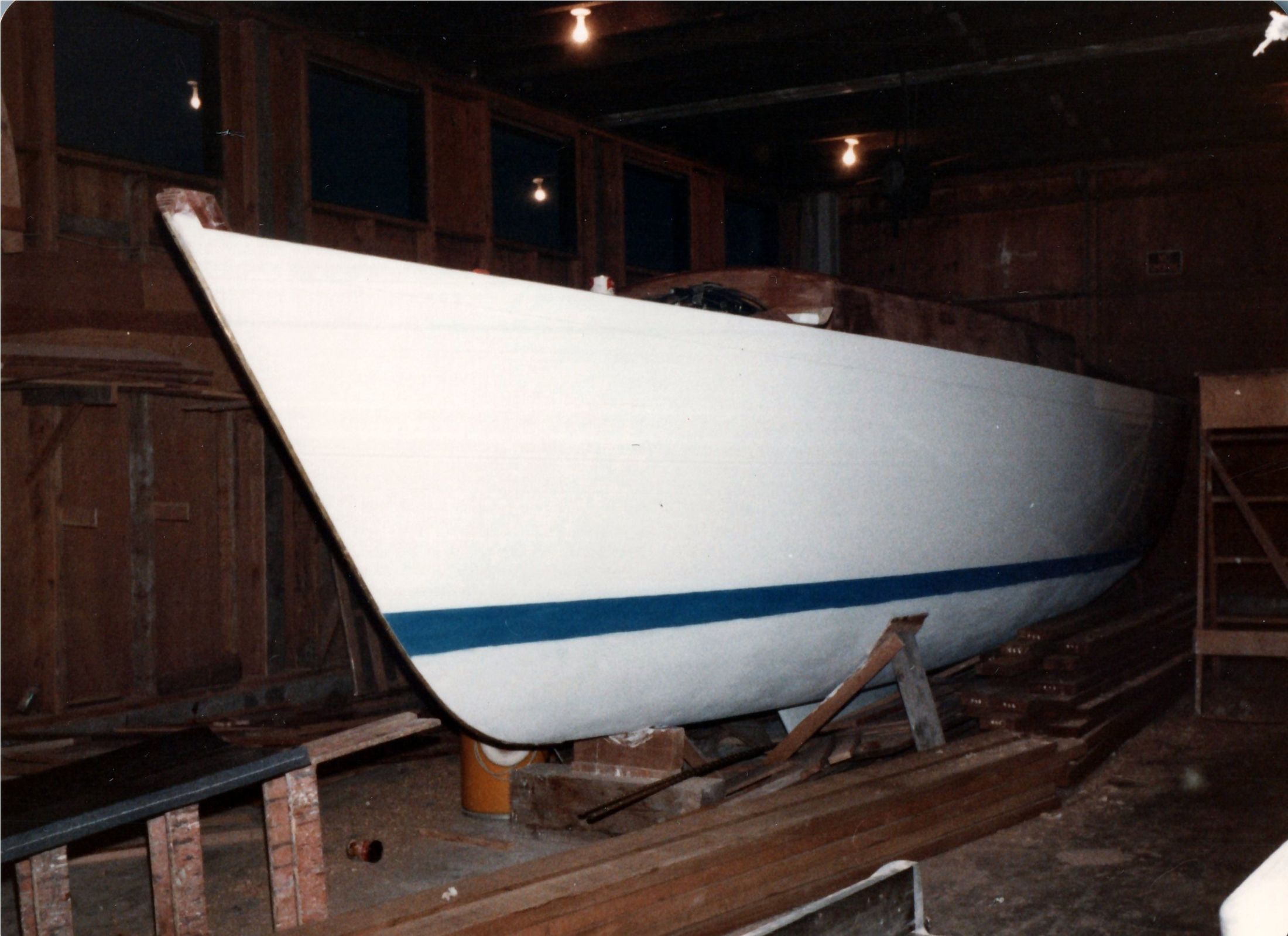

The hull painted white with the boot top struck in blue — Plate 73

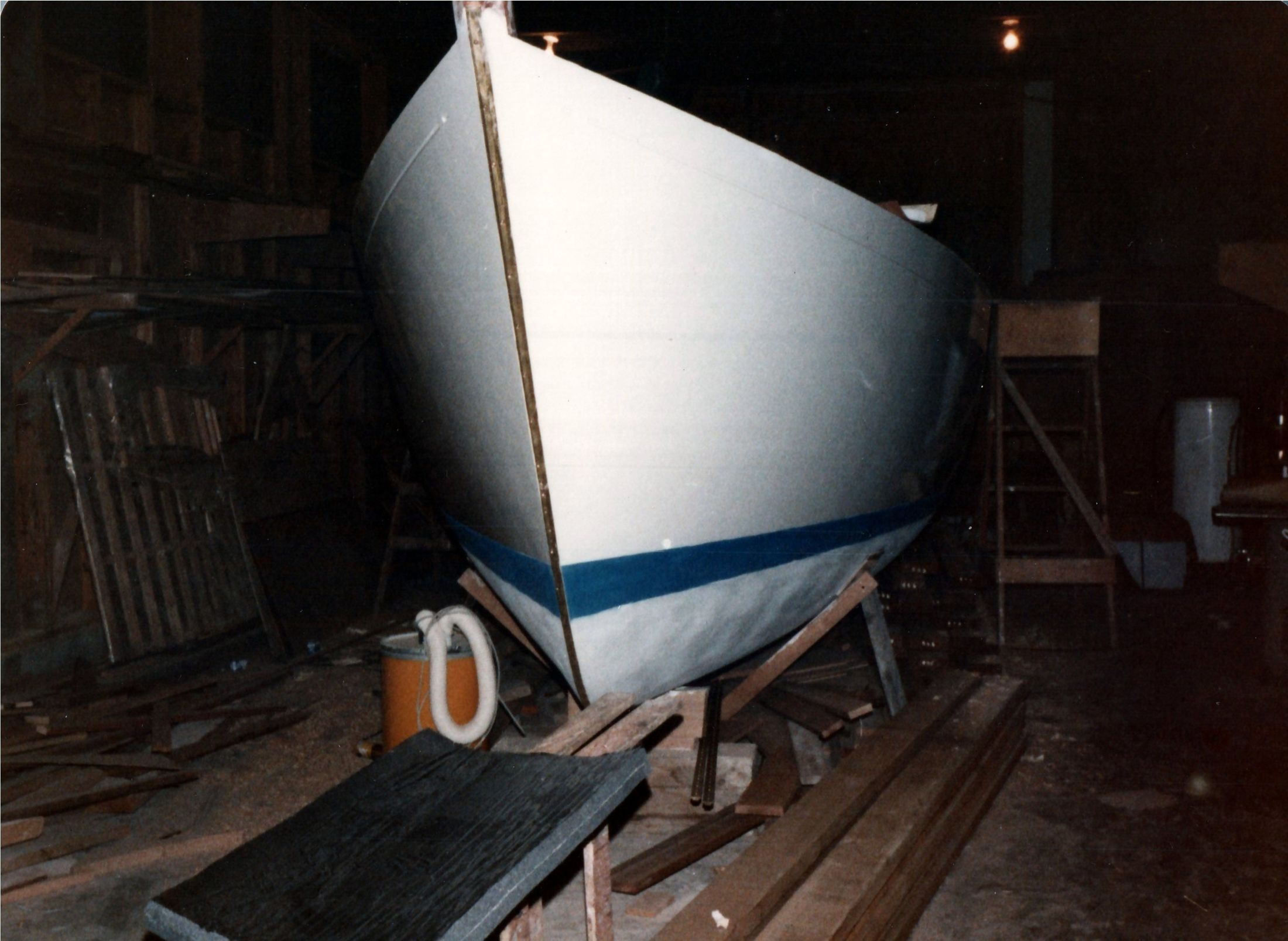

The painted hull from the bow, ready to leave the shop — Plate 74

SpecificationAmendments as shown 9/1/78

✓ 55. Ballast and Keel - Boring of keel bolts and installing thereof. Bedding of keel in PRC.

56. Exterior Finish - Mahogany: sanding and coating with epoxy as Oliver's boat and 1 coat of Captain's Varnish. Teak: sanded and left bare, decks to be laid in paraseal and screwed to beams and plugged, seal screwholes also. in pencil: Painting by owner + sealing

✓ 57. Bedding and Fastening - all exterior hardware,trim, etc. to be bedded properly in lifecaulk or equivalent. Fasteners in deck and trim to be dipped into PRC before installing to alleviate chance of leakage.

in pencil: Verbal agreement on above specifications as shown, except for painting and varnishing 1300 to 1350 hours max.

in pencil: Owners will be allowed to paint and varnish in shed while boat is under construction.

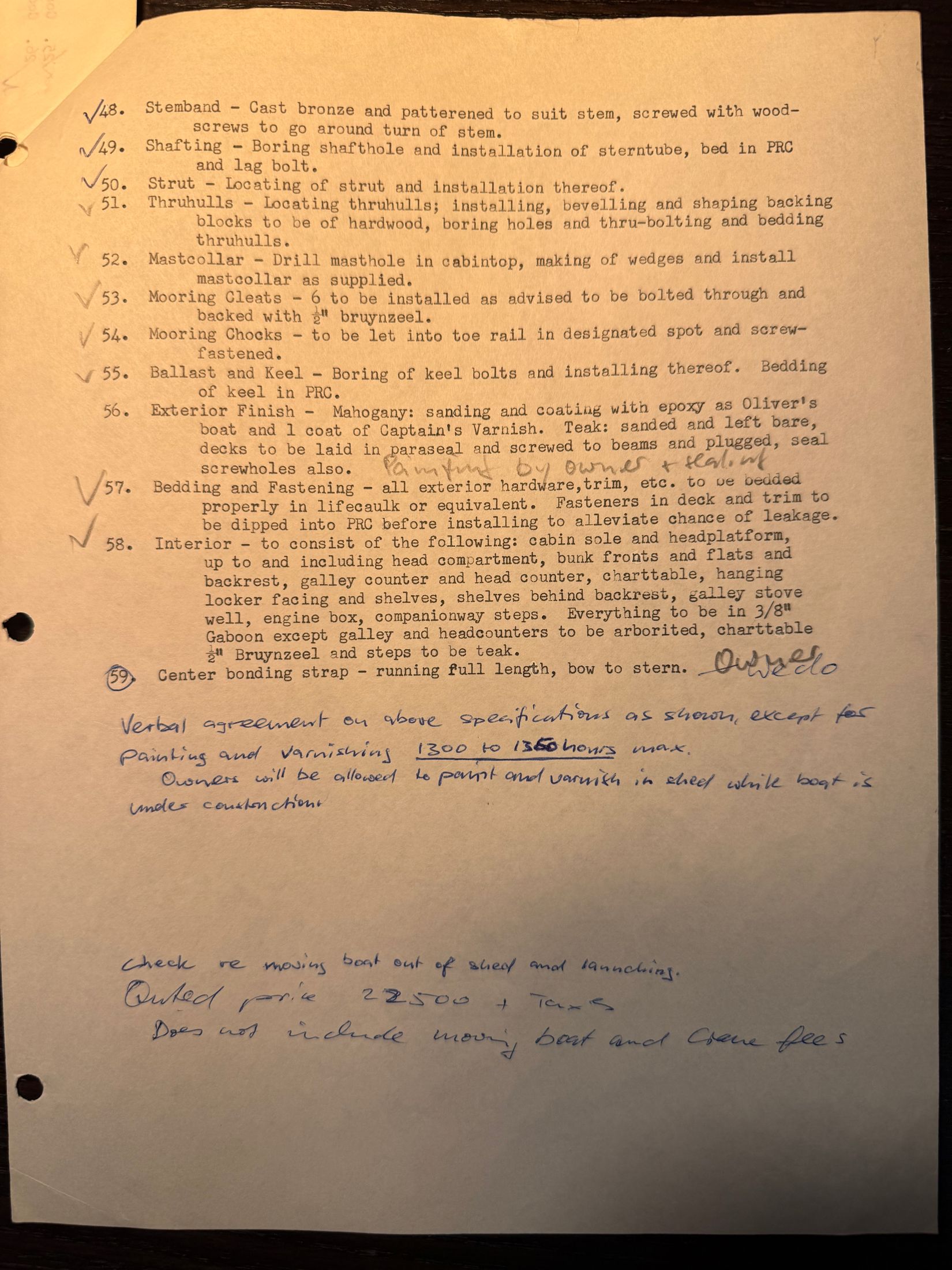

Specification page 3, items 48 to 59, with the handwritten agreement at the foot — Plate 75

Sidney, B.C. · Plates 76–86

Out of the shed

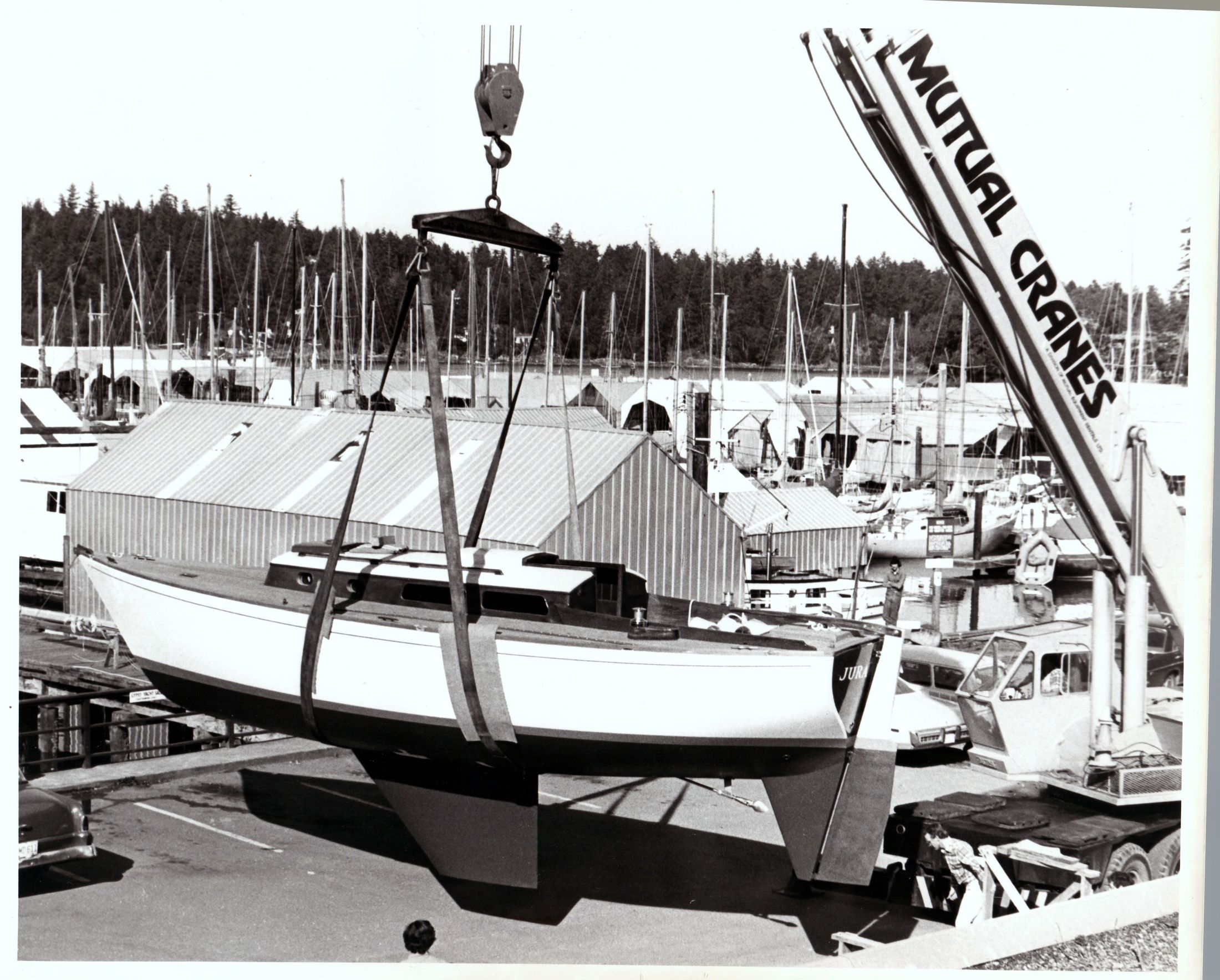

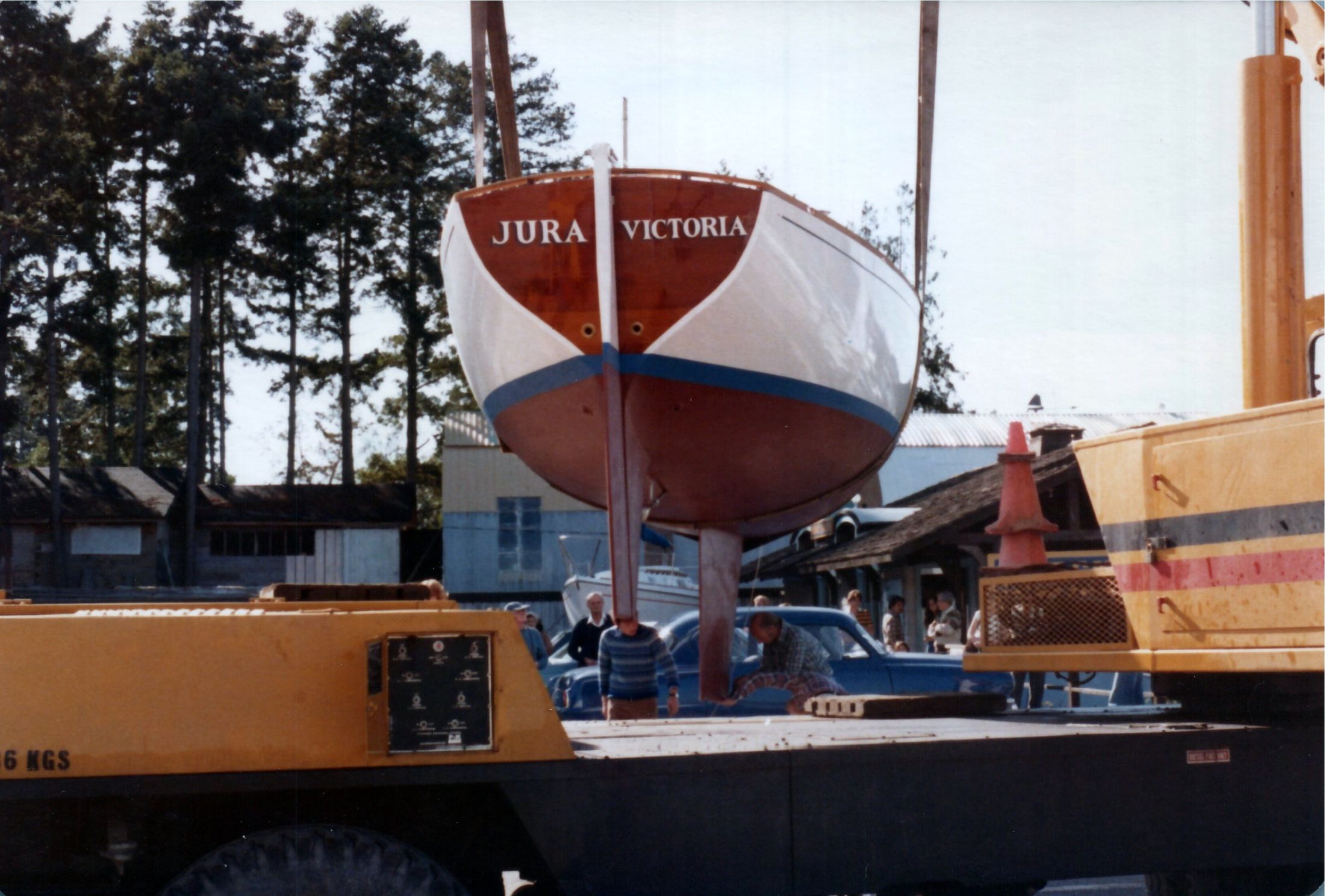

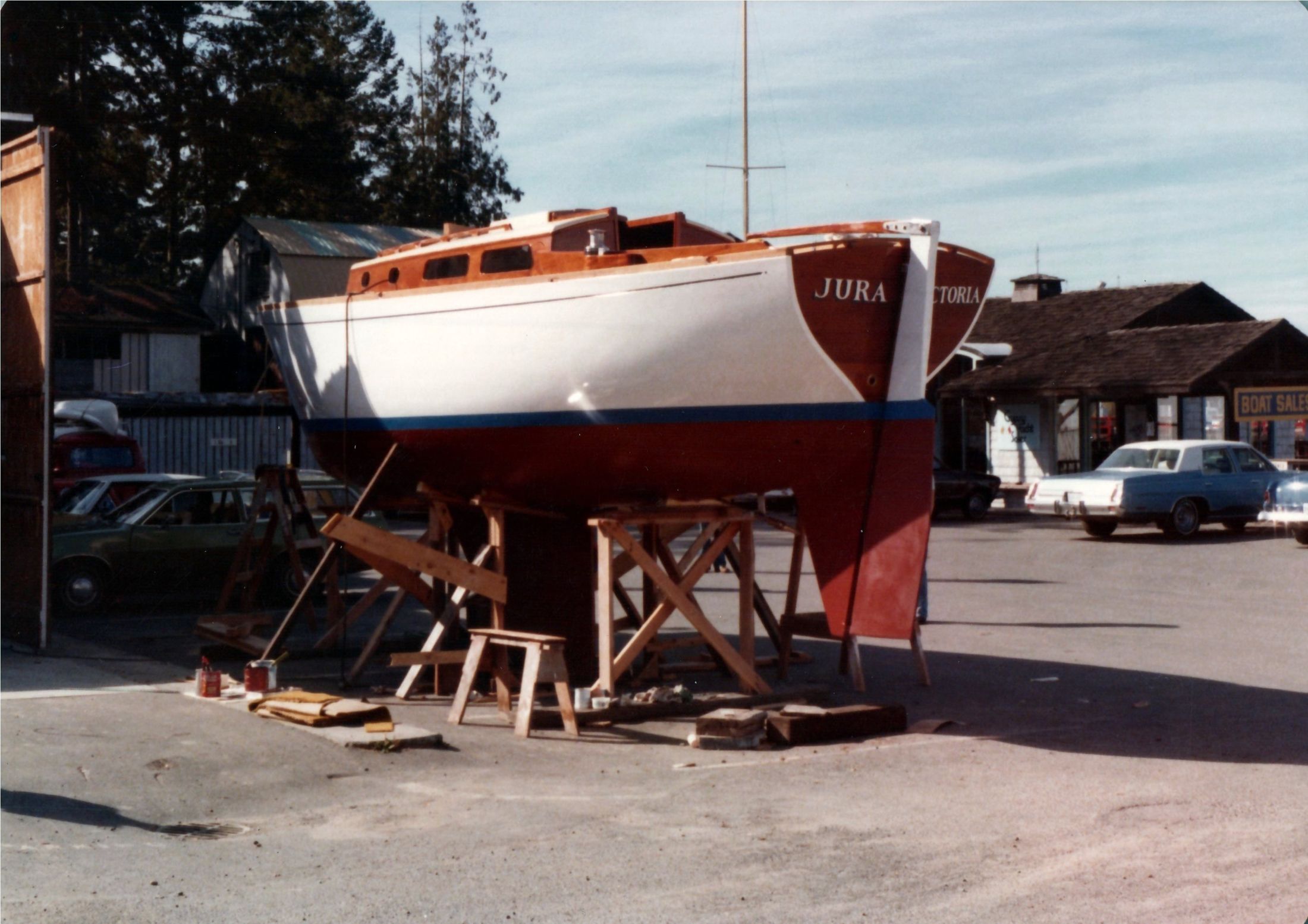

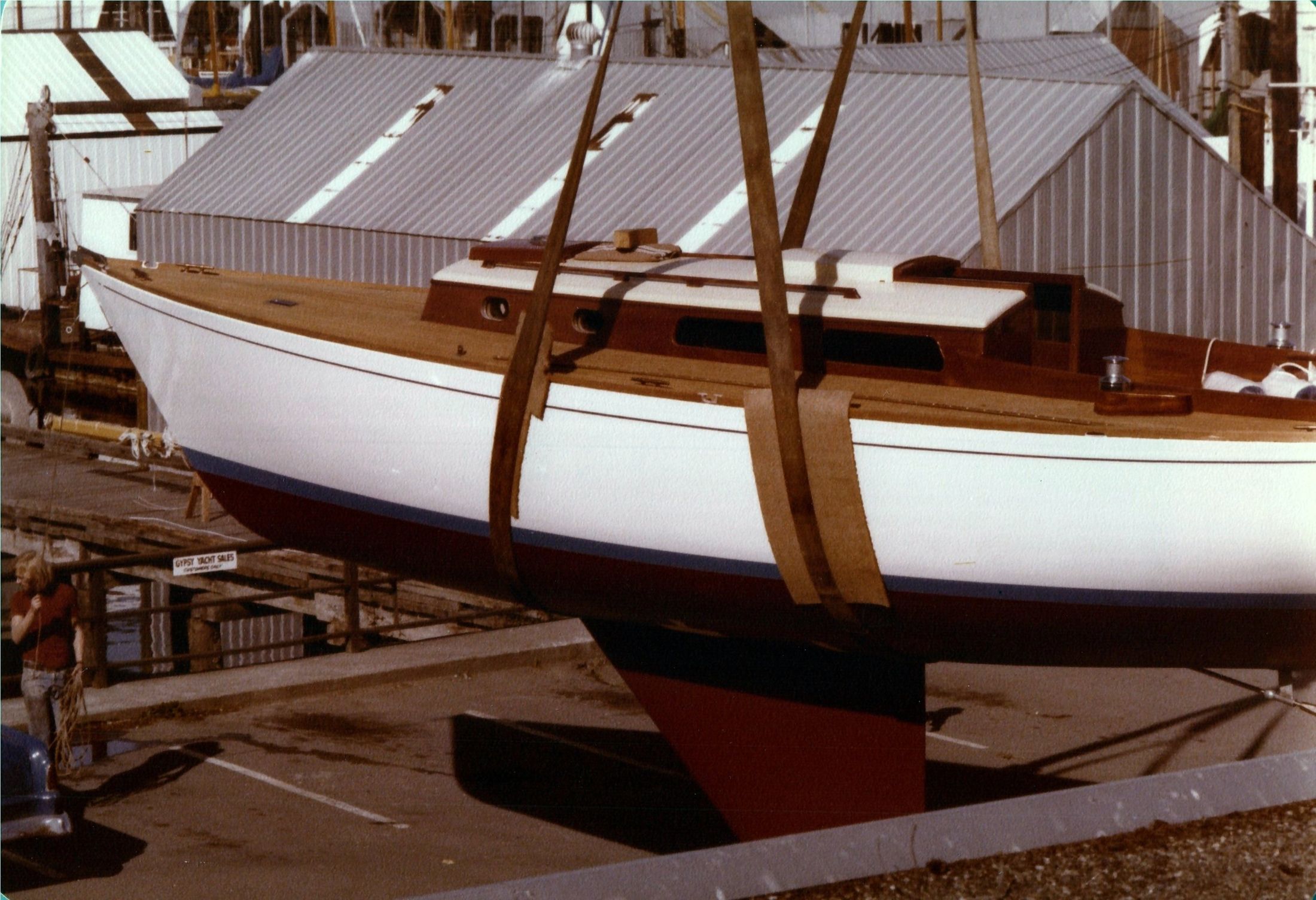

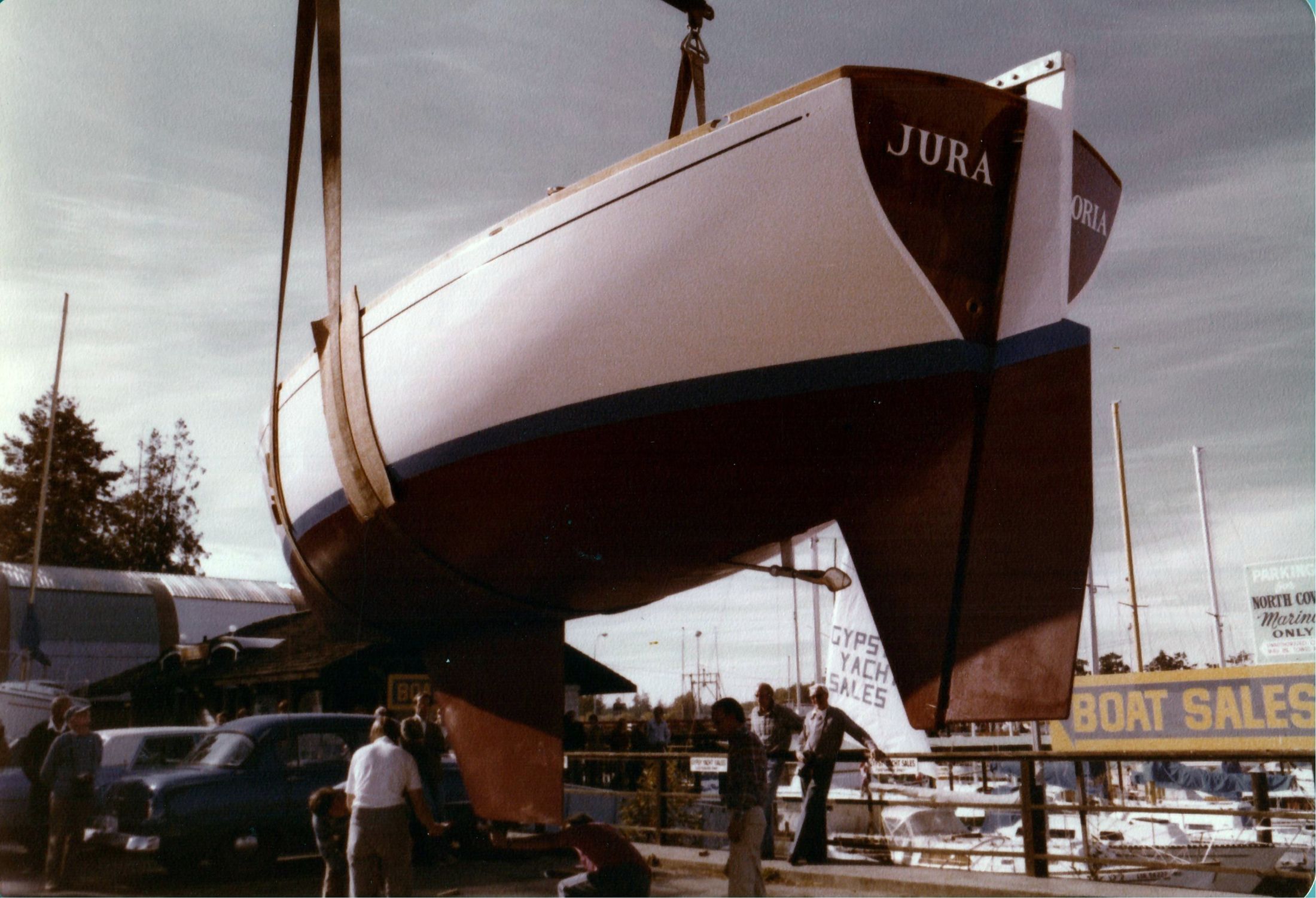

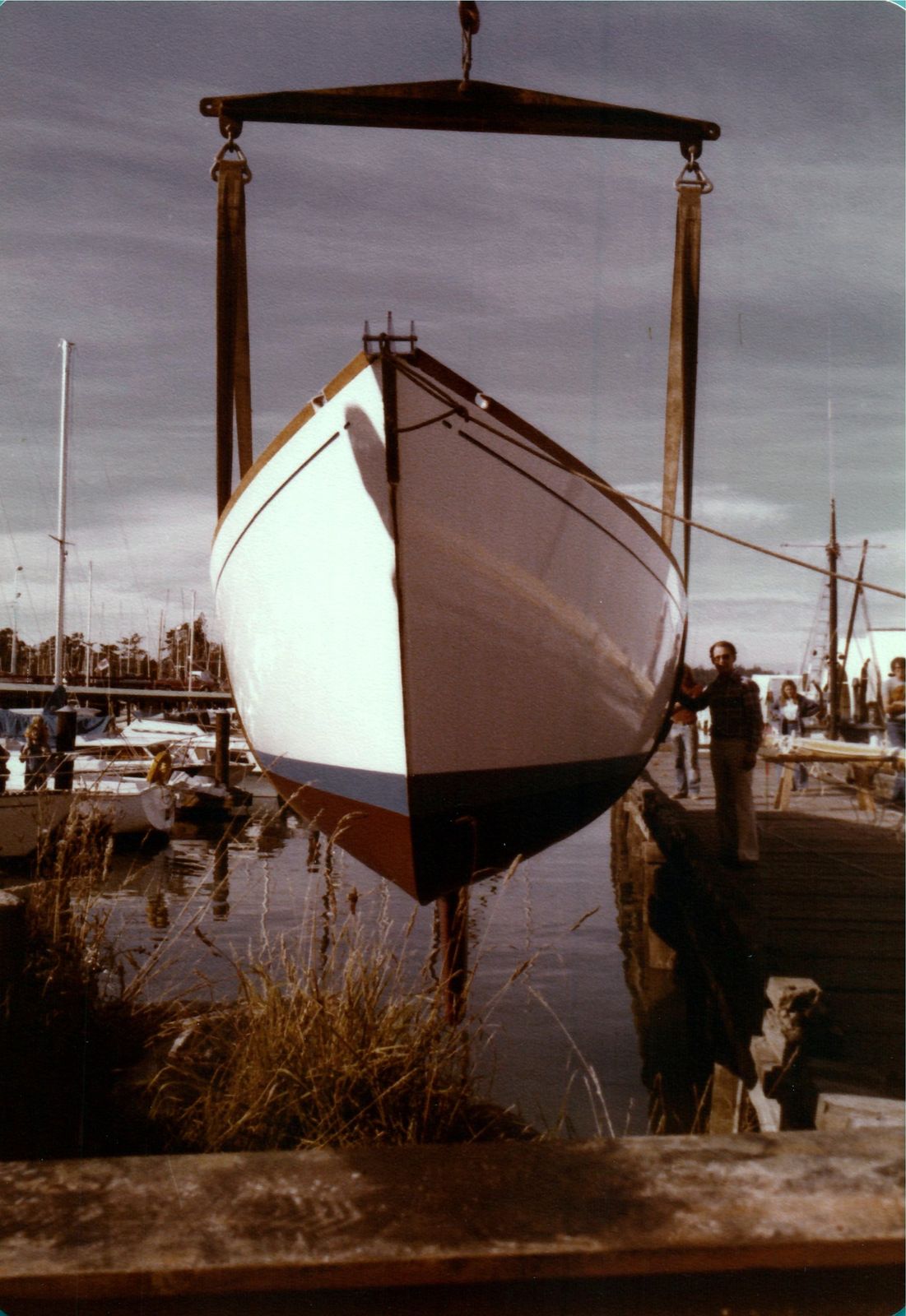

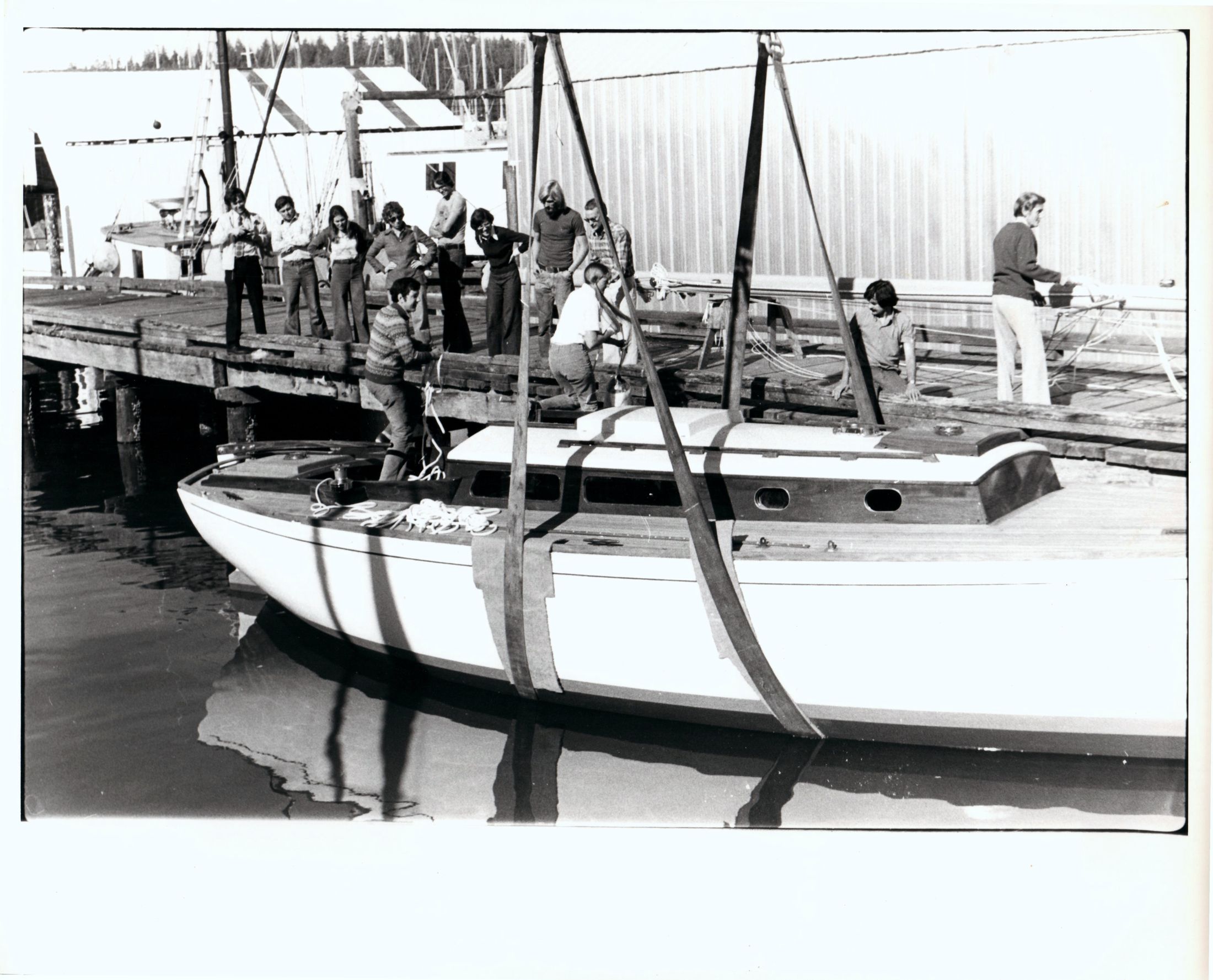

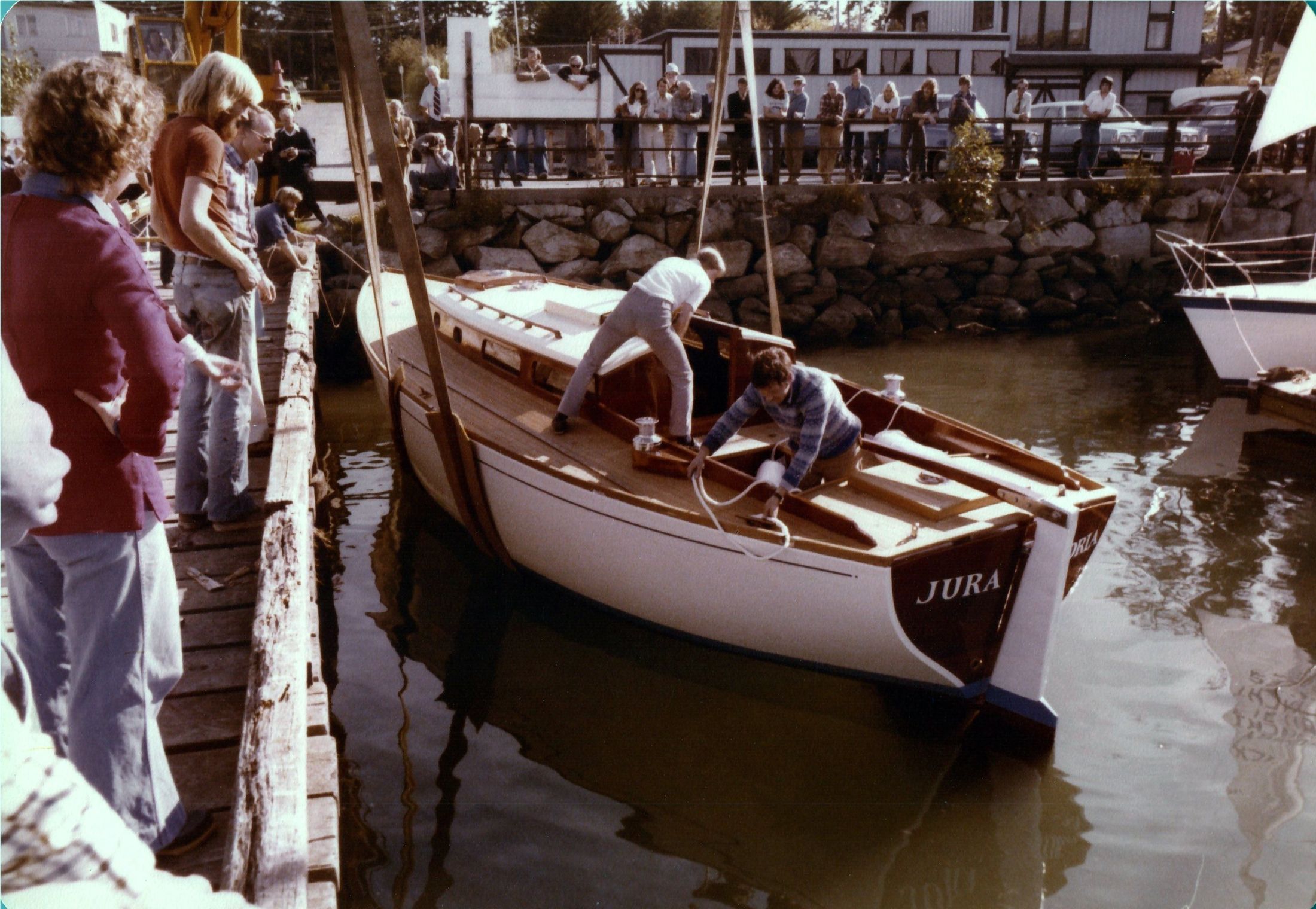

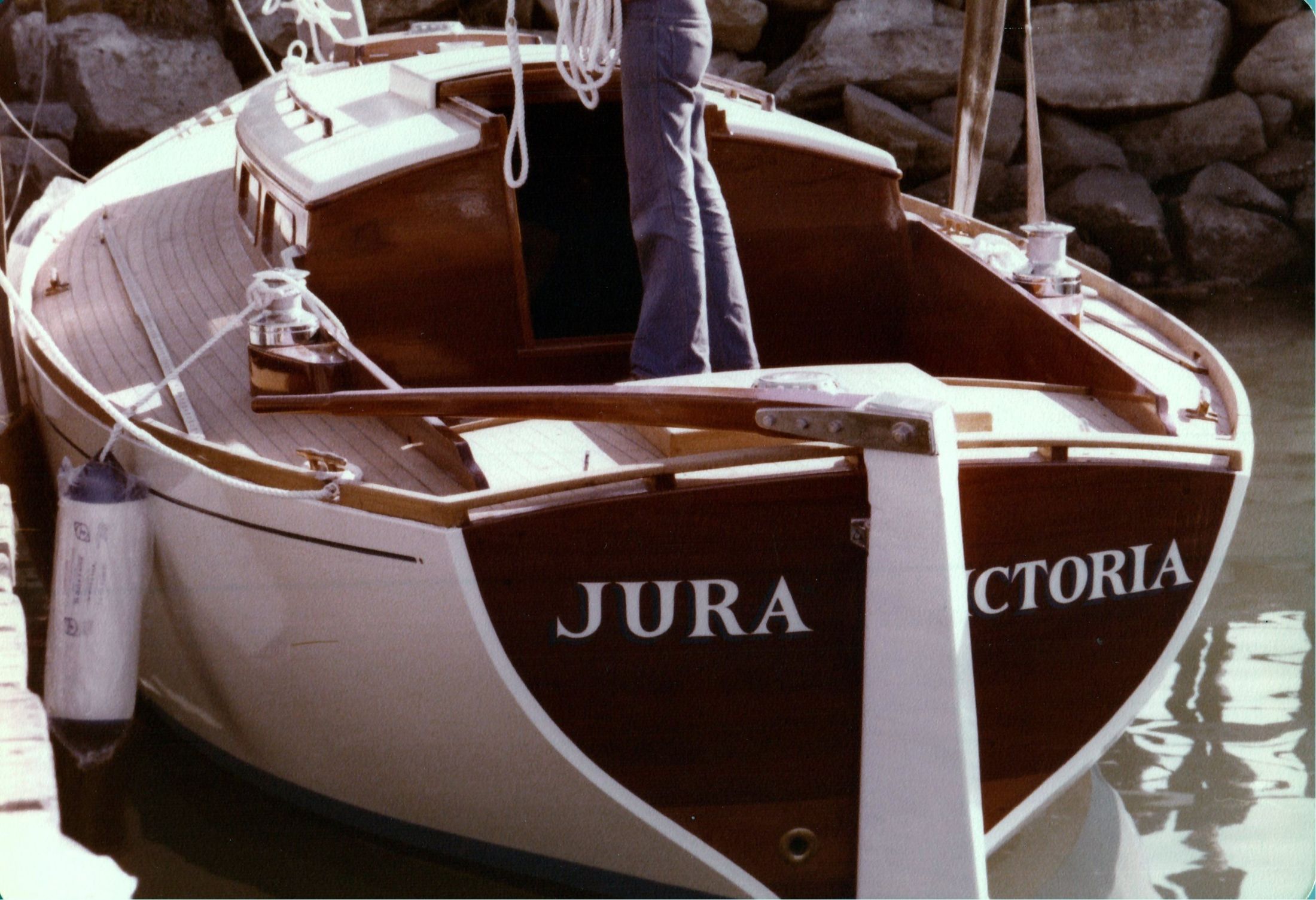

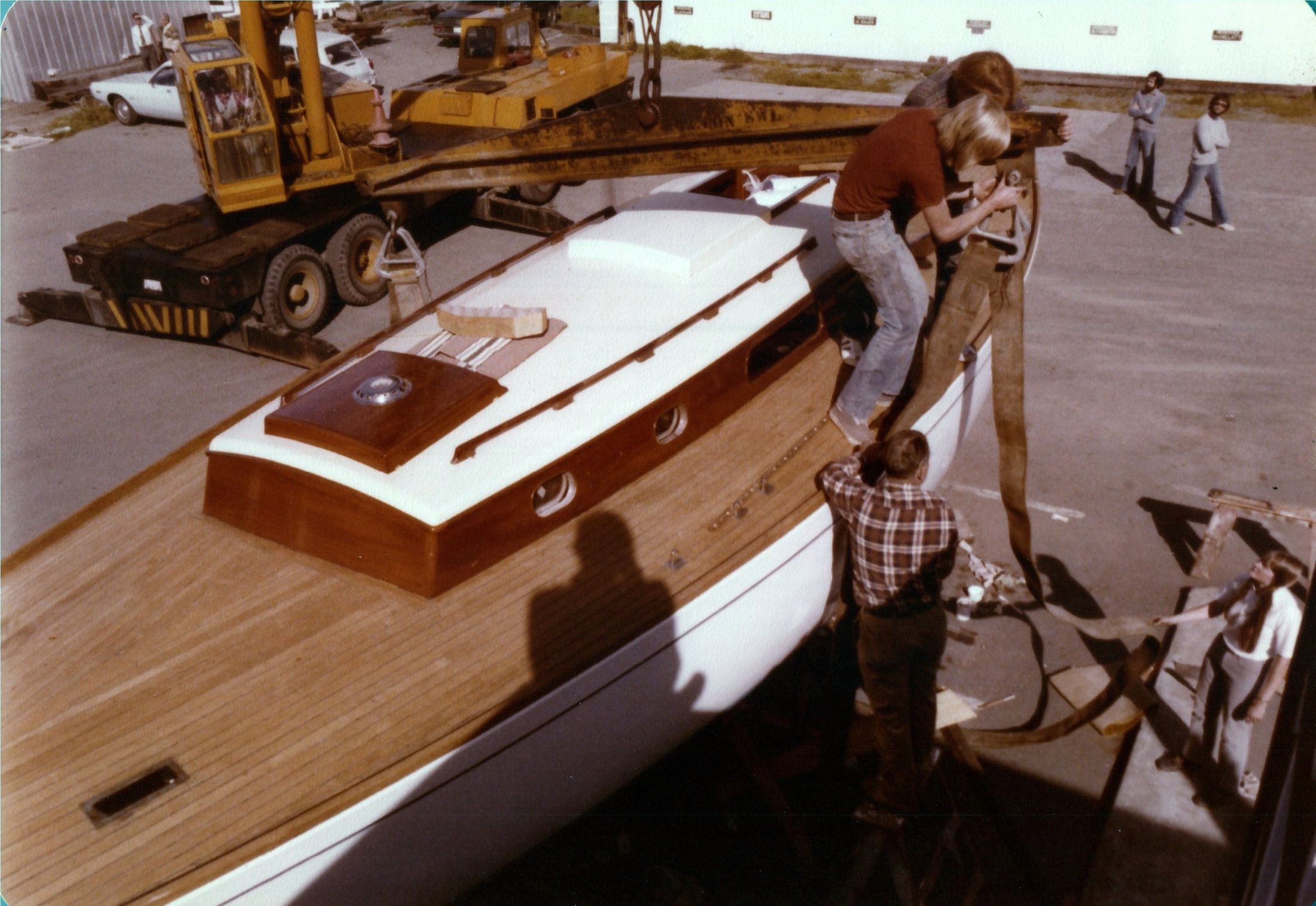

Jura in crane slings at the yard, the name on the transom — Plate 76

The transom, JURA VICTORIA, above the crane truck — Plate 77

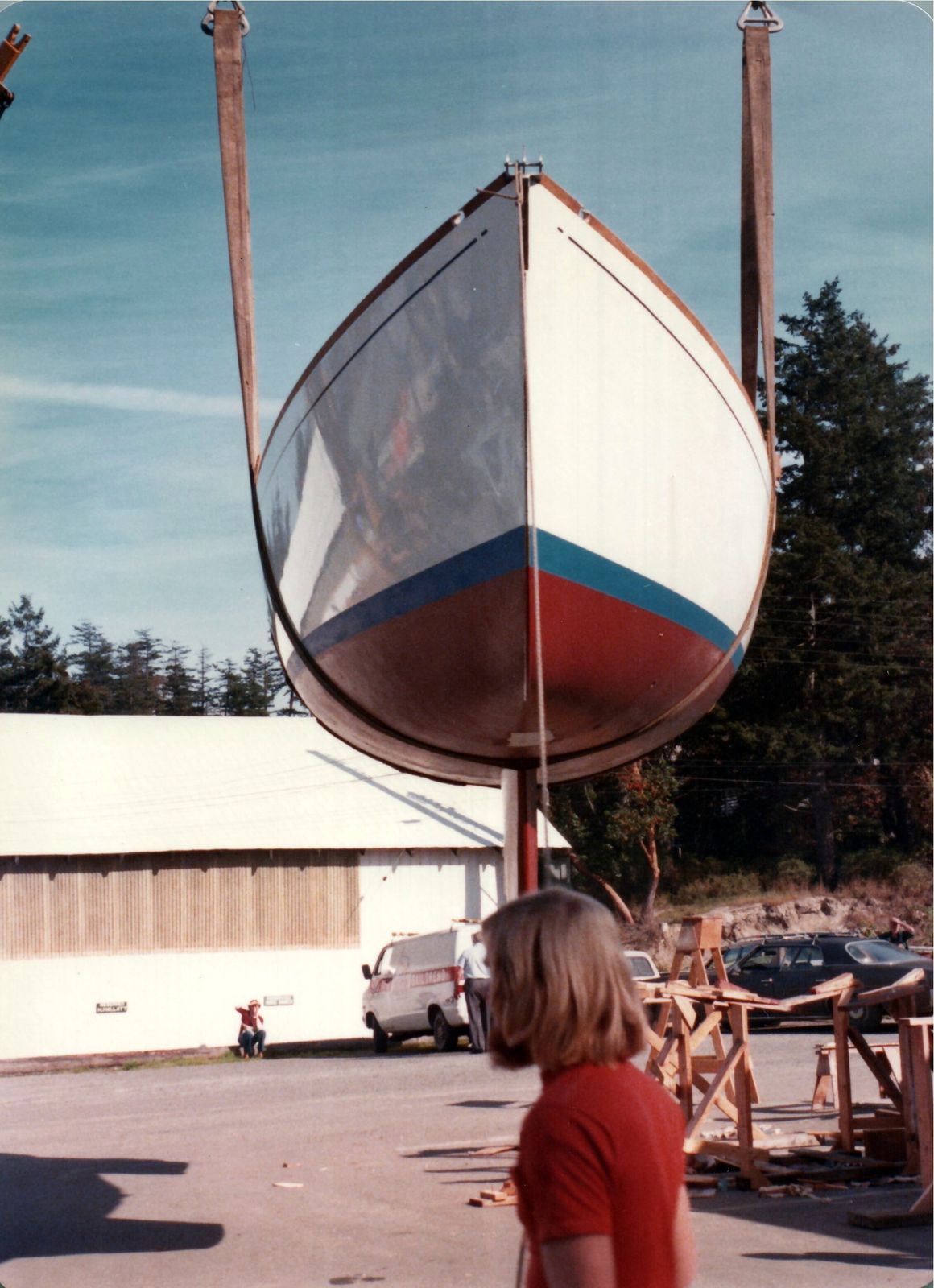

The hull hanging from the crane, a woman in red looking up — Plate 78

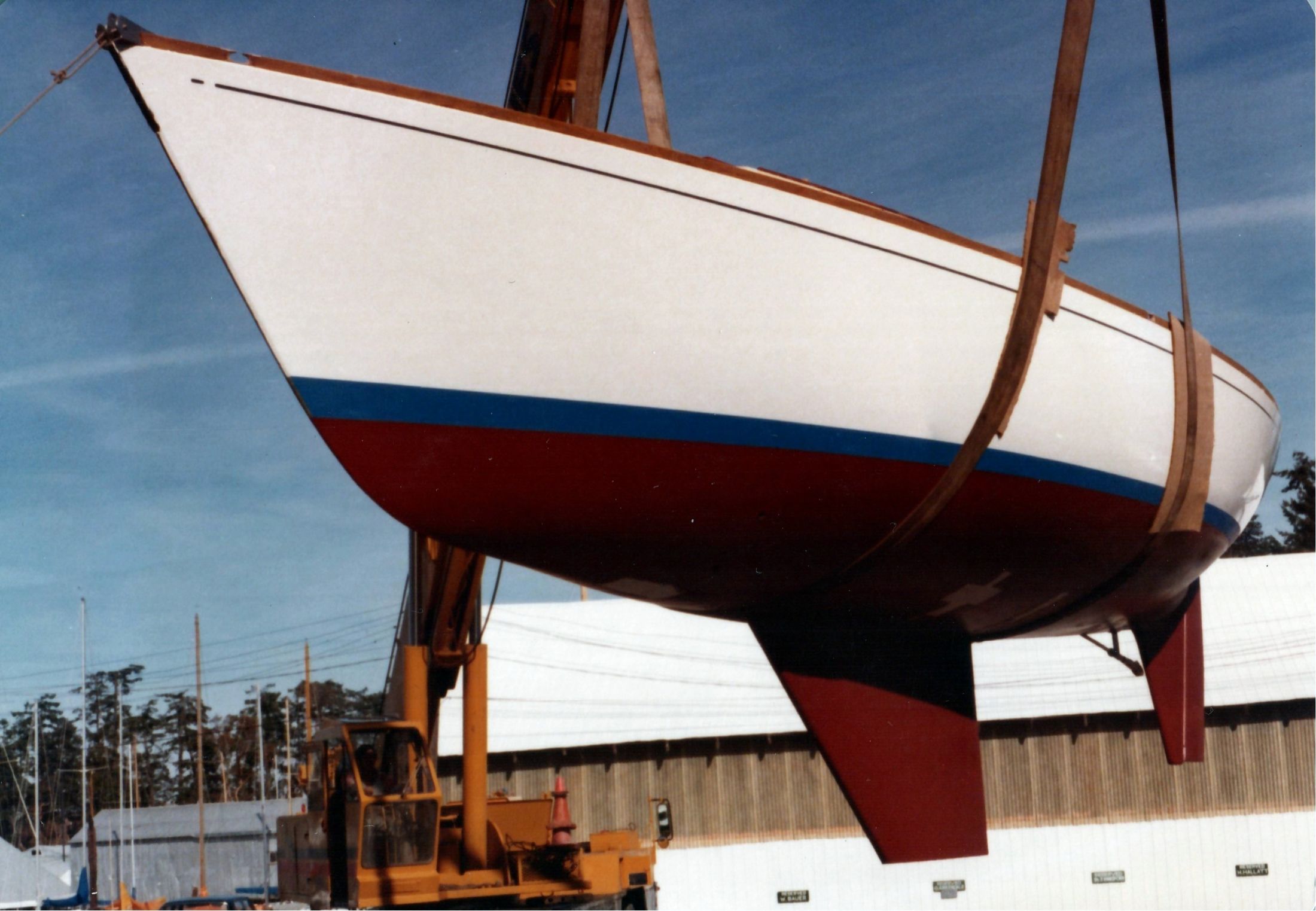

The hull in the slings against a bright sky, the fin keel and rudder clear — Plate 79

Black and white: the hull swinging from the Mutual Cranes boom over the marina — Plate 80

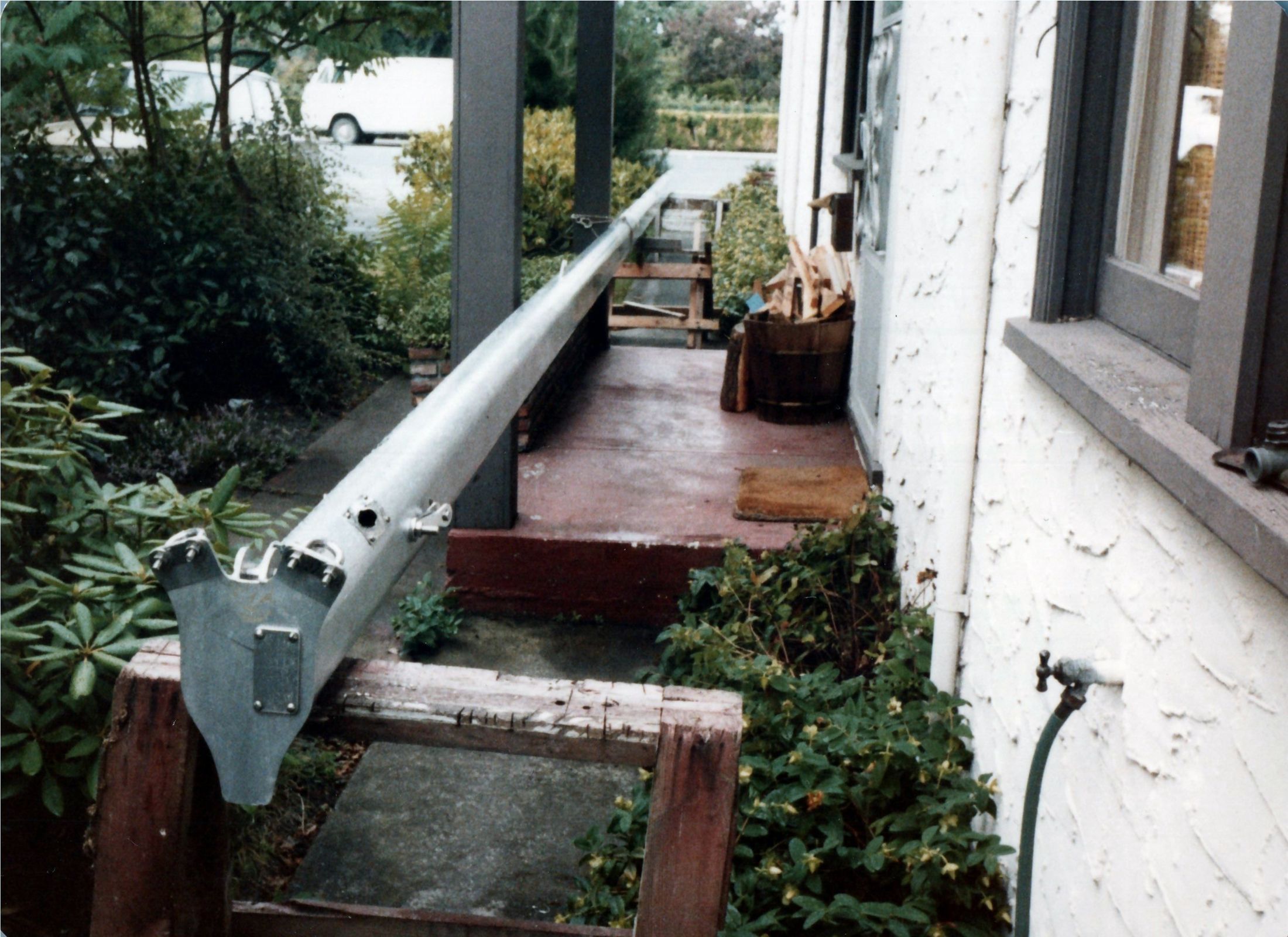

The mast lying beside a house, the foot at the camera — Plate 81

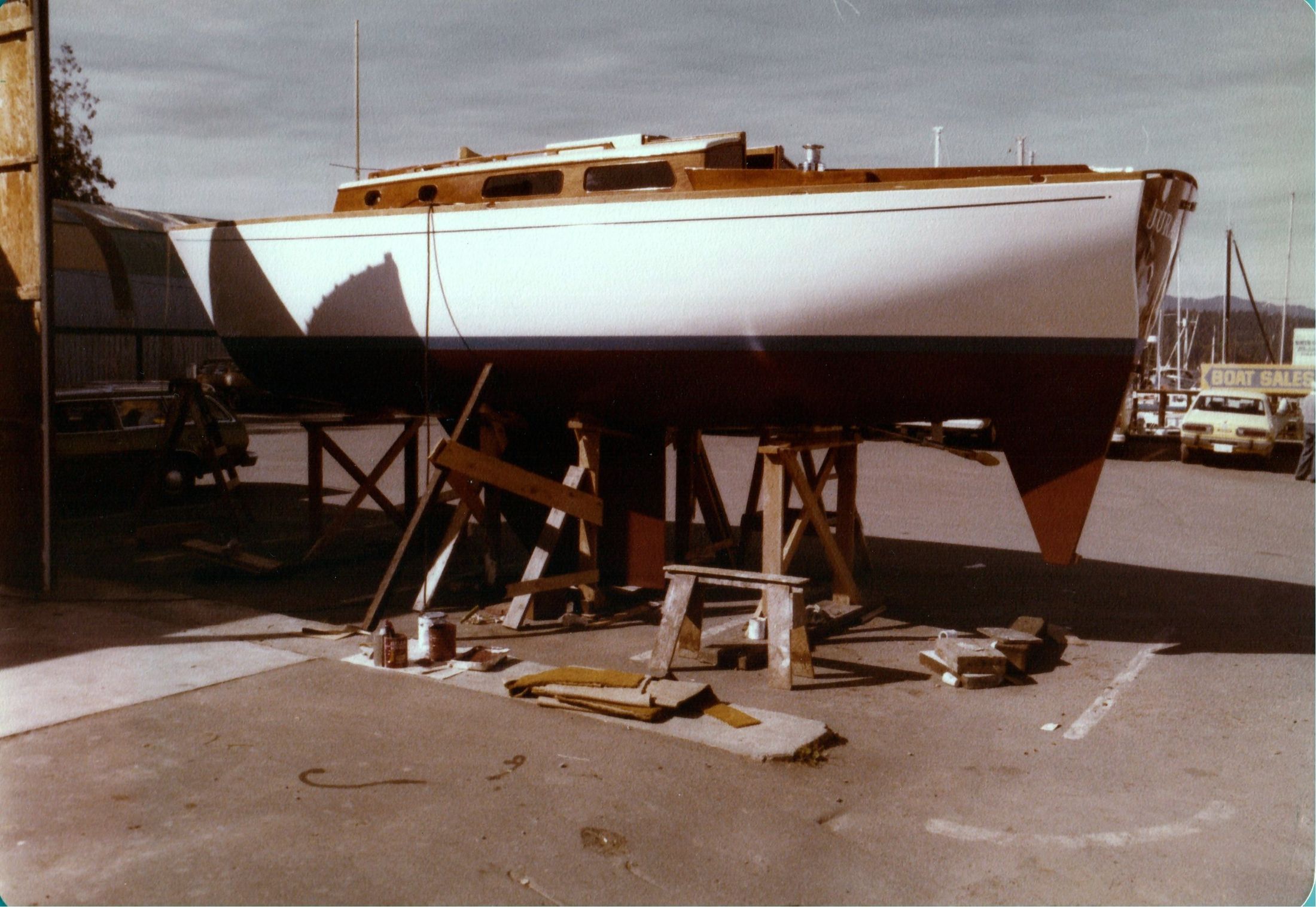

The boat on cradles in the yard, cabin and deck finished — Plate 82

The boat on cradles, JURA on the transom, a car passing — Plate 83

From the foredeck: the crane, the teak deck and the varnished coach house — Plate 84

The bow from below, hanging in the slings above the water — Plate 85

Jura in the slings beside the boathouse, the mast not yet stepped — Plate 86

Items 48, 52, 53, 54 · Plates 87–100

Launch

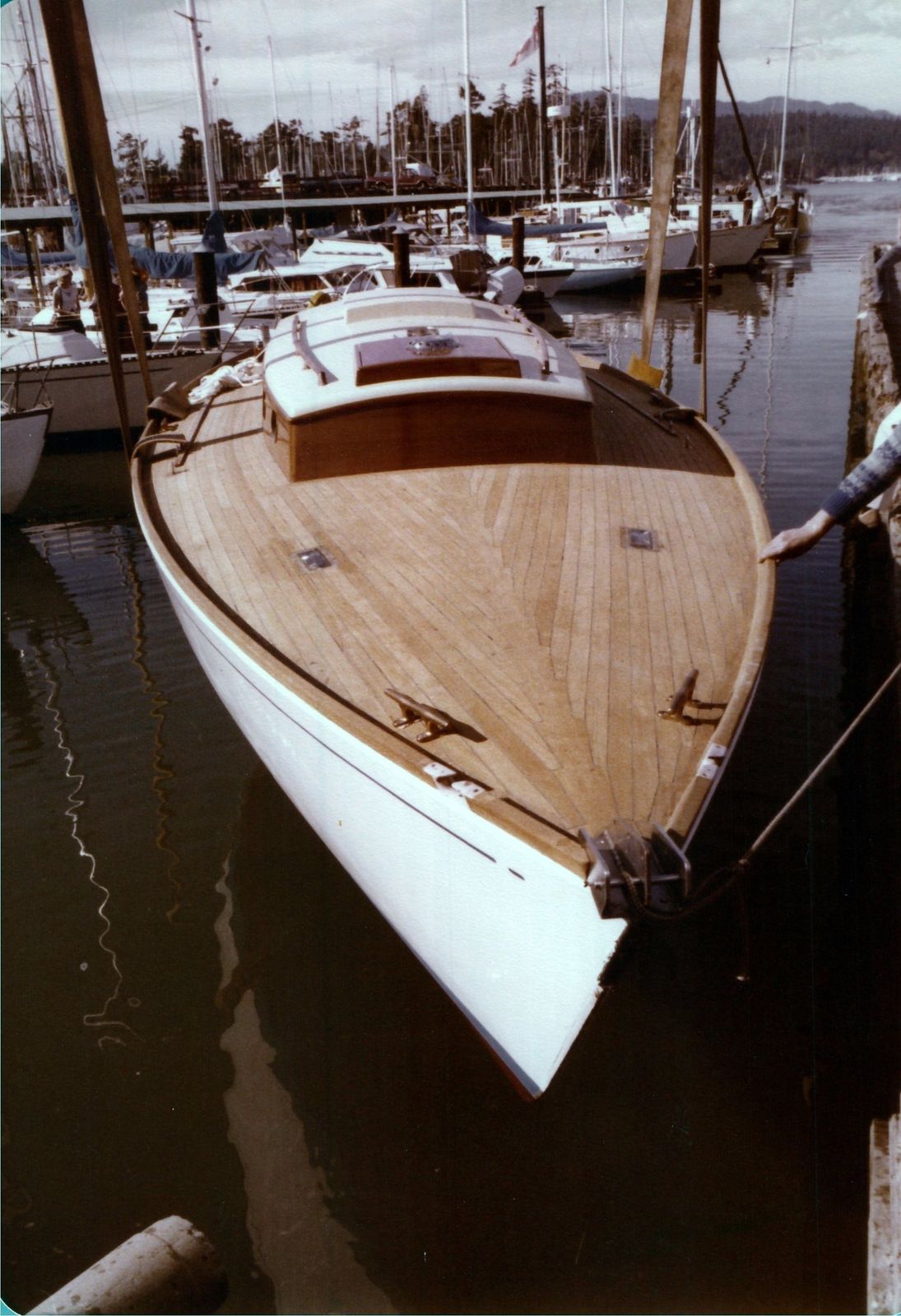

Jura afloat for the first time, from the bow — Plate 88

Champagne breaking over the bow — Plate 89

A man in a blue sweater laughing on the dock beside the bow — Plate 90

Black and white: Jura alongside the dock, people on the float — Plate 91

The stern at the dock, JURA lettered on the transom — Plate 92

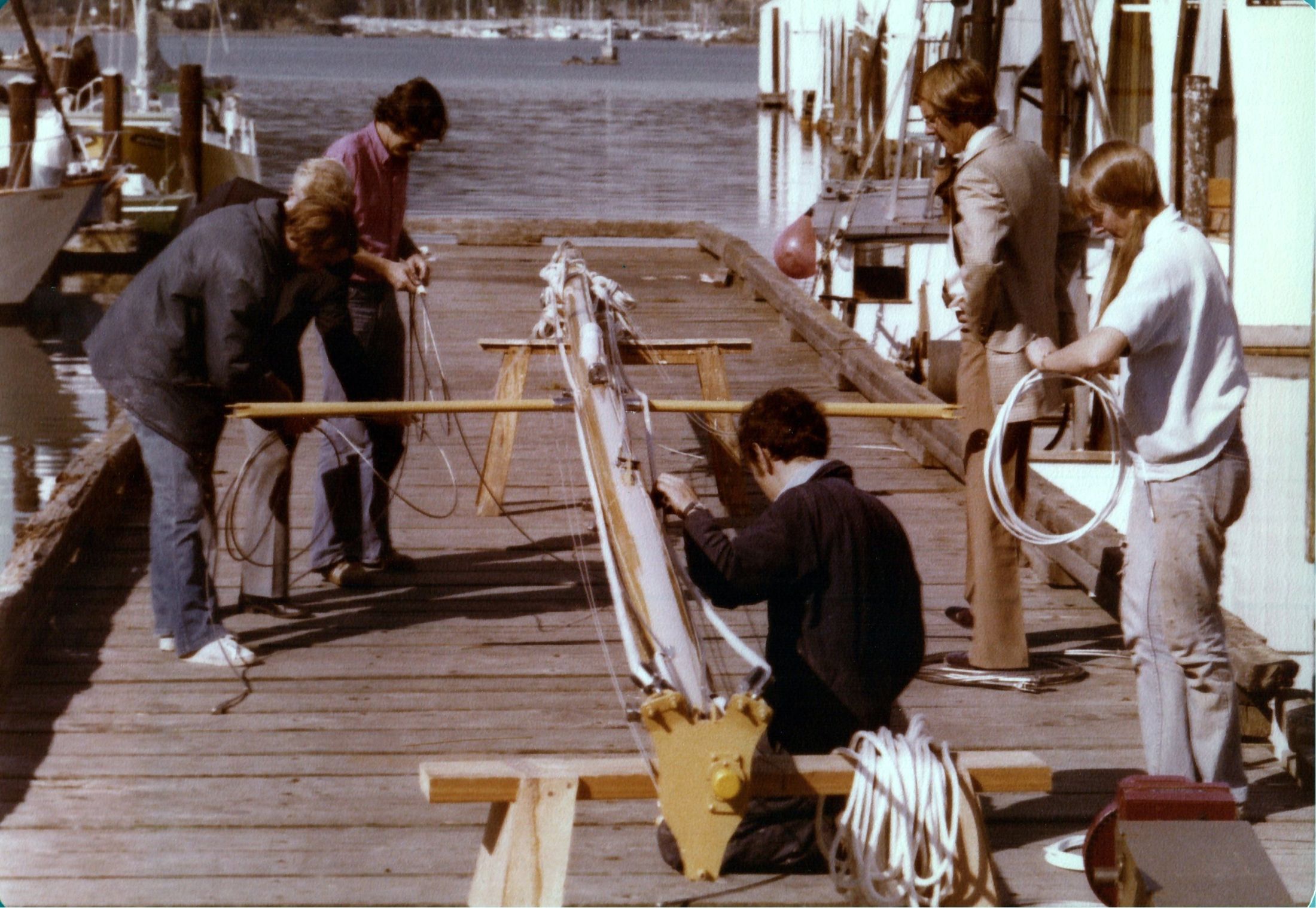

Rigging the mast on the dock, four people at the spreaders — Plate 93

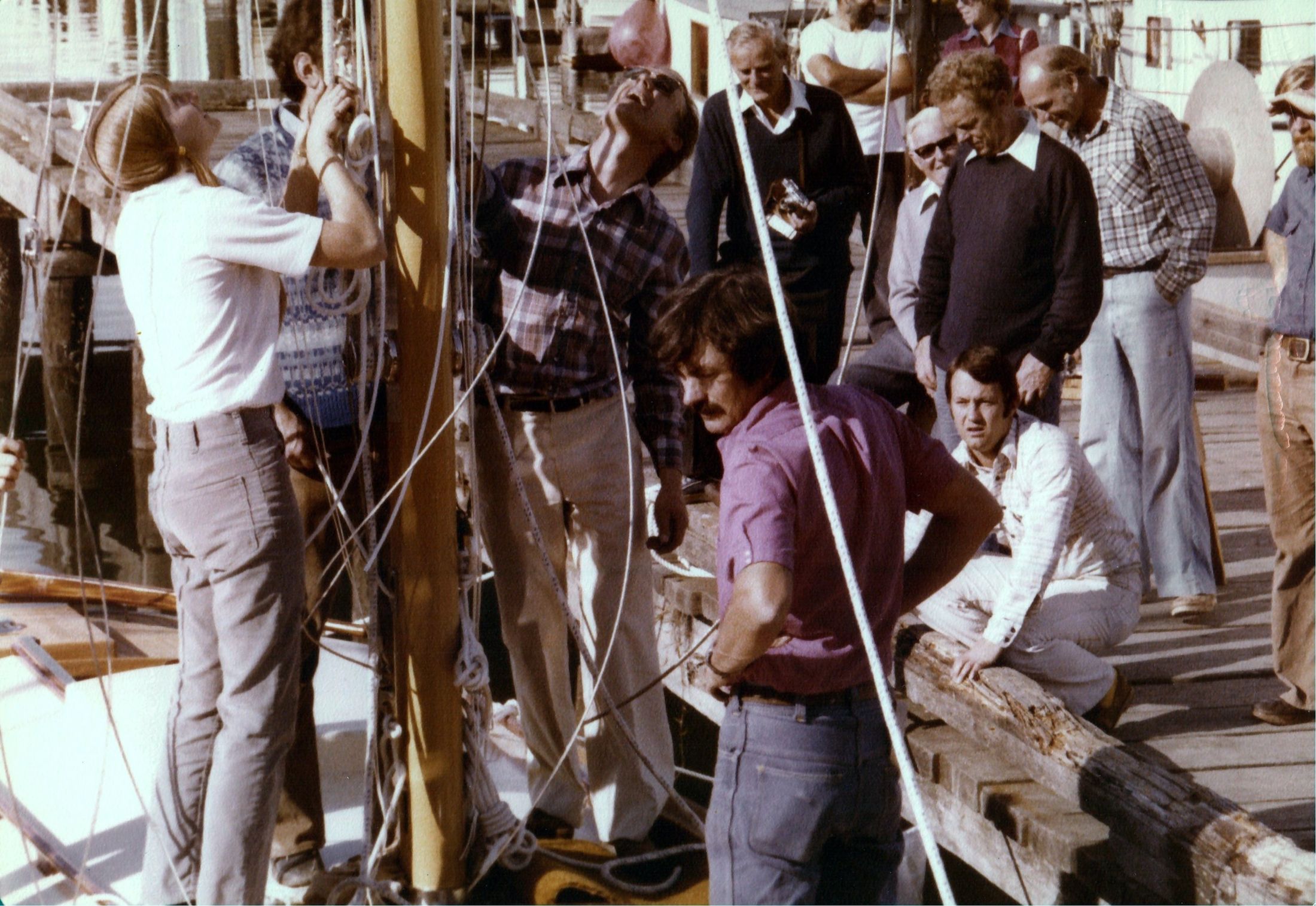

Stepping the mast, a crowd of hands at the foot — Plate 95

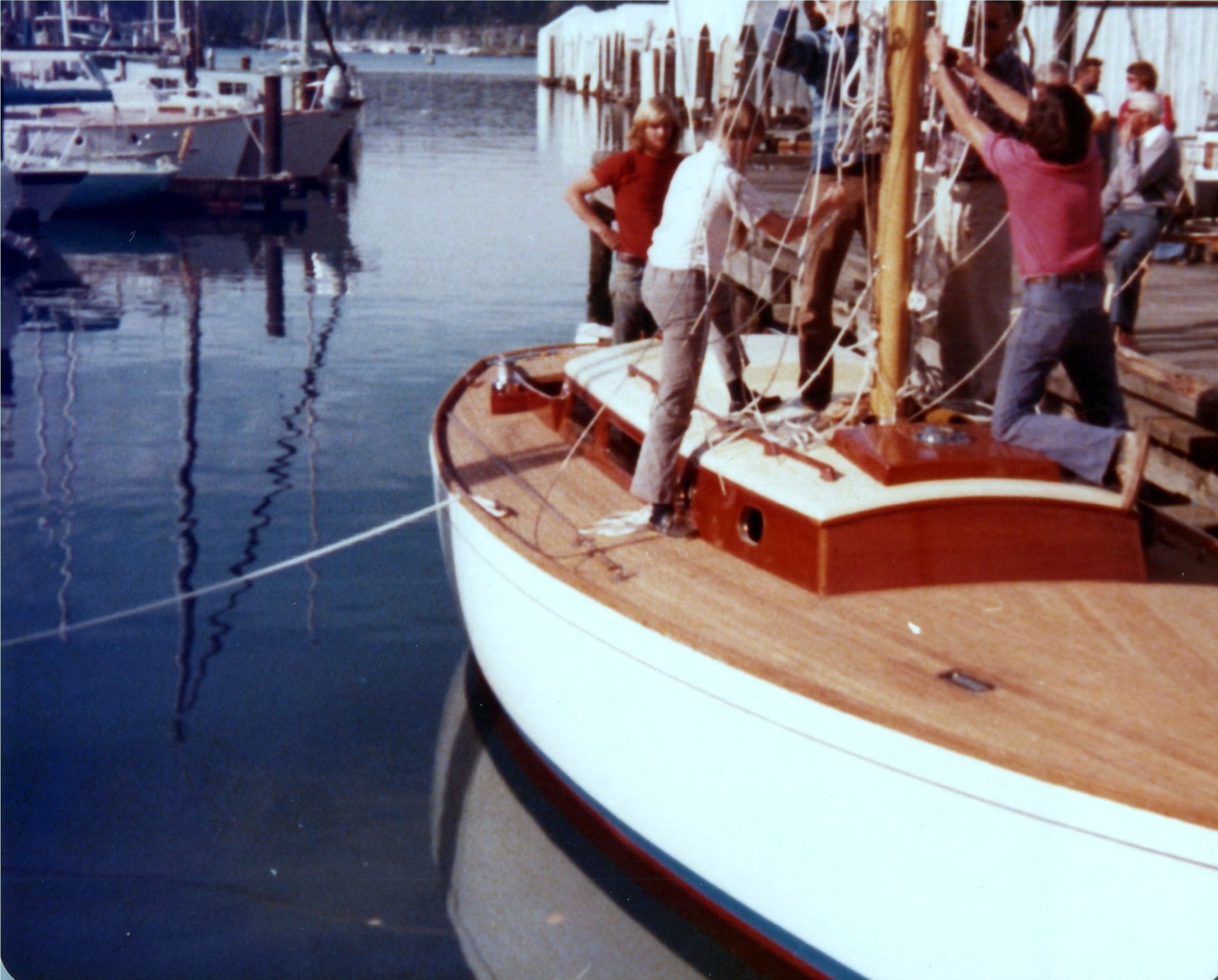

The mast up, men on deck, the boathouses across the water — Plate 96

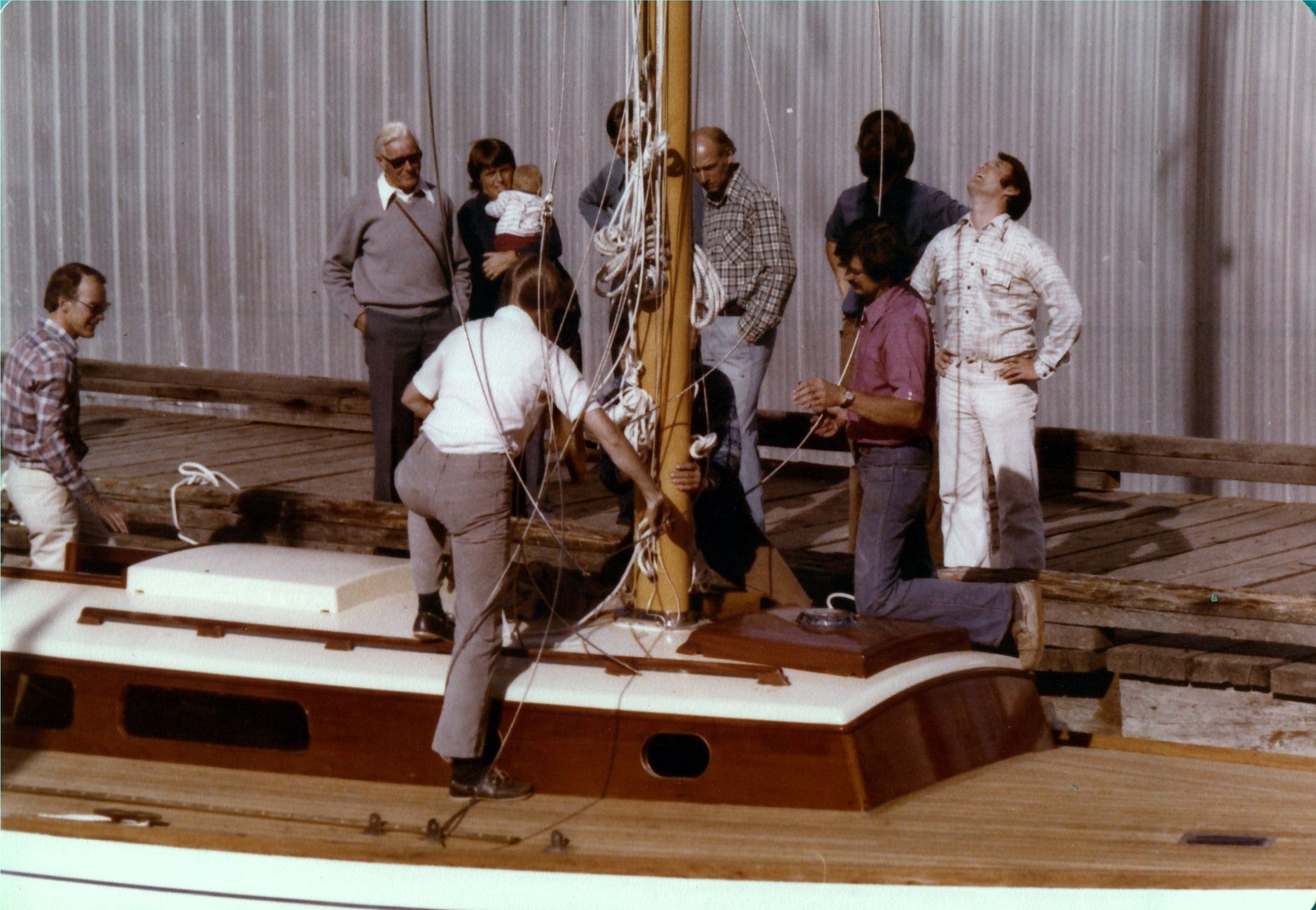

The rigging crew on the dock beside the mast — Plate 97

The transom: JURA VICTORIA in gold on varnished mahogany — Plate 98

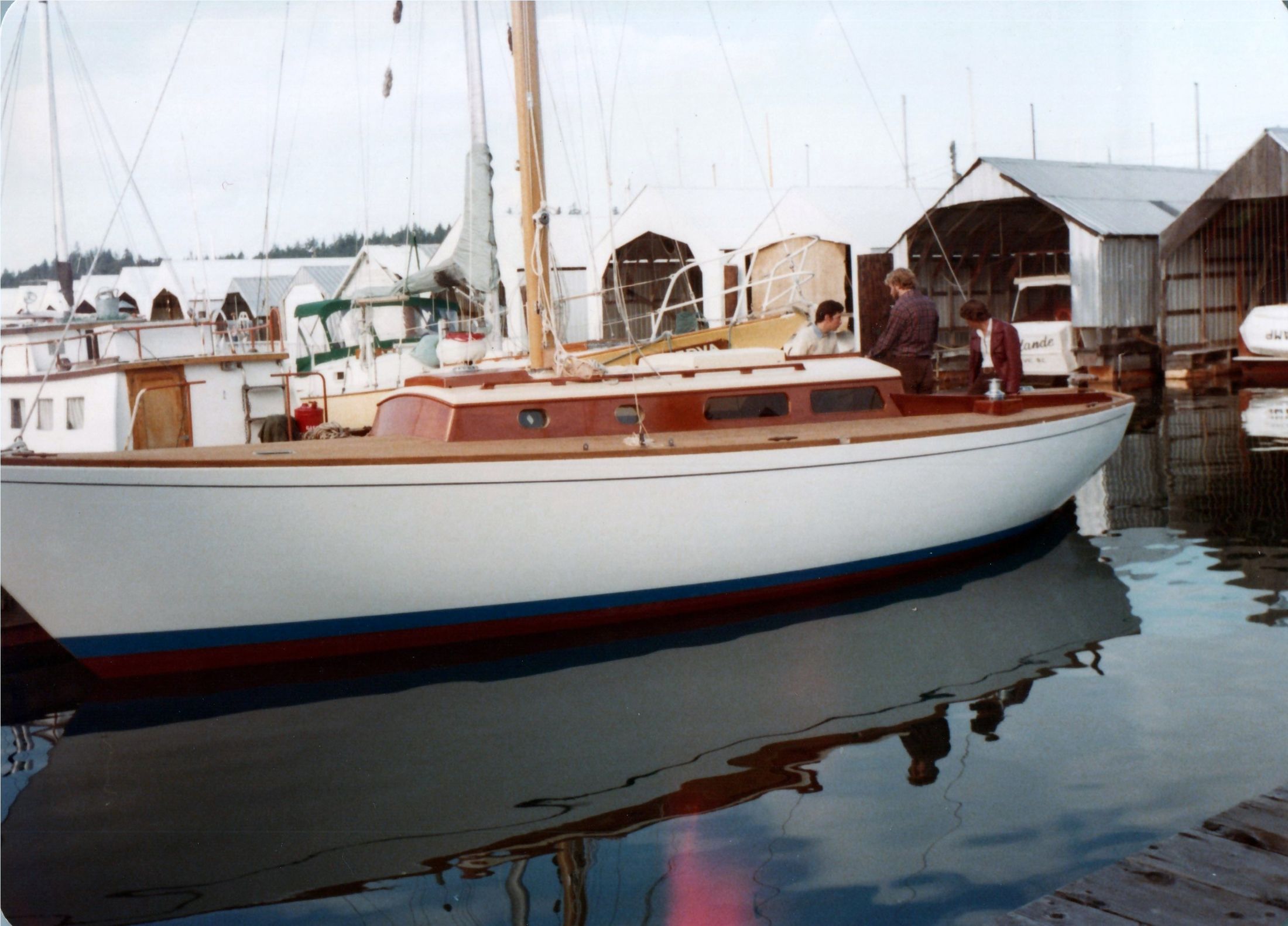

Jura rigged and moored beside the boathouse — Plate 99

A man smiling at the launch party — Plate 100

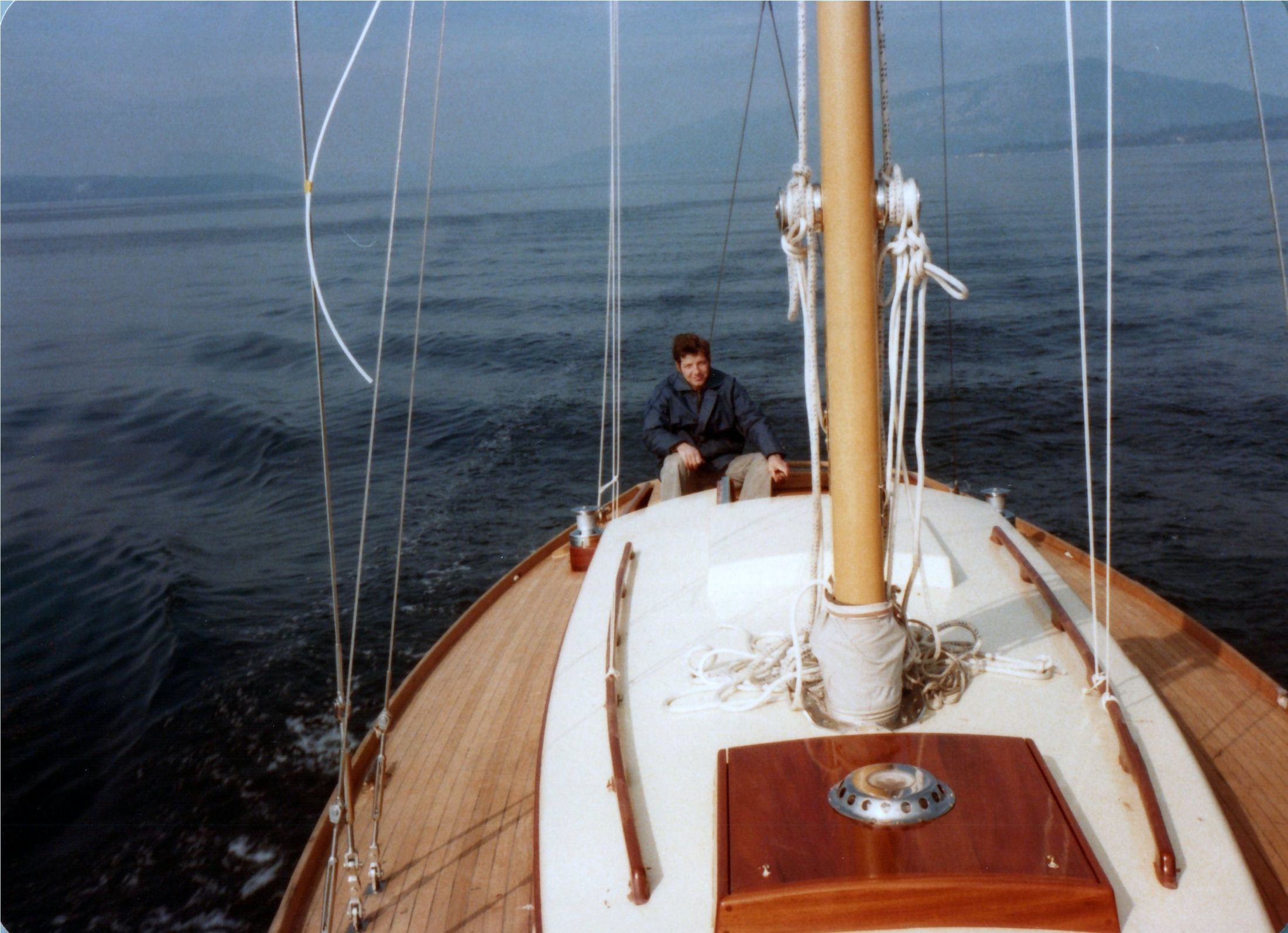

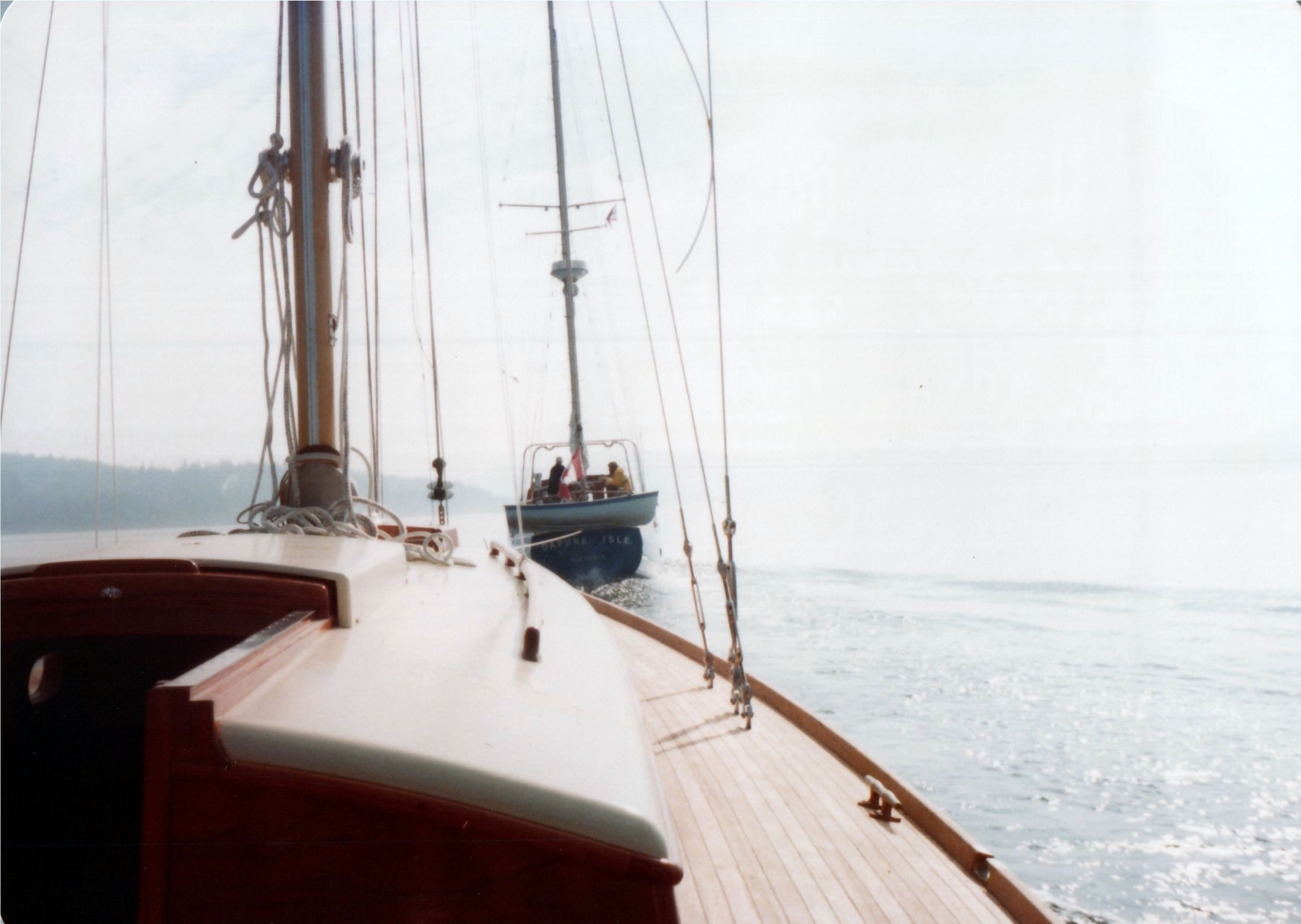

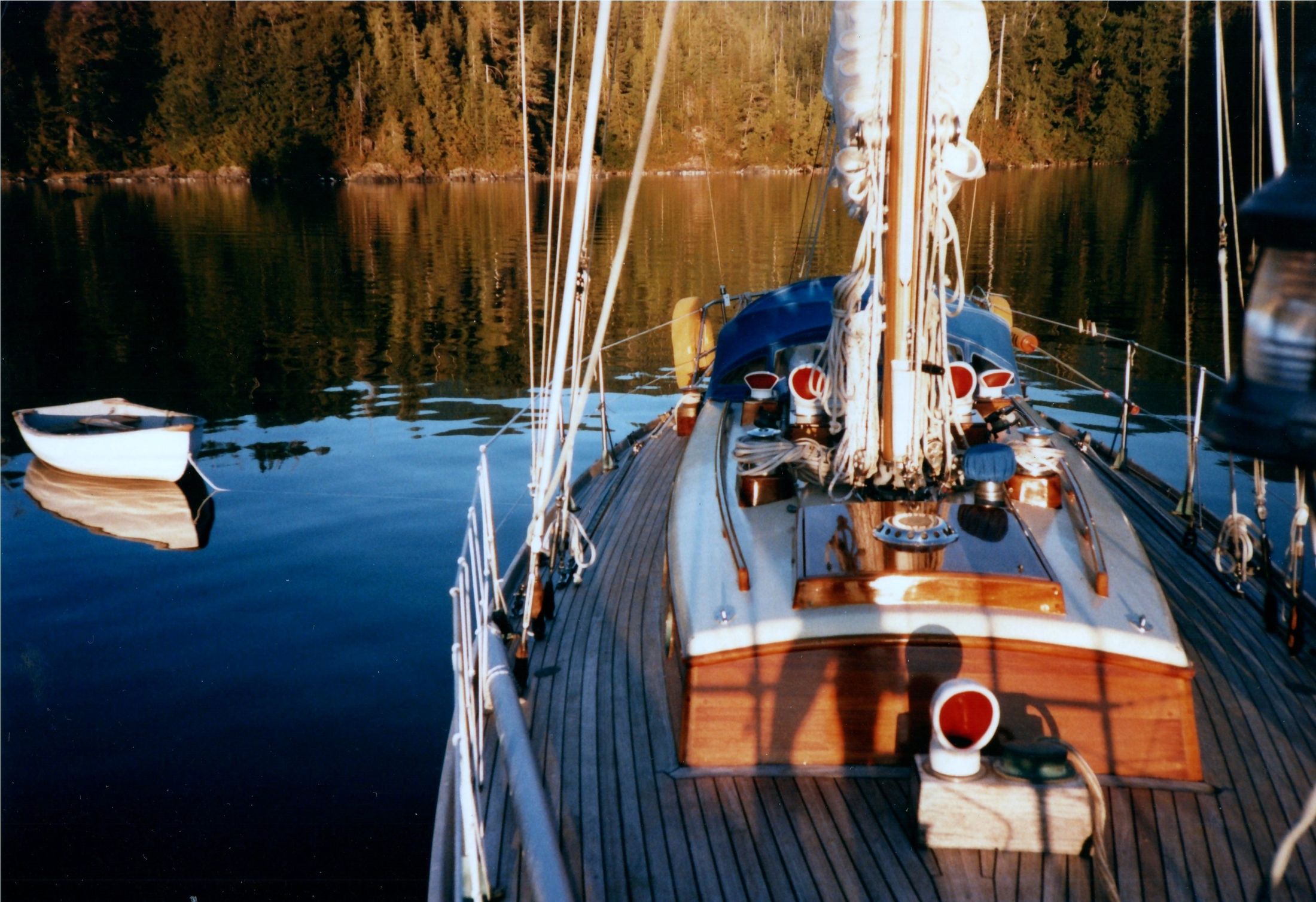

Items 58, 59 · Plates 101–108

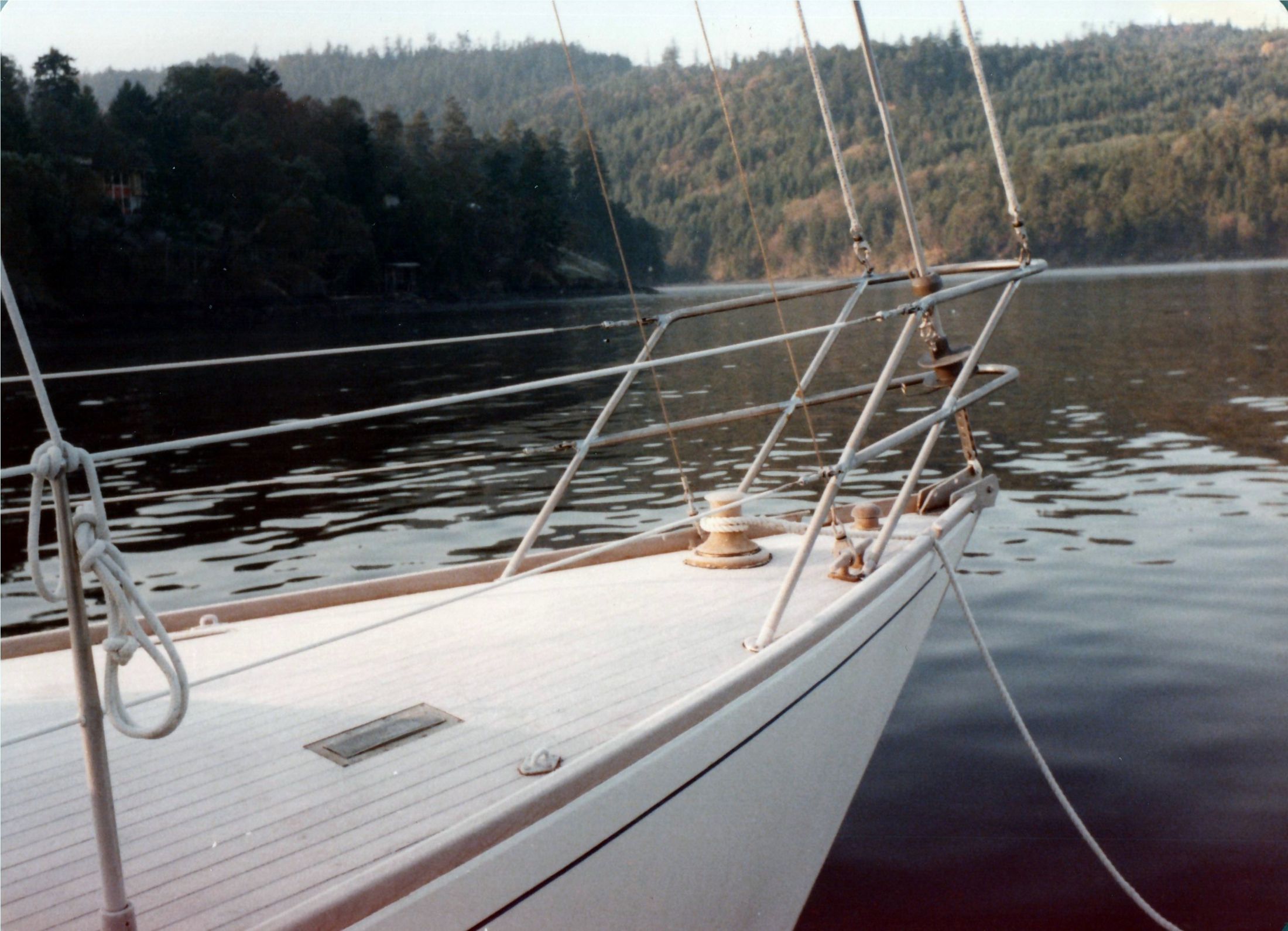

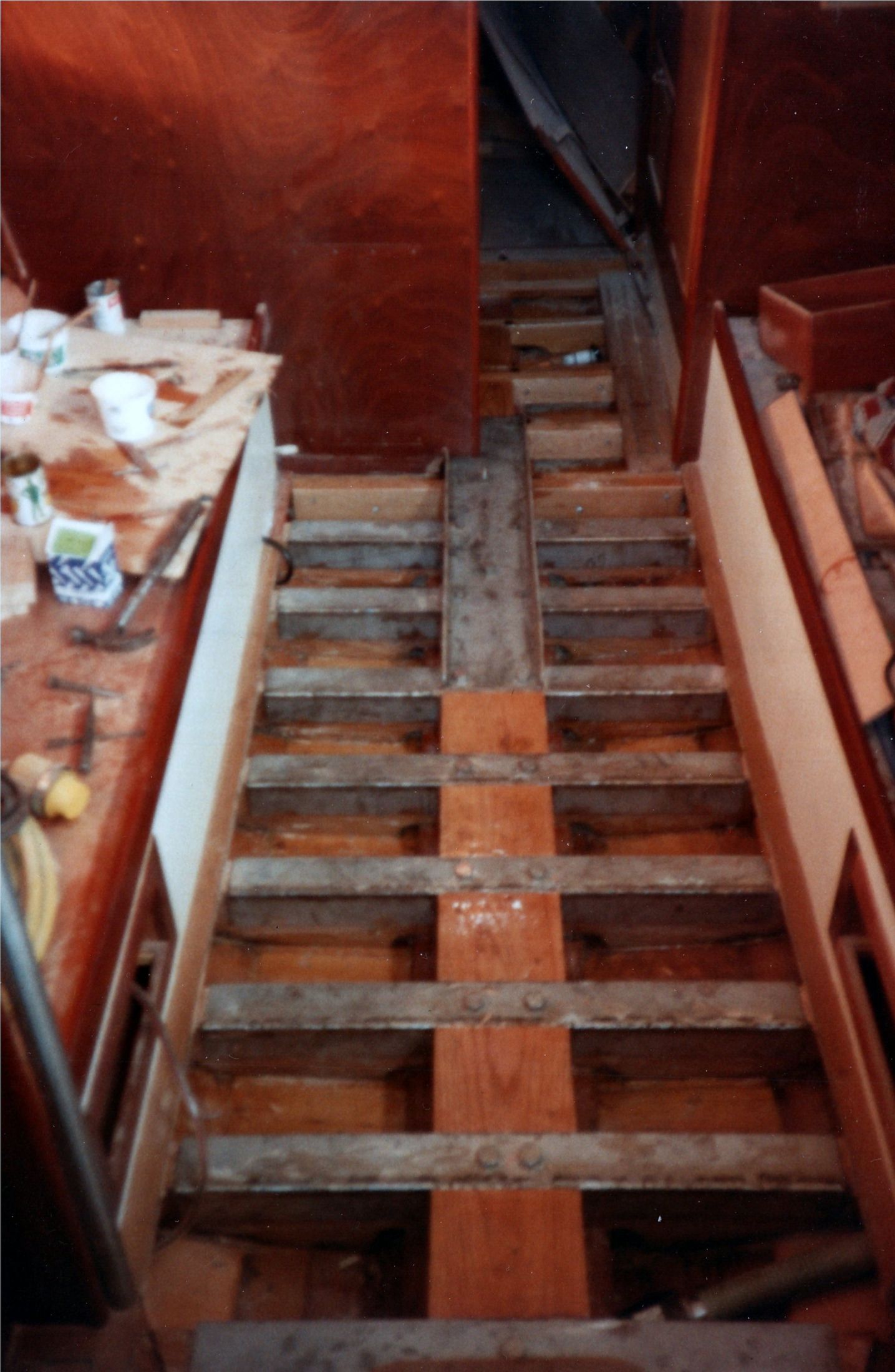

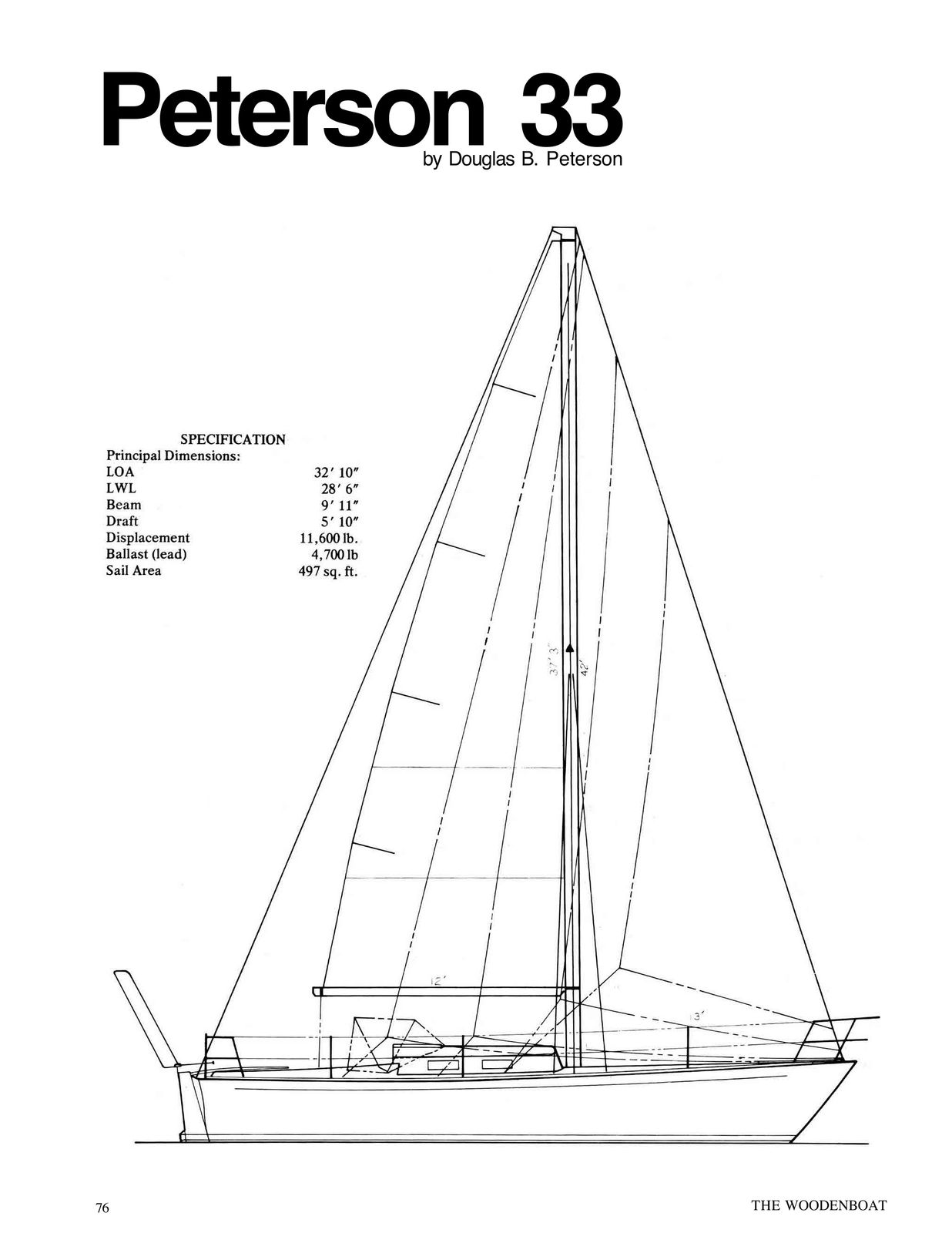

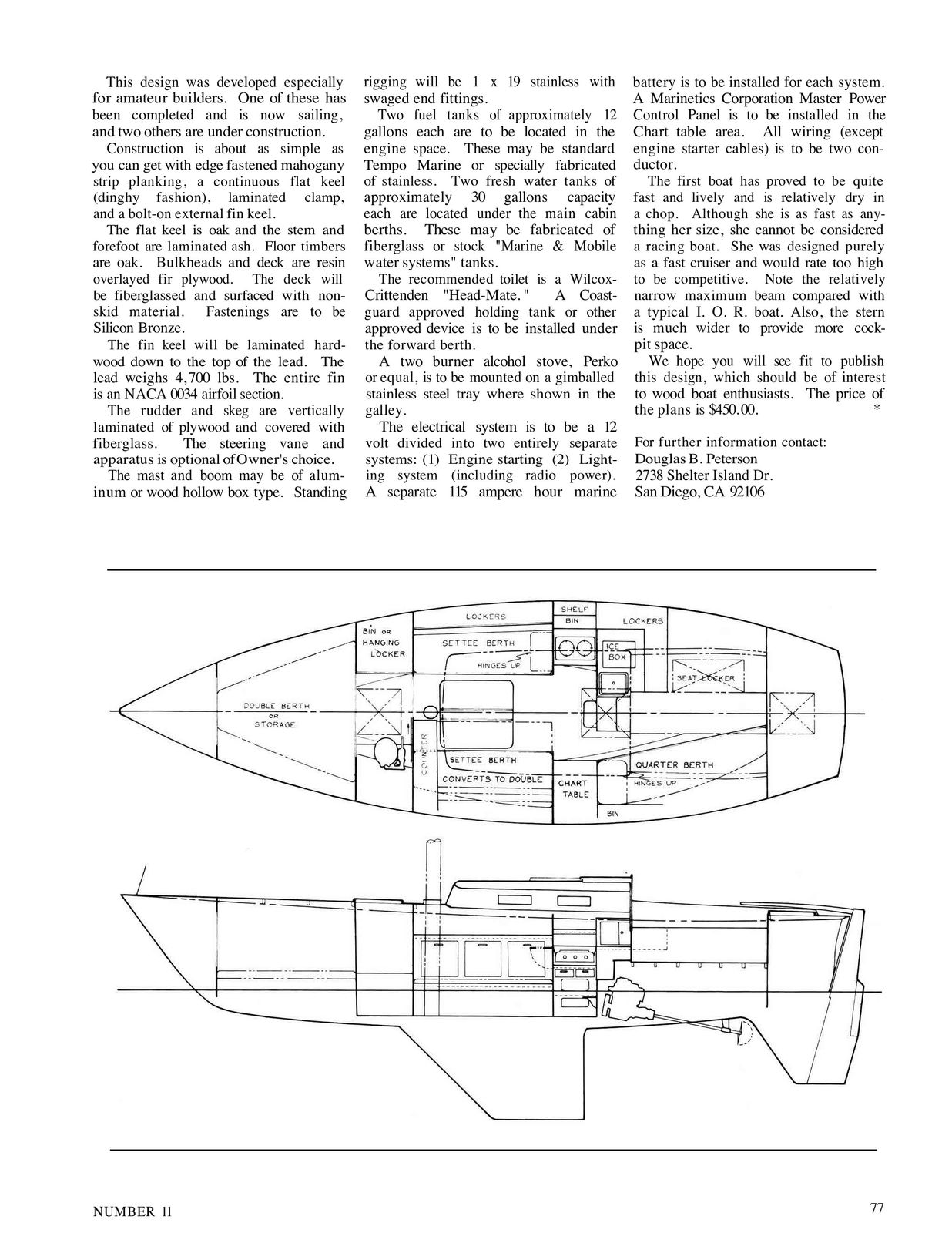

Design	Peterson 33
Builder	Bent Jesperson, 10001 Fifth St., Sidney, B.C.
Owner	Kaspar Schibli, 1157 Newport Ave, Victoria, B.C.
Specification	December 12, 1977 · amendments 9/1/78
Launched	1978
